HOL-PB100
HOL-PB100 SDI ／ IP Gateway
□ HOL-PB100

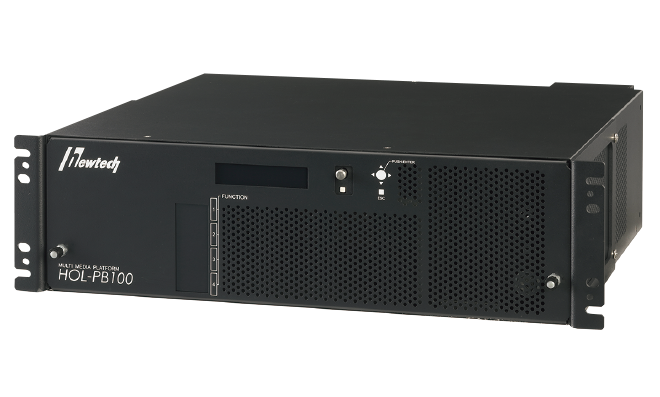

Front

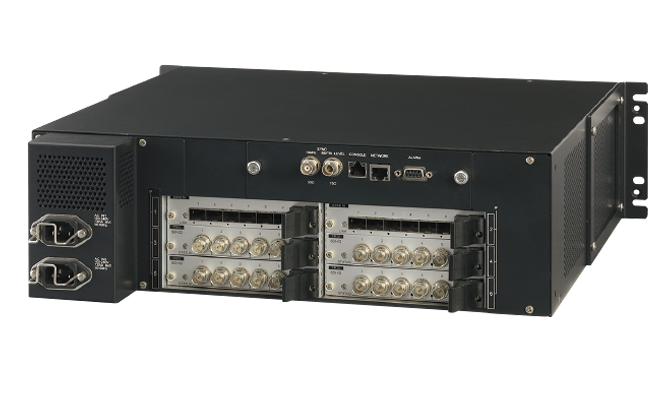

Rear
・4K/8K broadcast events
・Inter-station transmission
・Line centers
- 1Supports the following physical interfaces: SDI (SD to 12G) and IP (1G/10G).
- 2Supports a range of functions (H.265, TICO, and over IP) with the installation of function cards.
- 3Switching function provided as standard
- 4Flexibly supports a wide range of applications by allowing the combination of IF cards and function cards.
- 5Redundant power supply
- 6Hot-Swappable Cards

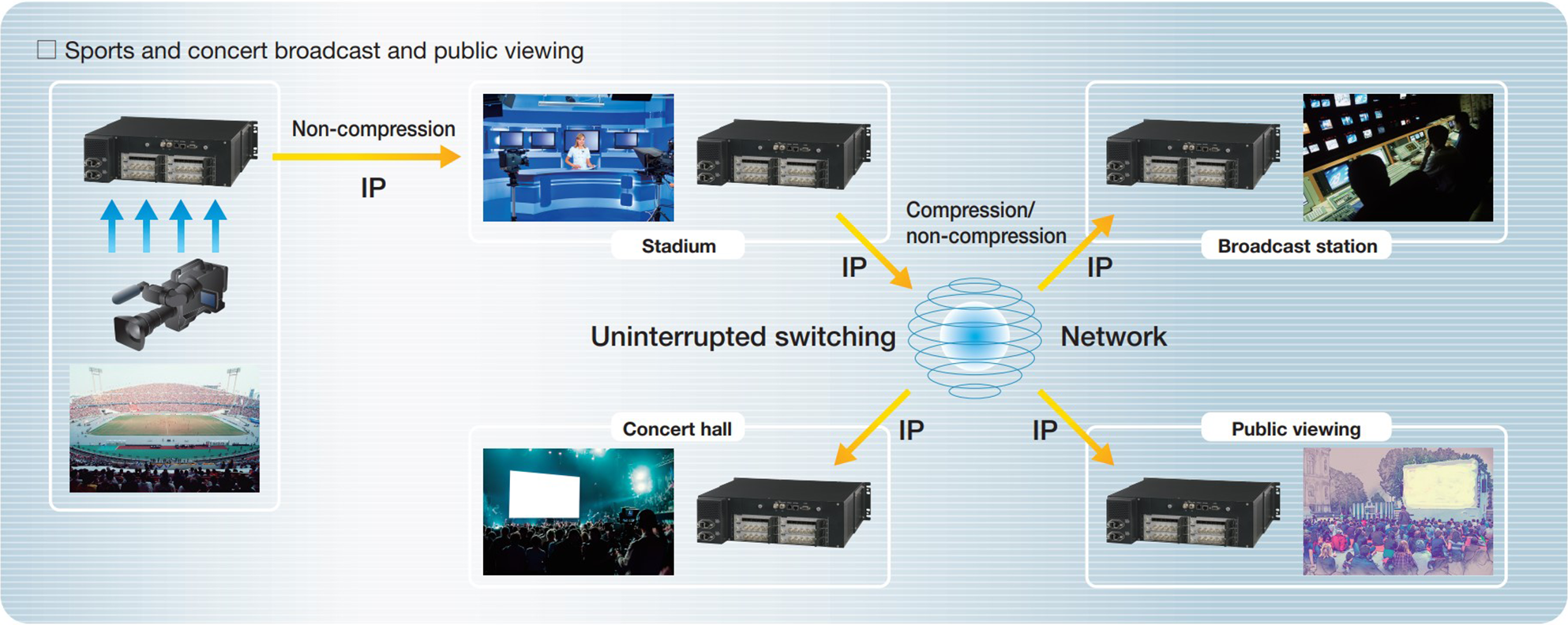

Configuration example

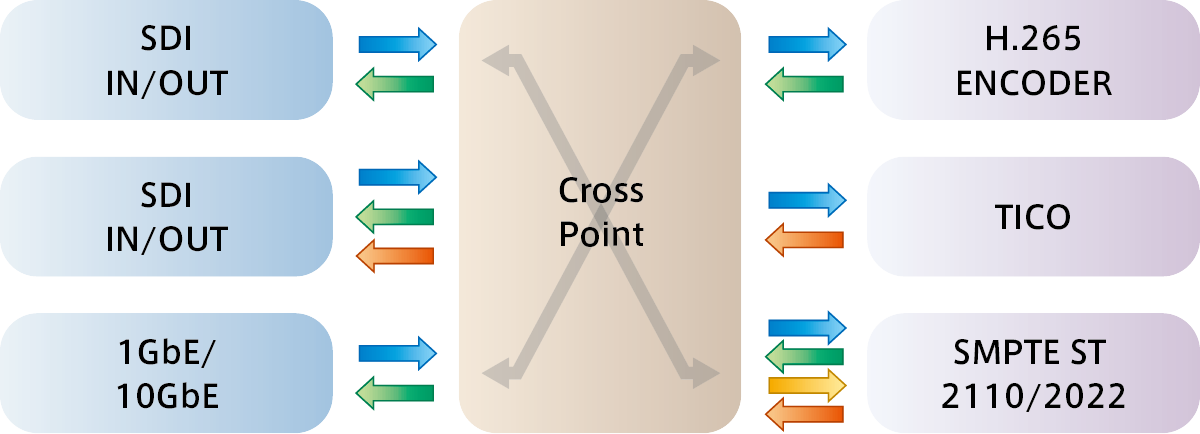

Switching function
・Allows you to set the routing inside
the equipment at will to flexibly support
the mounting status of each card.
Chassis specifications
| Model | HOL-PB100 | |
|---|---|---|
| Number of slots | I/F cards: 6 Function cards: 4 |
|
| Monitoring and control | WEB / SSH / SNMP / CONSOLE | |
| Synchronization GEN Lock |
Conformance with SMPTE 2059 | |
| 10 MHz/B.B/3-value SYNC | ||
| Operating temperature | 0 to 40℃ | |
| Operating humidity | 30 to 90％ | |
| Fan unit | Provided as standard | |
| Redundant power supply | Provided as standard | |
| Power consumption | 600W or less | |
| Rated power supply | 85 to 264 VAC | |
| Weight | 20 kg (when fully equipped) | |
| External dimensions | 430(W)×480(D)×130(H) mm * Excluding protrusions | |
Card specifications
I/F cards
| Card | I/F cards | |
|---|---|---|
| SDI | Ethernet | |
| Model | HOL-PB-TR12 | HOL-PB-E10 |
| Transmission signal | 12G/3G/HD/SD-SDI, DVB-ASI | GbE/10GbE |
| Input/output connector | 5 BNC systems | 6 SFP/SFP+ systems |
| Weight | 1.5kg | 1.5kg |
Function cards
| Card | Function cards | |
|---|---|---|
| H.265 Encoder | H.265 Decoder | |
| Model | HOL-PB-FE | HOL-PB-FD |
| Video format |
● 3840x2160
59.94p
12G-SDI / Quad Link 3G-SDI |
|
| Profile | Main(4:2:0,8bit), Main10(4:2:0,10bit), Main422 10(4:2:2,10bit) | |
| Bit Rate | 100Mbps maximum | |
| Number of channels | 4K: 1/Other: 4 | 4K: 1/Other: 2 |
| Audio | Embedded audio, 8 channels maximum | |
| Audio codec | MPEG4-AAC LowComplexity / 768 kbps maximum | |
| Weight | 2.0kg | 2.0kg |
| Card | Function cards | |
|---|---|---|
| TS over IP | SDI over IP | |
| Model | HOL-PB-FS01 | HOL-PB-FS10 |
| Applicable IP transmission standard |
SMPTE ST 2022-1/-2/-7 | SMPTE ST 2022-6/-7 SMPTE ST 2110-10/-20/-30/-40 |
| Number of channels |
TS
: 8 channels maximum |
12G-SDI
: 1 channel |
| Encryption | Camellia | — |
| Weight | 2.0kg | 2.0kg |
| Card | Function cards |
|---|---|
| TICO Encoder/Decoder | |
| Model | HOL-PB-FT |
| Video format | ● 3840x2160 4:2:2, 10bit 12G-SDI / Quad Link 3G-SDI |
| Number of channels |
12G-SDI ：2CH |
| Compression rate | 1/4 |
| Weight | 2.0kg |
