OPTICAL INTERFACE UNIT
IF-BOX series
Optical camera cable expansion BOX

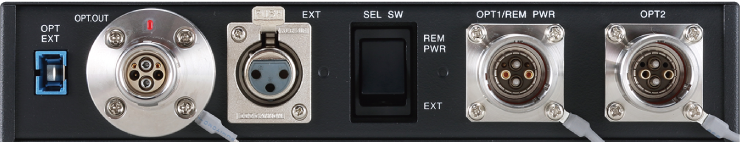

□ IF-BOX-H
Rear

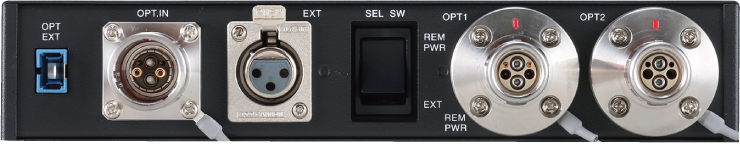

□ IF-BOX-R
Rear
Usage
・Reduction in the number of optical camera cables used
Features
- 1Allows you to change the wiring of the optical fibers at will.
- 2Allows you to reduce the number of optical camera cables because data from different pieces of equipment can be transmitted over a single optical camera cable.
- 3Allows you to connect equipment with SC connectors.

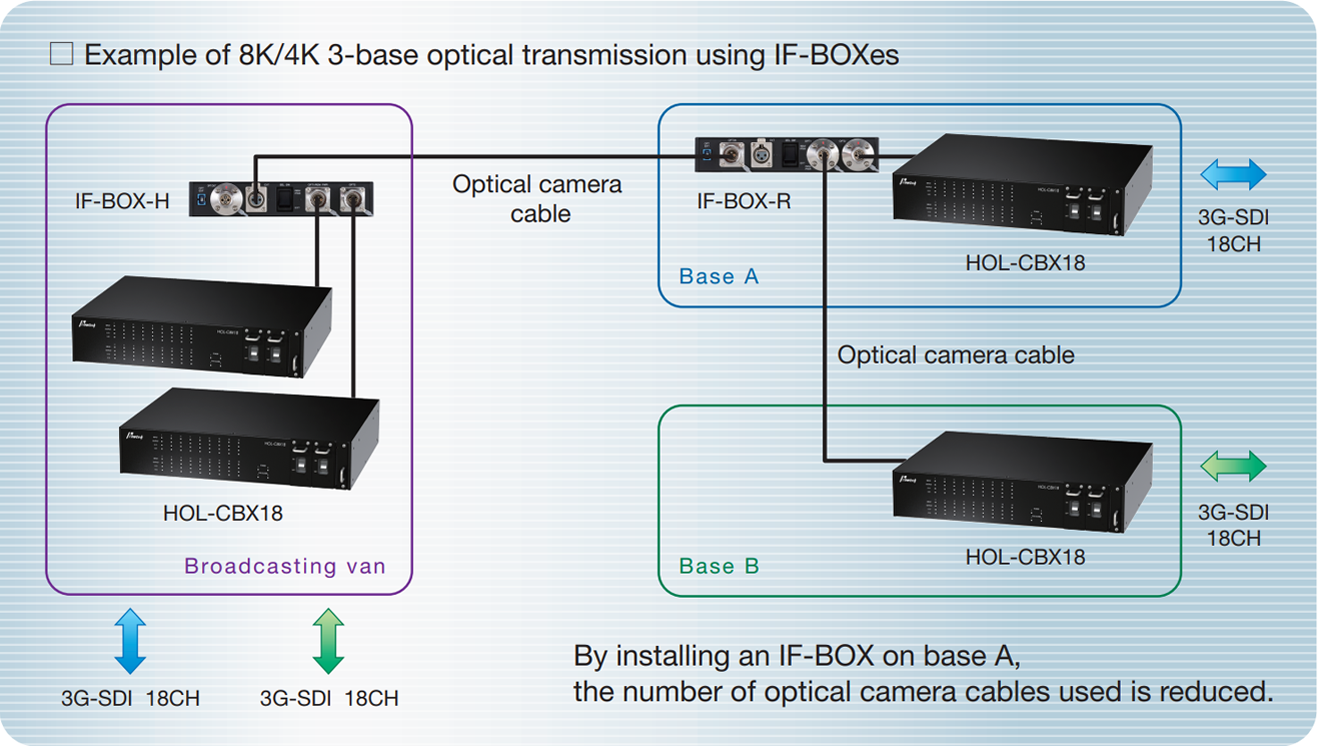

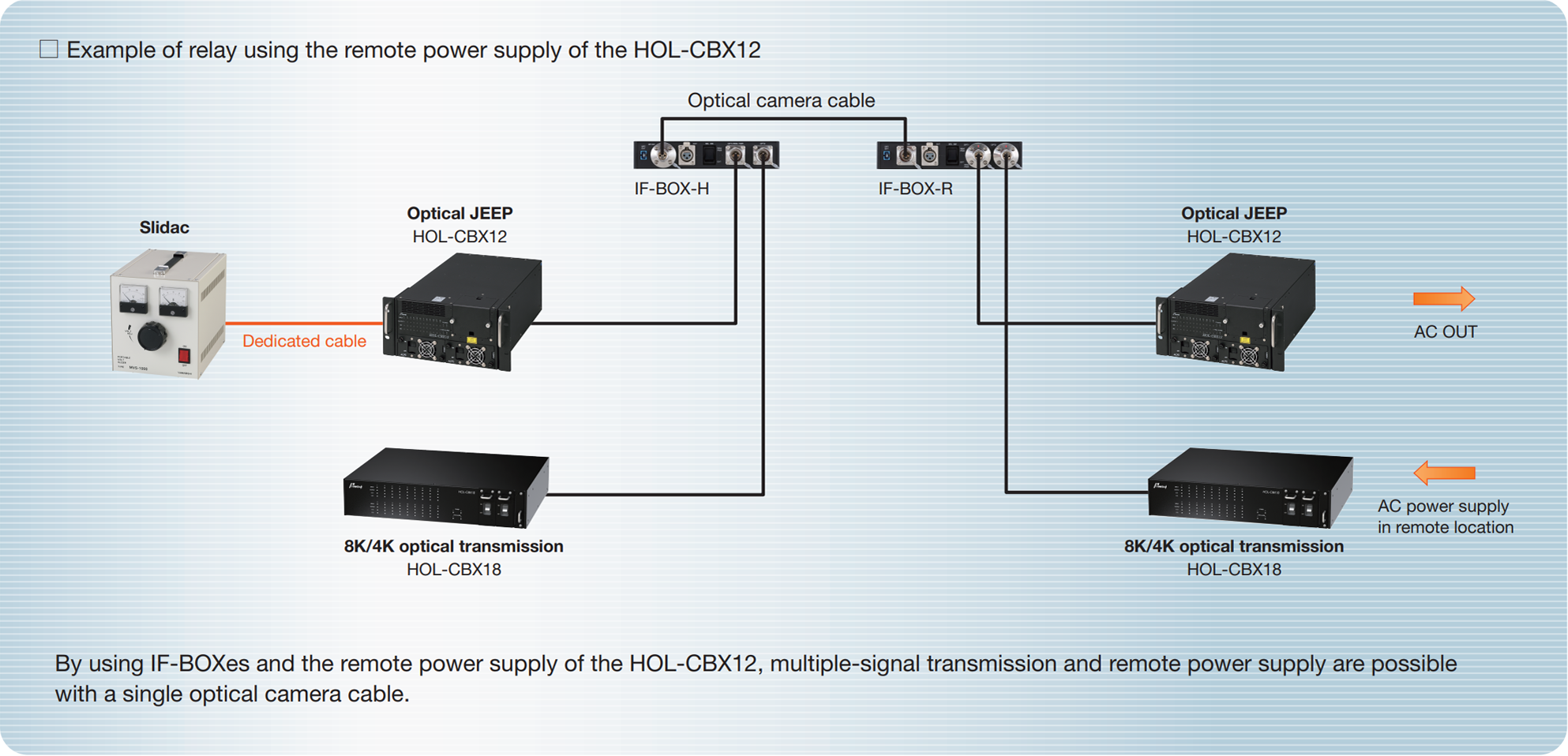

Configuration examples
IF-BOX series specifications
| Model | IF-BOX-H | IF-BOX-R |
|---|---|---|
| Transmission side | FXW | EDW |
| Equipment side | 2 EDW systems | 2 FXW systems |
| Expansion connector | 2 XLR-3 systems | |
