Compatible with major domestic and foreign EVs and PHEVs

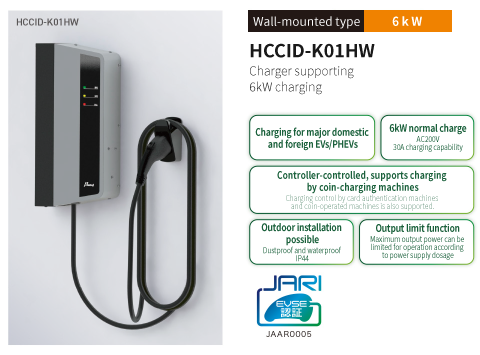

AC normal charger

HCCID Series

HCCID-K01HW

■6kW normal charge

Supports 200 VAC, 30 A charging

■Independent charging and external controller-controlled charging
・Stand-alone charging

Stand-alone and ready to use after installation

・External controller controlled charging

Controllable via RS-485 interface
(charge enable/shutdown, output current setting)

■Other

・Output current setting function (6A to 30A)
・Self-diagnosis & alert function (internal circuit error detection)
・Abnormality detection function (leakage current, abnormal heat generation, overcurrent detection)
・High weather resistance (stainless steel)
・Cold climate specifications (-20°C to +40°C)

■JARI Certification
■Outdoor installation possible

Dustproof and waterproof IP44

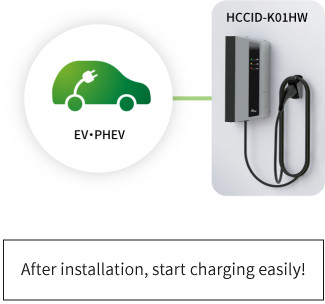

Connection configuration (1)

Independent charging: Standalone configuration (supports configuration according to customer needs)

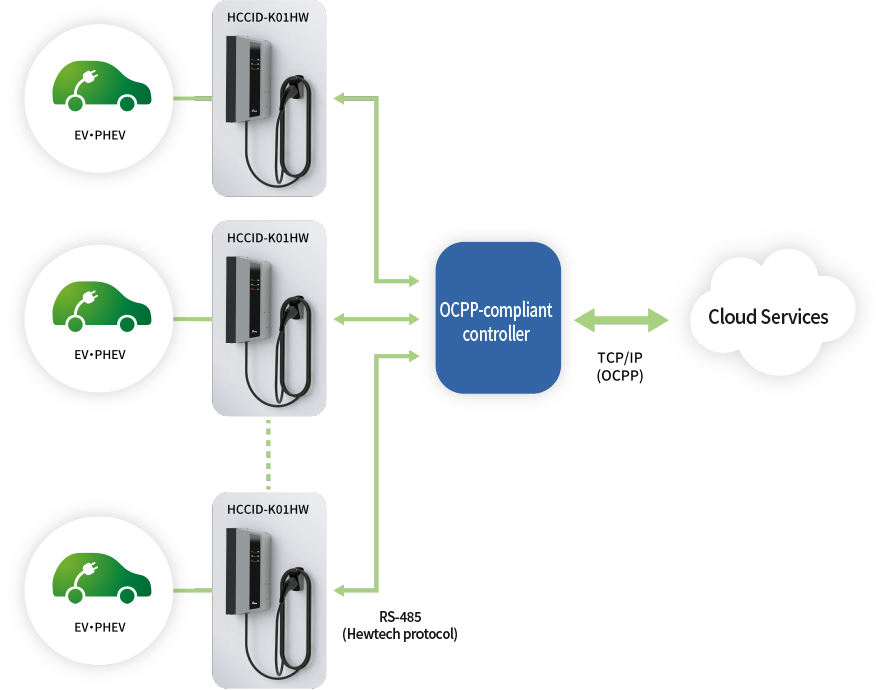

Connection configuration (2)

External controller charging: cloud-linked configuration by control system

HCCID series

Product name

HCCID-K01HW

External dimensions (H) 540 mm x (W) 275 mm x (D) 100 mm
Weight 13 kg
Input Single-phase 200 VAC, 50/60Hz, 30A
Output Max 6kW (30A)
Usage environment -20℃ to +40℃
Charging connector cable 5.5m, 7.5m
Protective function Leakage, overcurrent, short circuit, surge, abnormal temperature, abnormal contact
Dustproof/Waterproof IP44
Communication interface RS-485
User interface LED 3 colors (green, orange, red)
Standard JARI certification, PSE (charging connector cable)

Related product

■Battery charger checker HEV-CHK001

For charger installation and regular maintenance of the charger
Handy size makes it possible to check the operation of the charger even without a vehicle.
Dimensions:
(H)271.5mm × (W)72mm × (D)72mm
■Compact/handy size
■Battery operation

・2 hours of continuous use
・Auto power off: Power off about 3 minutes after the last operation

■Easy operation, Test mode switching
・AUTO mode

automatically confirms a series of charging operations

・STEP mode

charging control Check the operation of each step according to the request from the device

■Vehicle type switching (MODE3/MODE1)
■Leakage current generation function

・Check leakage current interruption operation of the charger

■Full display function

・error code display
・charging voltage display (AC100V/AC200V)
