For operation check and maintenance after installing the charger

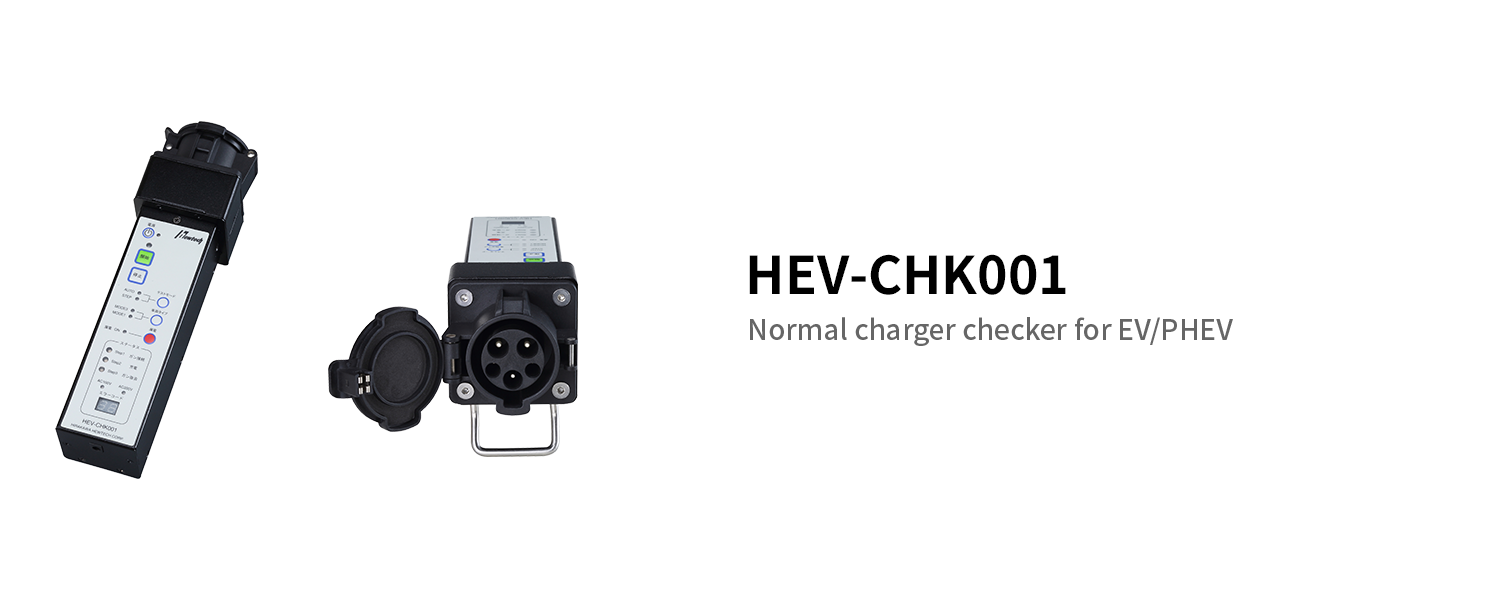

Product Summary
This product is a device that checks the operation of EV/PHV normal charging.
By pressing the start button of the device, the vehicle operation is simulated and the charging operation is automatically confirmed.
Product features

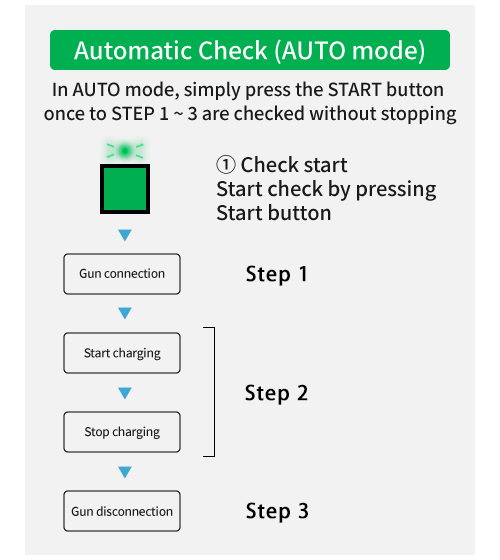

- Simulates a series of vehicle operations and automatically confirms charging operation by simply pressing the start button (AUTO mode)
- It is possible to check the operation of the charger that operates according to the request from the charging control device such as the billing system for each process (STEP mode)
- LED displays the confirmation result of the EV normal charger for each process
- It is possible to check by simulating a vehicle that does not require authentication by CPLT signal (Mode 1 vehicle, etc.)
- Automatic discrimination of charging voltage (AC100V, 200V)
- Works with batteries or AC adapter
【Measuring method】
Specification
| Item | Specification | |
|---|---|---|
| Applicable standard | IEC61851-1, SAEJ1772 | |
| Function | Charger test function |
The test is performed in 3 steps, and the test result is displayed on the LED, allowing you to check the details of the error with the error code number displayed in 7 segments [Test steps] Step 1: Gun connection Step 2: Charging Step 3: Gun removal |
| Test mode switching function |
AUTO mode: Automatically confirms all series of charging operations by pressing the start button STEP mode: Confirms the operation of the charger step by step according to the request from the charging control device |
|
| Vehicle type switching function |
Mode3 vehicle: Simulates a vehicle with an authentication function using CPLT signals Mode1 vehicle: Simulates a vehicle that does not have an authentication function using CPLT signals *Mode1 test mode is AUTO only |
|
| Earth leakage functio |
Generate an earth leakage during the test and check the earth leakage cutoff operation on the EV normal charger side (generate an earth leakage current of 30mA for 150ms). |
|
| Charging voltage display function |
Determines charging voltage (100/200 VAC) and displays with LED | |
| Auto power off function |
Turn off the power about 3 minutes after the last operation. Notification by flashing power LED 30 seconds before power off |
|
| Operability | Push button | Button operation when selecting power, start, stop, test, vehicle type, earth leakage |
| Visibility | LED | LED display for power status, test status, and error status |
| 7 seg | Displays the error code as a number when an error occurs | |
| Input Power | Battery (006P type 9V) or AC adapter (sold separately) | |
| Maximum power consumption | 0.8W | |
| Environmental specifications |
Operating temperature/ humidity |
0 to 40℃/20 to 80%(non-condensing) |
| Storage temperature/ humidity |
0 to 60℃/20 to 90% (non-condensing) | |
| External dimensions | W:72mm D:271.5mm H:72mm | |
| Mass | 740g (including batteries) | |
| Accessories | 1 instruction manual, 1 warranty card, 1 battery | |

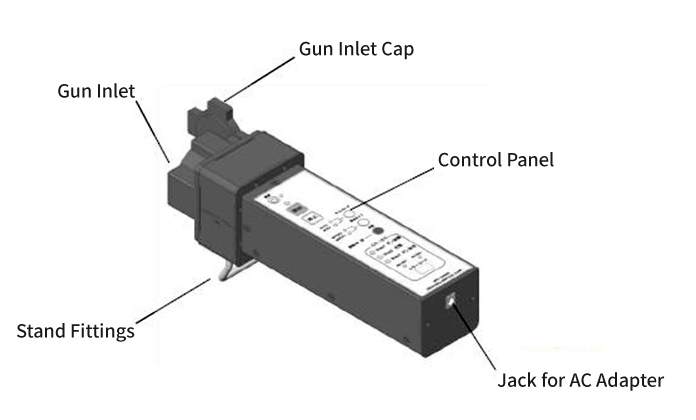

Name of each part

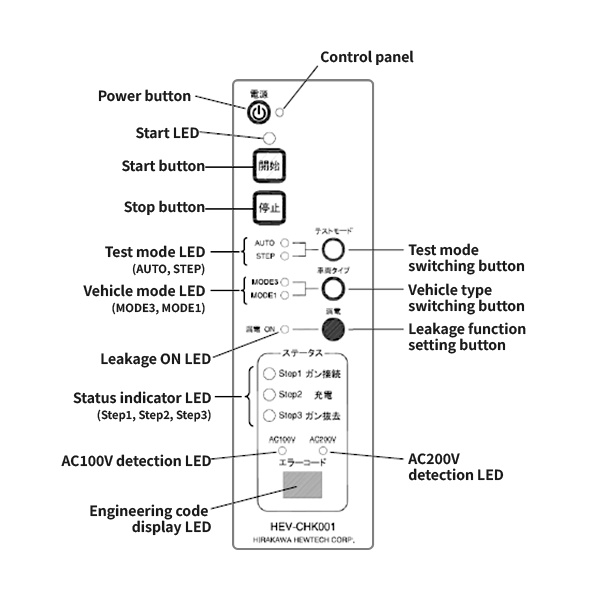

Control panel
