IoT charging controller

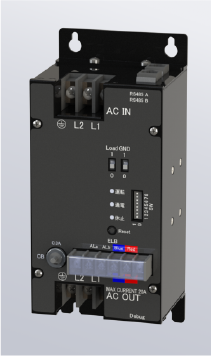

HV-200-20
Remote monitoring and control of a standalone EV charging outlet
- Uses
- ・ IoT-based EV charger outlet
- ・ Remote monitoring and control of remote-controlled earth leakage breakers for EV chargers
- ・ Remote control from a connected HCCID-CNT16 (OCPP controller)
■Rated current
・200 VAC 20 A
■Remote monitoring and control by HCCID-CNT16
・RS-485 (proprietary protocol)
・Function to monitor charging voltage, current, and electric energy (N6 level in the special measurement system)
・Remote-controlled earth leakage breaker ON/OFF control function and trip state monitoring function
・Short circuit and overcurrent warning function
■Self-diagnosis alert function
・Short circuit detection circuit abnormality, remote-controlled earth leakage breaker control circuit abnormality, and control relay operation count
■LED indication
・Device status (running/power on/idle)
■Others
・200VAC
・Cold climate specifications (-20°C to +60°C)
・Connectable to existing EV charging outlets as well
・200 VAC 20 A
■Remote monitoring and control by HCCID-CNT16
・RS-485 (proprietary protocol)
・Function to monitor charging voltage, current, and electric energy (N6 level in the special measurement system)
・Remote-controlled earth leakage breaker ON/OFF control function and trip state monitoring function
・Short circuit and overcurrent warning function
■Self-diagnosis alert function
・Short circuit detection circuit abnormality, remote-controlled earth leakage breaker control circuit abnormality, and control relay operation count
■LED indication
・Device status (running/power on/idle)
■Others
・200VAC
・Cold climate specifications (-20°C to +60°C)
・Connectable to existing EV charging outlets as well

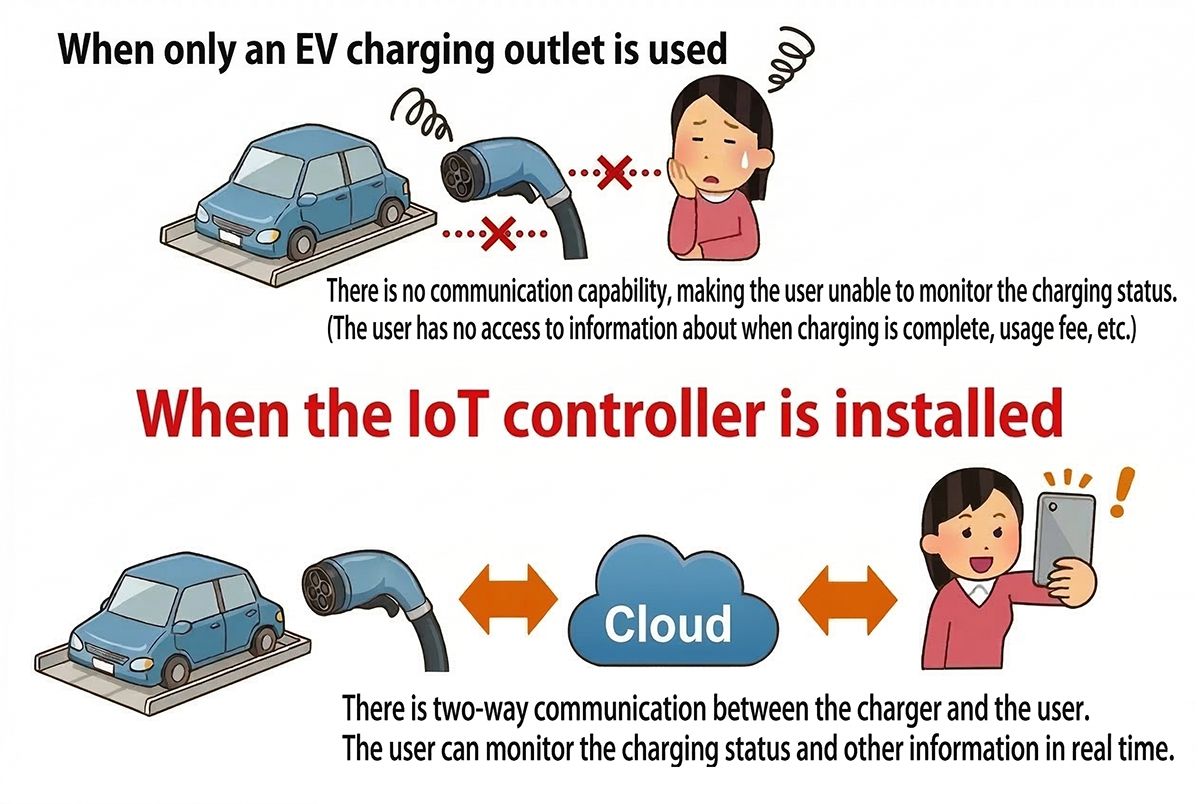

Usage example

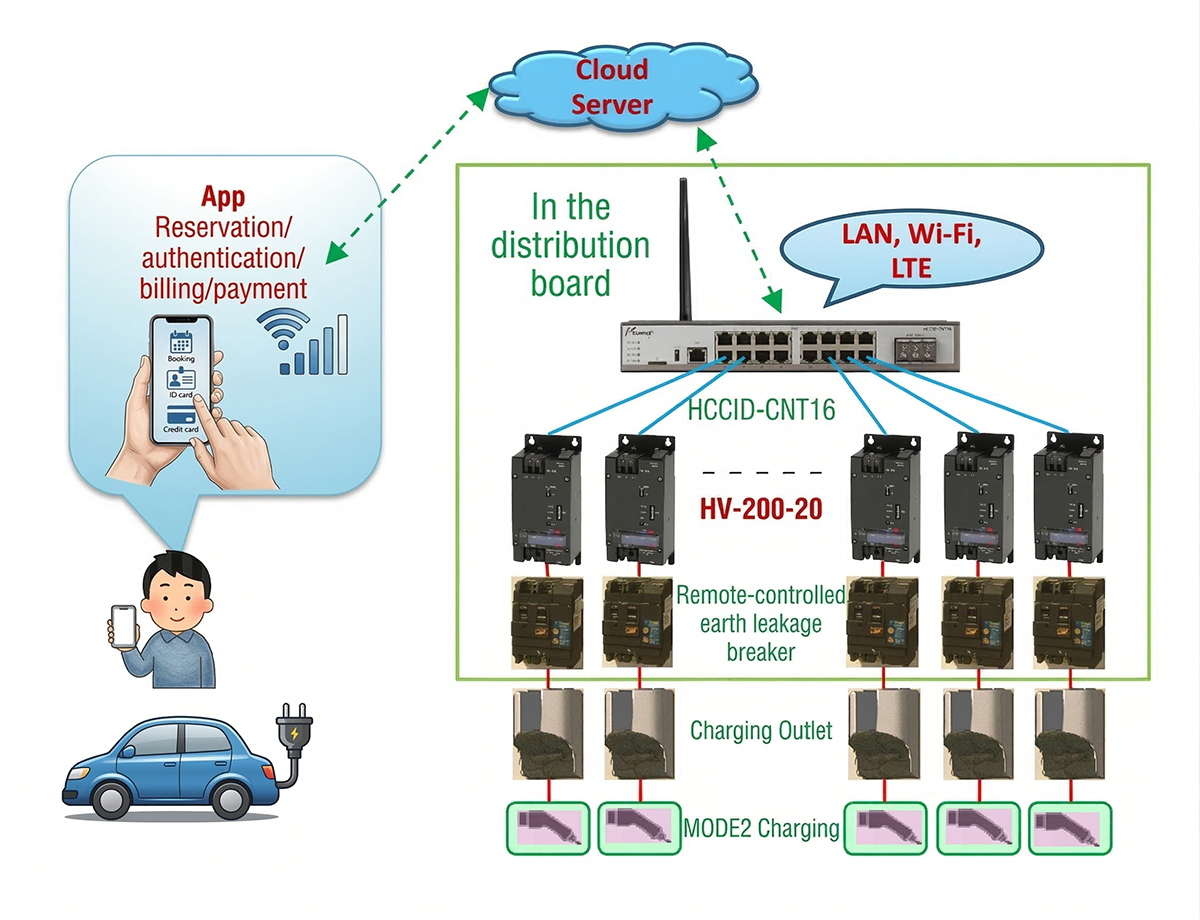

Configuration example
Specification overview
| Product name | HV-200-20 |
|---|---|
| External dimensions | (H)180 x (W)100 x (D)80 mm |
| Weight | 2.0kg (TBD) |
| Input | Single-phase 200 VAC, 50/60 Hz, 0.1 A |
| Rated current | Single-phase 200 VAC 20 A |
| Communication interface | Communication method: RS-485 (RJ-45 connector) 19200 bps/no parity/8-bit data/1 stop bit/no flow |
| Protection function | Leakage, overcurrent, short circuit |
| Self-diagnosis | Short circuit detection circuit, remote-controlled earth leakage breaker control circuit |
| Remote-controlled earth leakage breaker | Control (blue/red), monitor (Ala/Alb), control circuit protector (0.3 A) * Remote-controlled earth leakage breaker type:BCLE220329ALT：20A 30mA AC200V AL |
| LED indication | Running/power on/idle |
| Special measurement system support | N6 level |
| Operating environment | -20°C to +60°C |
| Dustproof/waterproof standard | IP20 |
