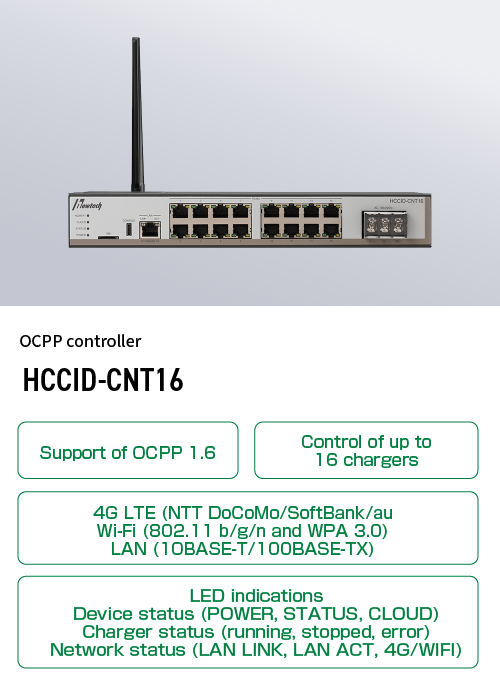

Compatible with major domestic and foreign EVs and PHEVs OCPP controller
OCPP controller
- ■Cloud communication protocol
-
- Supports OCPP 1.6.
(OCPP 2.0.1 to be supported in the future) - ■ Charger control interface
-
- RS-485 port (RJ-45): 16 ports
(Controls up to 16 HCCID-K01 and 03HW units.)
- Capable of controlling charging enable/disable and output current - ■ Network interface
-
- LAN (RJ-45: 10BASE-T/100BASE-TX)
- Wi-Fi, 802.11 b/g/n, and WPA 3.0
- 4G LTE, NTT DoCoMo/SoftBank/au
(Can be connected to a cloud control server.) - ■ Control interface
-
- Console port (TYPE-C)
(Can be connected to a console equivalent to a VT100 terminal.)
- Initial network interface setup - ■ Other
-
- 100 VAC/200 VAC
- Cold climate specifications (-20°C to +50°C)
- VCCI Class A
Connection configuration
OCPP controller-based cloud integration
Specifications
| Product name | HCCID-CNT16 |
|---|---|
| Cloud communication protocol | OCPP1.6 Websocket, TLS1.2 |
| Network interface | LAN (RJ-45: 10BASE-T/100BASE-TX) Wi-Fi (802.11 b/g/n and WPA 3.0) 4G LTE (NTT DoCoMo/SoftBank/au) |
| Console interface | USB3.0 TYPE-C（115200bps） |
| Console management information | Charger selection function Self-diagnosis function Debugging function Network selection, IP address setting DNS function, Static IP Log: To be obtained with the GetDiagnostic message |
| Charger management interface | Communication protocol: RS-485 (19200 bps) Private Protocol Number of chargers to be connected: 16 |
| Charger management information | Charging status, relay status, EV connection status, electric energy, average current value, maximum current value, voltage, error code |
| Charger control command | Restart, charging start, charging stop, current control |
| LED indications | Device status: POWER, STATUS, CLOUD Charger status: Running, stopped, error Network status: LAN LINK, LAN ACT, 4G/WIFI |
| External dimensions | （H）297mm ×（W）160mm ×（D）43mm |
| Weight | 1.5 kg |
| AC input voltage | 100 VAC/200 VAC (±10%) |
| AC power frequency | 50/60Hz（±1%） |
| Maximum device power consumption | 5.5 W |
| Operating temperature | -20°C to +50°C |
| Operating humidity | 20 to 90% |
| EMC | VCCI CLASS A |
