10Giga WDM GX series
10Giga WDM GX series
■Capable of bidirectional transmission on two 10 giga Ethernet channels
with a 1-core optical fiber. (Supports STM-64/OC-192 and 10G FEC rate.)■Has a built-in optical amplifier and supports long-distance transmission
(maximum allowable loss: 36 dB).■Can be easily installed with Plug&Play.
■Capable of monitoring SNMP, optical input interruption, optical input/output level, etc.
with optical inline.■Pairs well with L3-Switch in a duplex configuration because it is a layer 1 transmitter.
■Enables you to create a flexible network because of compatibility with FX series transponders.
■Enables you to make firmware updates to the SNMP unit without stopping the optical line.
■3R functions (Reshaping, Retiming, and Regenerating)
■For the interface, pluggable XFP is adopted to improve maintainability.
(XFP is attached to a 10Giga transponder as standard.)

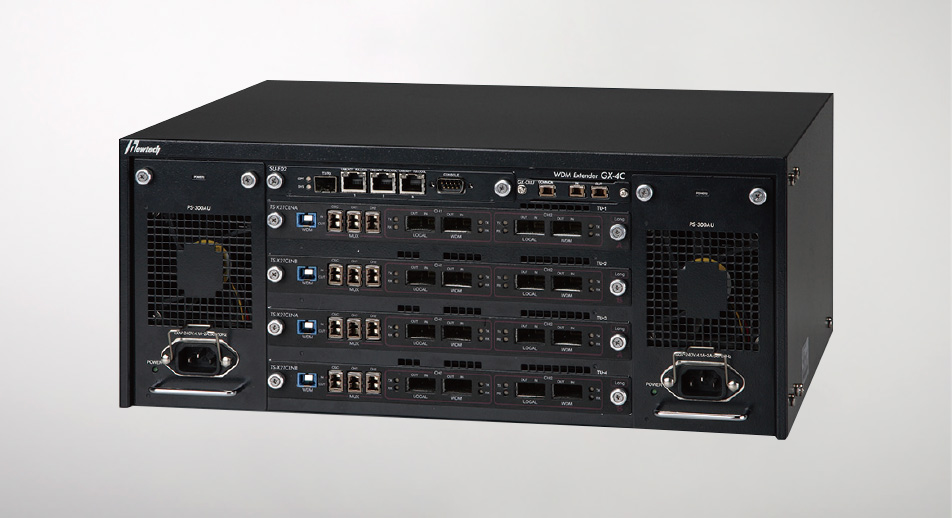

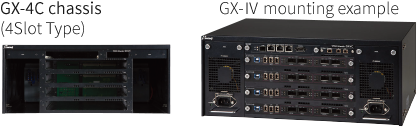

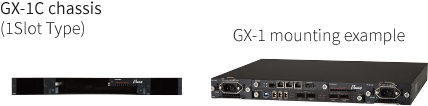

Chassis

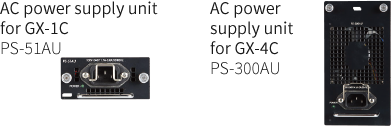

Power supply unit

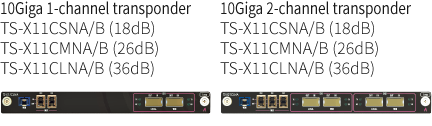

Transponder unit

SNMP unit

MUX/DEMUX unit for FX inline monitoring

Configuration example

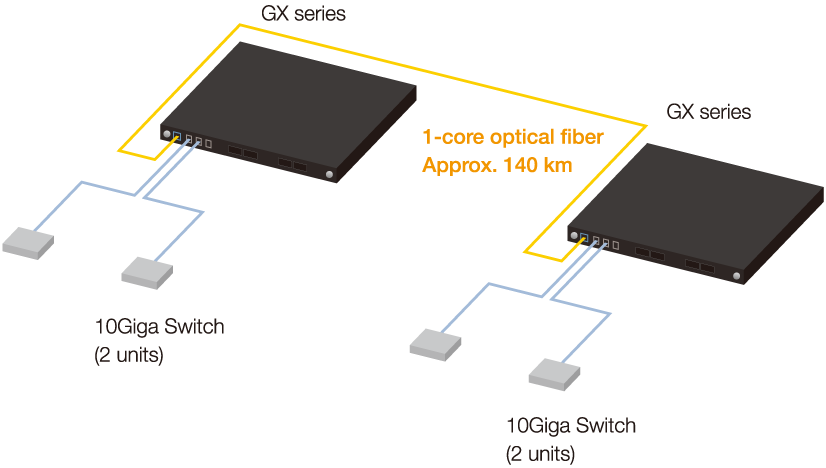

Configuration with two 10Giga channels opposite each other

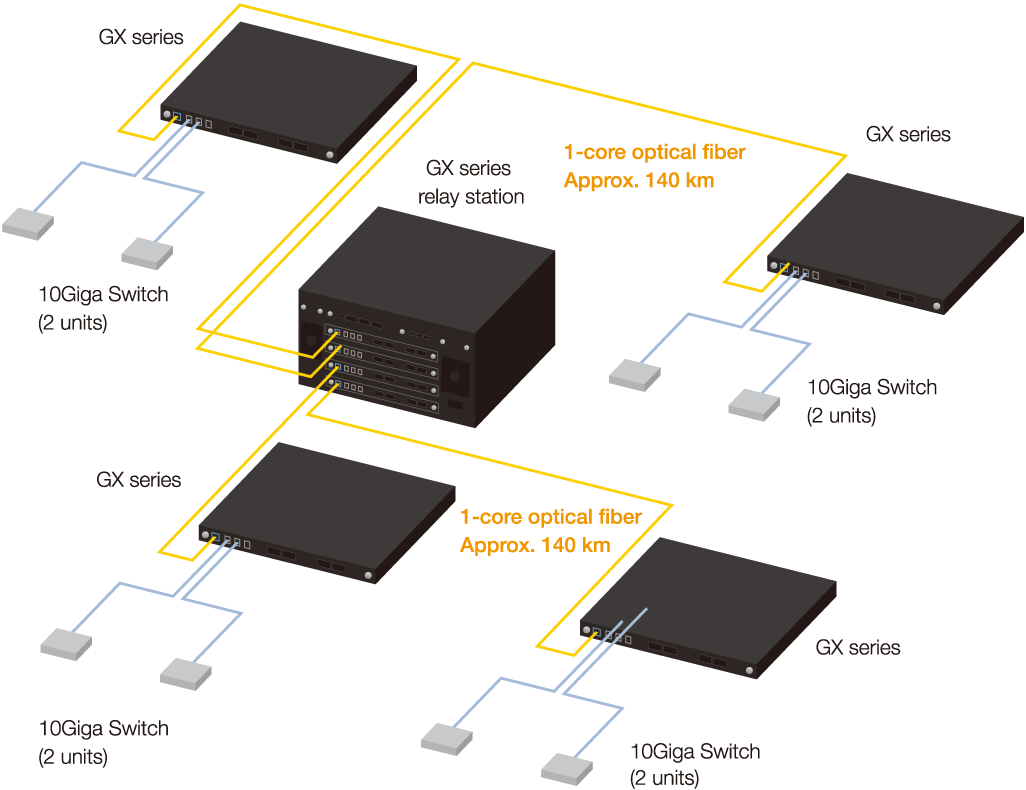

10Giga long-distance relay configuration

Overview of the 10Giga WDM GX series specifications
Chassis | Power supply unit | |||
---|---|---|---|---|
Model | GX-1C | GX-4C | PS-51AU | PS-300AU |
Operating temperature | 5 to 40°C | 5 to 40°C | ||
Operating humidity *1 | 20 to 85% | 20 to 85% | ||
Electrical specifications | - | 100 VAC-1.7 A/240 VAC-0.8 A | 100 VAC-4.1 A/200 VAC-2 A | |
Approx. 4.5kg | Approx. 8.0kg | Approx. 1.0kg | Approx. 3.0kg | |
External dimensions (mm) *2 | W430jD400×H44 | W430×D350×H177 | - |
10Giga 1-channel transponder unit
Model | TS-X11CSNA/B | TS-X11CMNA/B | TS-X11CLNA/B |
---|---|---|---|
Operating temperature | 5 to 40°C | ||
Operating humidity *1 | 20 to 85% | ||
Transmission level | -2.0~+3.0dBm | -2.0~+3.0dBm | +7.5 to +10dBm |
Reception level | -20~-10dBm | -28.5~+7dBm | -28.5 to +7dBm |
Wavelength used | 1537.40 / 1550.12nm | ||
Power consumption | - | ||
Estimated weight | Approx. 1.7kg | ||
External dimensions (mm) *2 | - |
10Giga 2-channel transponder unit
Model | TS-X21CSNA/B | TS-X21CMNA/B | TS-X21CLNA/B |
---|---|---|---|
Operating temperature | 5 to 40°C | ||
Operating humidity *1 | 20 to 85% | ||
Transmission level | -4~+3dBm | -4~+3dBm | +6 to +10dBm |
Reception level | -19~-10dBm | -27~+7dBm | -27 to +7dBm |
Wavelength used | 1537.40 / 1538.98 / 1550.12 / 1551.72nm | ||
Power consumption | - | ||
Estimated weight | Approx. 1.8kg | ||
External dimensions (mm) *2 | - |
SNMP unit | FX inline monitoring MUX/DEMUX unit | |
---|---|---|
Model | SU-F02 | GX-CILU |
Operating temperature | 5~40°C | 5 to 40°C |
Operating humidity *1 | 20~85% | 20 to 85% |
Communication protocol | TCP,UDP,IP,ARP,ICMP,TELNET,TFTP,NTP,XMODEM | - |
Wavelength used | - | 1410 / 1450nm |
Power supply | DC5V±5% | - |
Power consumption | 5W | - |
Estimated weight | Approx. 0.5kg | Approx. 0.5kg |
External dimensions (mm) *2 | - | - |
*1 No condensation.
*2 Connectors and other protrusions are excluded from the external dimensions.
* 10Giga WDM values are reference values.
