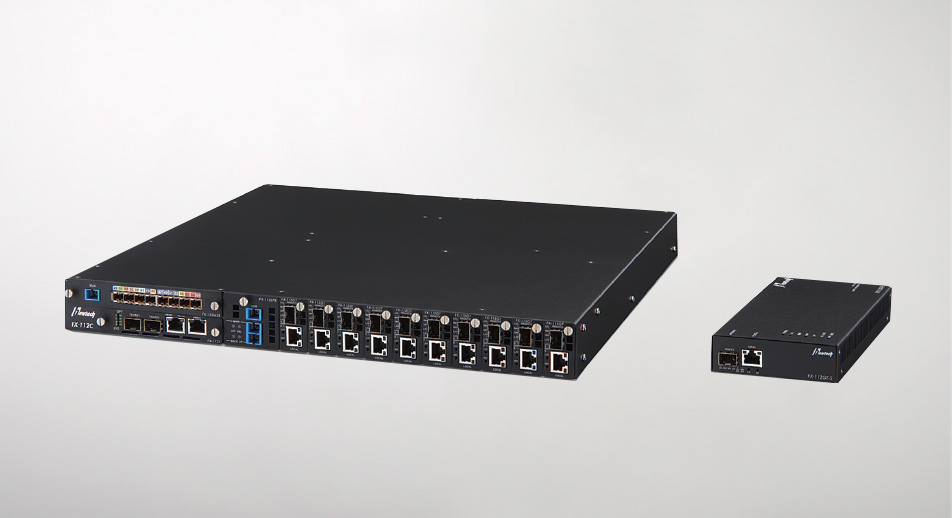

CWDM & 10 Giga media converters
CWDM & 10 Giga media converter
■ Equipment featuring both modular (1G/10G) media converter chassis and CWDM functions
■ Capable of accommodating up to 12 channels per unit (modular giga media converter chassis)
■ Capable of multiplexing up to eight channels into a 1-core optical fiber (CWDM equipment)
■ Features optical inline monitoring and loopback functions
■ Supports optical line redundancy (optical line switching unit FX-112LPx)
■ Transparent media converter without MAC address learning
■ Supports a redundant configuration with the RFD function
■ Enables stable transmission with the 3R function
■ Supports the use of a dual power supply
Independent Giga media converters

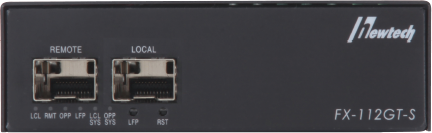

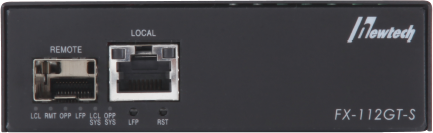

FX-112GT-S
(SFP/1000BASE-T)
FX-112GS-S
(SFP/SFP)
Independent 10 Giga media converters

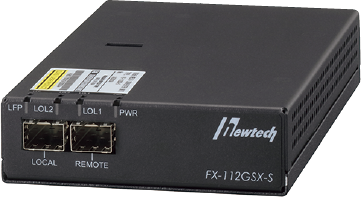

FX-112GSX-S
(10GBASE-X/10GBASE-X)

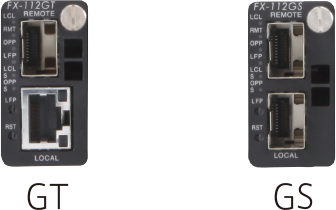

Giga media converter unit
FX-112GT(1000BASE-T)
FX-112GS(1000BASE-SX/LX)
10 Giga media converter unit
FX-112GSX
(10GBASE-X/10GBASE-X)

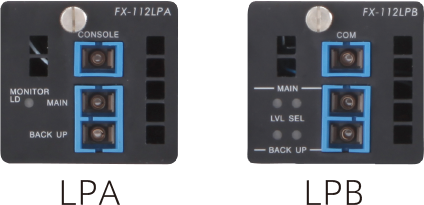

Optical line switching unit
FX-112LPA(Optical insertion loss 4.3 dB)
FX-112LPB(Optical insertion loss 1.8 dB)

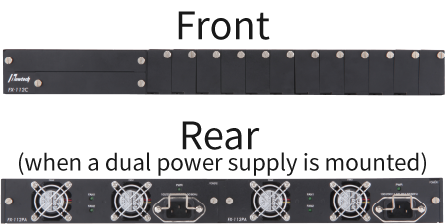

Chassis (set type)
FX-112C

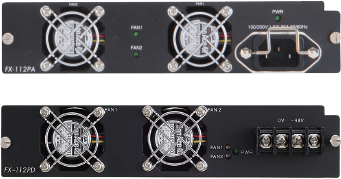

Power supply unit
FX-112PA(AC power supply)
FX-112PD(DC power supply)
MUX/DEMUX unit
FX-112MX4
(8-wave/4-channel multiplexing)
FX-112MX8
(16-wave/8-channel multiplexing)
FX-112MXT
Optical insertion loss 1.5 dB
SNMP unit
FX-112S
SFP
Remote side SFP（GbE）
・WIFP-FGE-M-□□□* PB:24dB・WIFP-FGE-LN-□□□* PB:32dB
・WIFP-FGE-SL-□□□* PB:37dB
・WIFP-FGE-SS-□□□* PB:41dB
Local side SFP（GbE）
・CIFP-F2FS GbE（SX）・CIFP-FGEL GbE（LX）

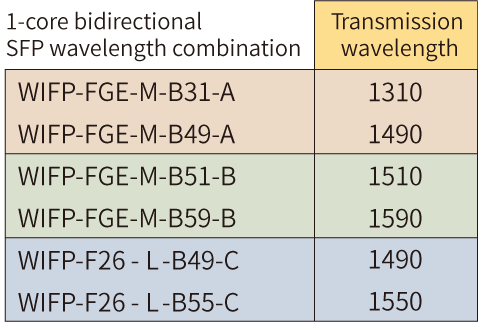

1-core bidirectional SFP
・WIFP-FGE-M-B31 PB:14dB・WIFP-FGE-M-B49 PB:14dB
・WIFP-FGE-M-B51 PB:24dB
・WIFP-FGE-M-B59 PB:24dB
・WIFP-F26-L-B49 PB:27dB
・WIFP-F26-L-B55 PB:27dB
SFP for SNMP（100M）
・WIFP-F03-M-□□□* PB:29dB・WIFP-F03-L-□□□* PB:34dB
・WIFP-F03-SL-□□□* PB:37dB
・WIFP-F03-SS-□□□* PB:46dB
* For a 1-core bidirectional SFP, use an SFP of a type with the same ending on the opposite side.
* The optical insertion loss does not include the optical connection loss.
* Use an SFP recommended by us.
Configuration examples

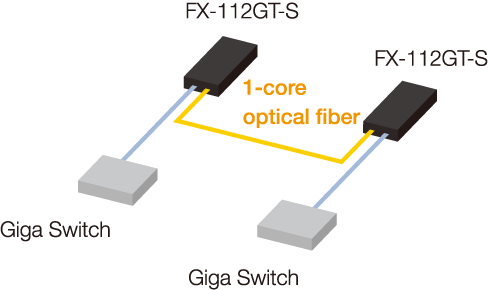

Independent configuration

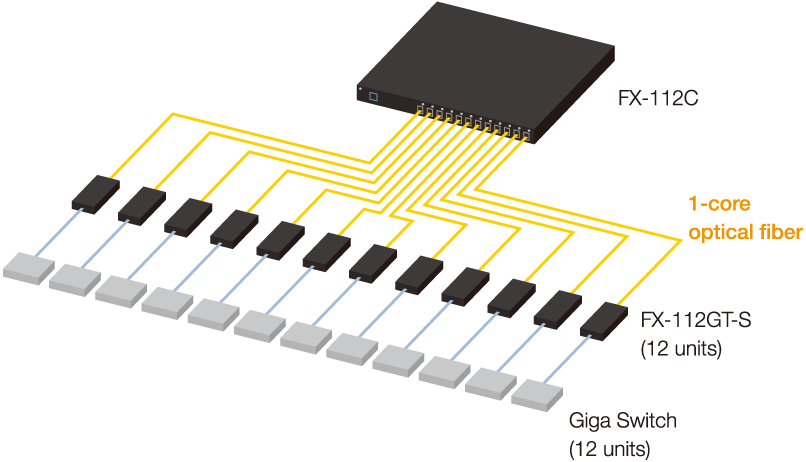

Set type configuration

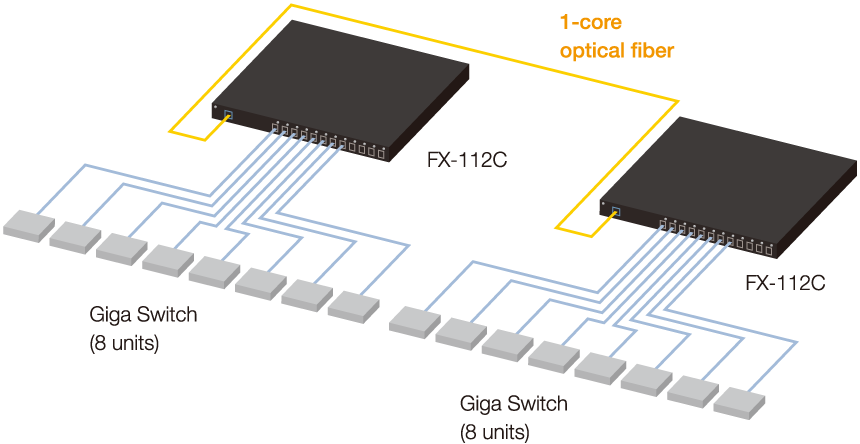

1000BASE-T 8-channel multiplex configuration

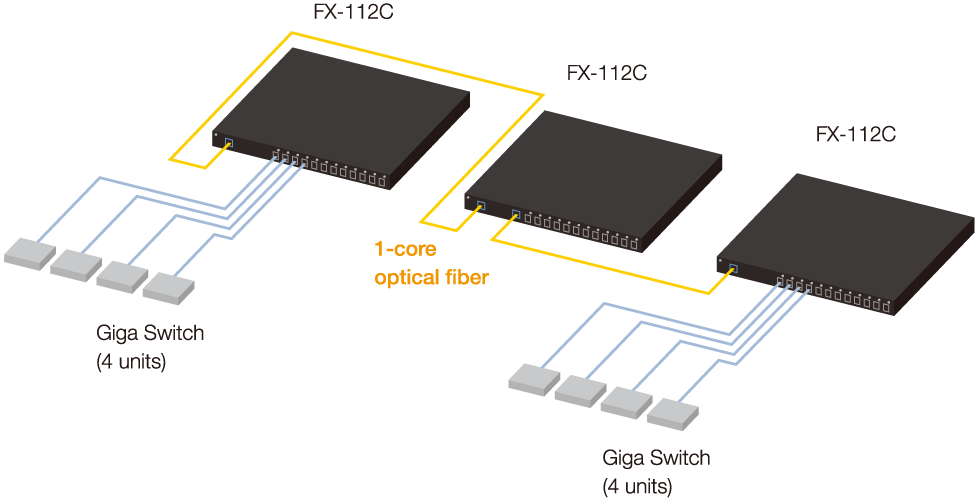

Cascade configuration
Overview of the CWDM & giga media converter specifications
| Independent giga media converters | Chassis (set type) | |
|---|---|---|
| Model | FX-112GT-S,GS -S | FX-112C |
| Operating temperature | 5 to 40°C | |
| Operating humidity | 20 to 85% (no condensation) | |
| Estimated weight | Approx. 0.5kg | Approx. 5kg |
| External dimensions | 100(W)× 200(D) × 26.5(H)mm | 432(W)× 430(D) × 44(H)mm |
| Power supply unit | SNMP unit | ||||
|---|---|---|---|---|---|
| Model | FX-112PA | FX-112PD | Model | FX-112S | |
| Operating temperature | 5 to 40°C | Operating temperature | 5 to 40°C | ||
| Operating humidity | 220 to 85% (no condensation) | Operating humidity | 20 to 85% (no condensation) | ||
| Estimated weight | Approx. 0.5kg | Approx. 5kg | Estimated weight | Approx. 0.5kg | |
| Power consumption | 125W or less (100VAC) | - | Power consumption | 10W or less | |
| Input voltage | - | DC36 to 76V | |||
| Input current | - | Typ 3.17A | |||
| Giga media converter unit | Optical line switching unit | |||
|---|---|---|---|---|
| Model | FX-112GT,GS | Model | FX-112LPA | FX-112LPB |
| Operating temperature | 5 to 40°C | Operating temperature | 5 to 40°C | |
| Operating humidity | 20 to 85% (no condensation) | Operating humidity | 20 to 85% (no condensation) | |
| Transmission level | +1.0 to +5.0dBm *1 | Applicable wavelength | 1264nm to 1618nm | |
| Reception level | -31.0 to -8.0dBm *1 | Monitoring wavelength | 1270 nm (transmission wavelength) | 1270 nm (reception wavelength) |
| Transmission wavelength | *2 | Estimated weight | Approx. 1kg | |
| Reception wavelength | *3 | Power consumption | 10W or less | |
| Estimated weight | Approx. 0.3kg | |||
| Power consumption | 10W or less | |||
*1 Depends on the recommended SFP.

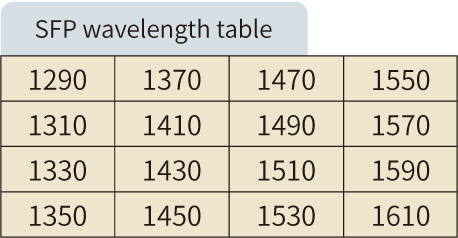

*2 1290/1310/1330/1350/1370/1410/1430/1450/1470/1490/1510/1530/1550/1570/1590/1610
*3 1470/1490/1510/1530/1550/1570/ 1590/1610
* Connectors and other protrusions are excluded from the external dimensions.
