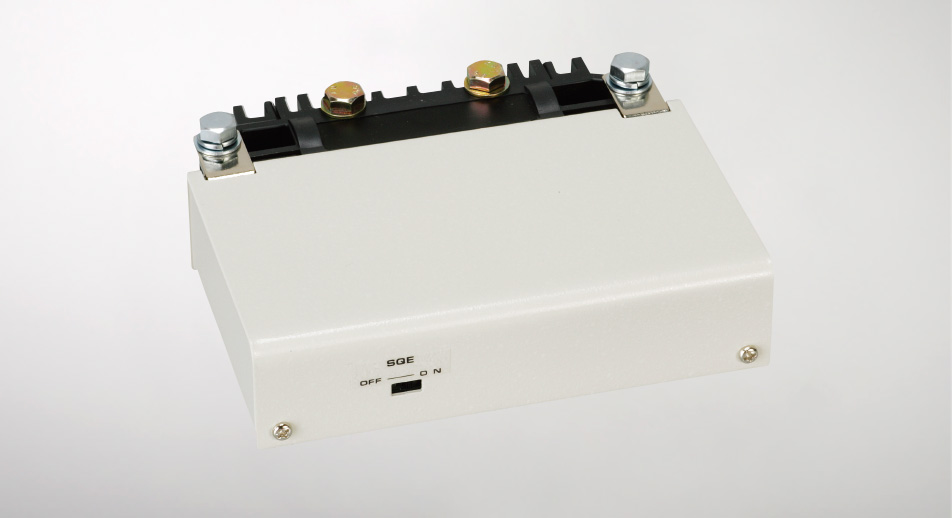

10BASE-5 Transceiver

10BASE-5 トランシーバ

HLT-200TE

Interface

  • 10BASE-5(AUI)× 1 Tap connector supplied

10BASE-5 Transceiver specifications
Model HLT-200TE
Interface Coaxial port 1 (IEEE802.3 10BASE 5-compliant, applicable to 50-W yellow cable (Thick coaxial))
AUI port 1 (15-pin D-sub connector (male), with a lock post attached)
Hardware External dimensions(W×D×H)[mm] 137.5×82×33
Weight 420g
Maximum power consumption 0.5A
Power supply redundancy -
Fan-less
Operating temperature/humidity (no condensation) 5 to 50°C / 10 to 95%
Attachment Tap connector (made by JAE)

* The rack mount bracket, connectors, and other protrusions are excluded from the external dimensions.
