10BASE-T HUB

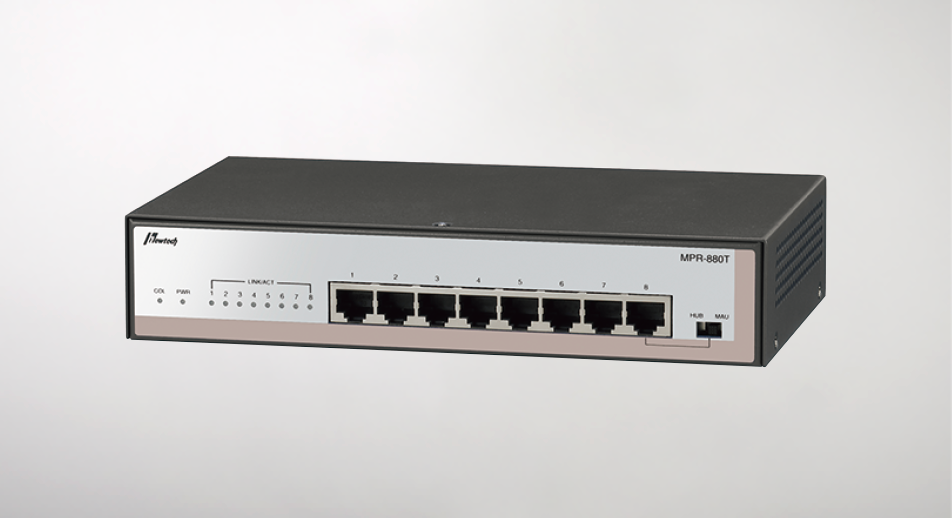

MPR-880T
Interface
- 10BASE-T× 8
- 10BASE-5（AUI）× 1
10BASE-T HUB specifications
| Model | MPR-880T | |
|---|---|---|
| Interface | 10BASE-T | 8 |
| 10BASE-5 | 1 (AUI, Female) | |
| Port function | Auto negotiation | - |
| Force Speed/Duplex | - | |
| Auto MDI/MDIX | - | |
| Force MDI/MDIX | ○ | |
| Hardware | External dimensions(W×D×H)[mm] | 217×130×43 |
| Weight | 1.1kg | |
| Input power supply (50/60 Hz) | AC100~240V | |
| Maximum power consumption | 15W | |
| Power supply redundancy | - | |
| Fan-less | ○ | |
| Operating temperature/humidity (no condensation) | 0 to 40°C / 20 to 80% | |
* The rack mount bracket, connectors, and other protrusions are excluded from the external dimensions.
