Edge router

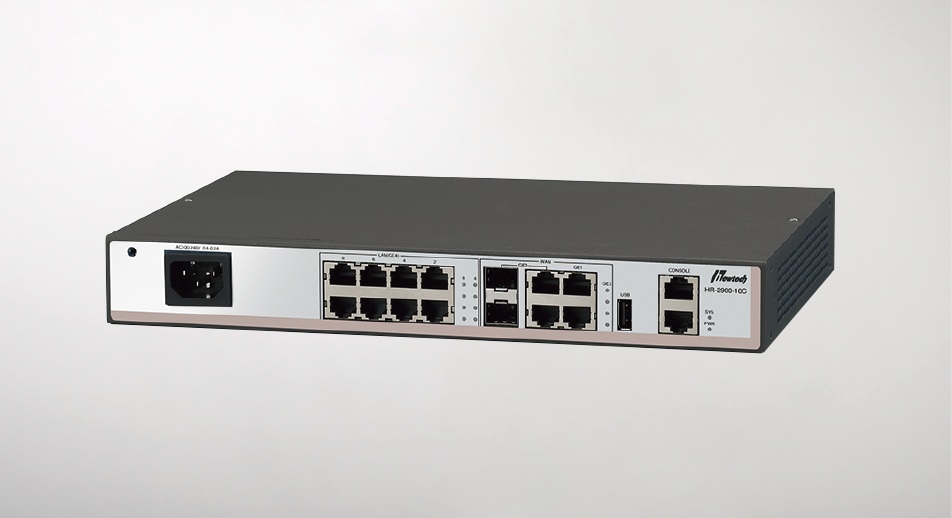

HR-2900-10C
Interface
- LAN 10/100/1000× 8
- WAN 10/100/1000× 4
- WAN SFP Combo× 2
Main supported functions
- VLAN
- QoS
- STP/RSTP
- Isolate
- Static LAG
- LACP
- IGMP Snooping
- Ring redundancy
- Loop guard
- PoE
- PoE-PD
- SNMP
- Telnet
- SSH
- Web
- DHCP
- NTP
- Syslog
- Log storage
- NAT
- VPN
- 50℃ support
- Fan-less
- Magnet
Router specifications
| Model | HR-2900-10C | |
|---|---|---|
| LAN interface | 10/100BASE-TX | - |
| 10/100/1000BASE-T | 8 | |
| SFP port | - | |
| WAN interface | 10/100BASE-TX | - |
| 10/100/1000BASE-T | 4 | |
| SFP port | 2(Combo) | |
| QoS | Number of queues | - |
| QoS | ○ | |
| Band limitation | ○ | |
| Spanning tree | STP(IEEE802.1D) | - |
| RSTP(IEEE802.1w) | - | |
| MSTP(IEEE802.1s) | - | |
| Security | 802.1X | - |
| RADIUS | - | |
| ACL | - | |
| Layer 3 function | Static Route | ○ |
| RIP | ○ | |
| OSPF | ○ | |
| BGP | ○ | |
| NAT | ○ | |
| VPN | ○ | |
| Management function | CLI | ○ |
| Web interface | - | |
| Telnet | ○ | |
| SSH | ○ | |
| TFTP | ○ | |
| FTP | - | |
| Syslog | ○ | |
| Log storage | - | |
| SNMPv1/v2/v3 | ○ | |
| RMON | ○ | |
| DHCP | ○ | |
| NTP | ○ | |
| Hardware | External dimensions (W×D×H) [mm] | 300×200×41 |
| Weight | 2.2kg | |
| Input power supply | 100 to 240 VAC (50/60Hz) | |
| Maximum power consumption | 20W | |
| Power supply redundancy | - | |
| Fan-less | ○ | |
| Operating temperature/humidity(no condensation) | 0 to 50°C / 20 to 90% | |
* The rack mount bracket, connectors, and other protrusions are excluded from the external dimensions.
