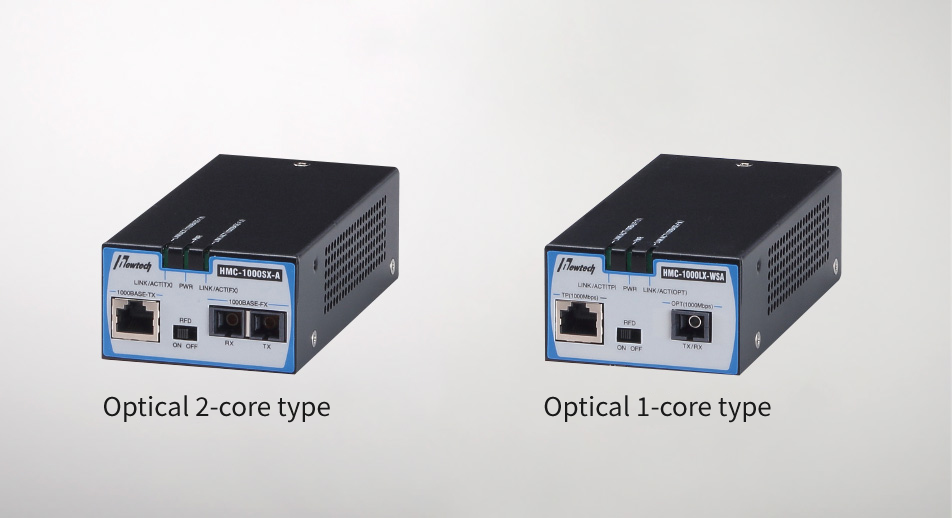

HMC-1000 series (Giga Media Converter)
■1000BASE-T/1000BASE-X-compliant independent media converter
■Supports Auto Negotiation and Auto MDI/MDI-X.
■Enables you to create a simple network because it has no built-in bridge functions.
■The RFD function makes it easy to detect optical cable and CAT5 cable faults.
■The LINK/ACT status of individual optical cables and CAT5 cables is indicated with an LED, making it easy to isolate faults when they occur.
■Built-in power supply assures high reliability.
■Supports a set type when combined with HMC.
■Environment-resistant design capable of withstanding -20 to 60°C
■Supports magnetic and wall fastening.
Main support functions
- MM fiber(2-core)
- SM fiber(1-core)
- 1000BASE-T1 port
- 1000BASE-X1 port
- RFD
- Small size
- Single use
- Temp -20 to 60℃
- Fan-less
- Internal power
Overview of media converter specifications
Media convertersModel | HMC-1000SX | HMC-1000LX | HMC-1000LX-W20A HMC-1000LX-W20B |
HMC-1000LX-W40A HMC-1000LX-W40B |
---|---|---|---|---|
Applicable standard | IEEE 802.3ab 1000BASE-T,IEEE 802.3z(1000BASE-SX,1000BASE-LX) | |||
Conformance standard | EMI standard VCCI class A | |||
Twist port | 1000BASE-T 1 port (RJ45) | |||
Optical port | 1000BASE-SX, 1 port (SC 2-core) |
1000BASE-LX 1 port (SC 2-core) |
1000BASE-LX 1 port (SC 1-core bidirectional) |
1000BASE-LX 1 port (SC 1-core bidirectional) |
Applicable UTP cable | 1000BASE-T CAT5e cable or higer | |||
Applicable optical cable | Multi-mode fiber | Single-mode fiber | Single-mode fiber | Single-mode fiber |
Optical transmission wavelength | 850nm | 1310nm band | W20A:1310nm W20B:1550nm |
W40A:1310nm W40B:1550nm |
Emitted light /received light level | -4 to -9.5dBm /0 to -18dBm |
-3 to -9dBm /-3 to -21dBm |
-3 to -8dBm /-3 to -20 dBm |
+2 to -3dBm /-3 to -23dbm |
Transmission distance | Max.550m | Max.10km | Max.20km | Max.40km |
Input power supply | 90 to 110 VAC (50/60 Hz)/ 4.75 to 5.25 VDC | |||
Power consumption | 6W or less | |||
Operating temperature/humidity | -20 to 60°C/20 to 90% (no condensation), fan-less |
0 to 45°C / 20 to 90% (No condensation), fan-less |
||
Weight | Approx. 0.4 kg | |||
External dimensions | 67 (W) × 145 (D) × 39.5 mm (H), coating color: Black |
* Connectors and other protrusions are excluded from the external dimensions.
