Media converters
media converter

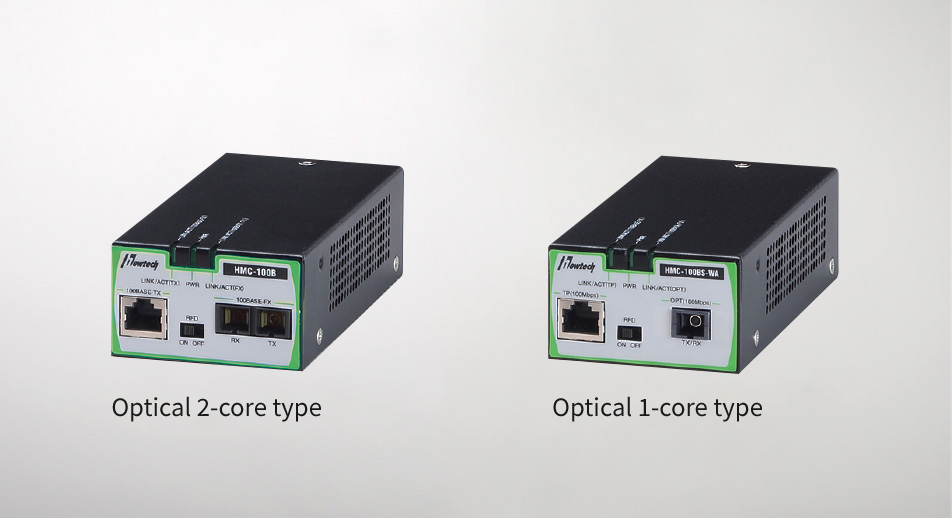

HMC-100B series (100 mega media converter)
■100BASE-TX/100BASE-FX-compliant independent media converter
■Supports Auto Negotiation and Auto MDI/MDI-X.
■Enables you to create a simple network because it has no built-in bridge functions.
■The RFD function makes it easy to detect optical cable and CAT5 cable faults.
■The LINK/ACT status of individual optical cables and CAT5 cables is indicated with an LED, making it easy to isolate faults when they occur.
■Built-in power supply assures high reliability.
■Supports a set type when combined with HMC.
■Environment-resistant design capable of withstanding -20 to 60°C
■Supports magnetic and wall fastening.
Main support functions
- MM fiber(2-core)
- SM fiber(1-core)
- 100B-TX
- 100B-FX
- RFD
- Fan-less
- Temp -20~60℃
- Internal power
Overview of media converter specifications
Model | HMC-100BM | HMC-100BS | HMC-100BM-WA HMC-100BM-WB |
HMC-100BS-WA HMC-100BS-WB |
---|---|---|---|---|
Applicable standard | IEEE802.3u(100BASE-TX) | |||
Conformance standard | EMI standard VCCI class A | |||
Twist port | 100BASE-TX 1port (RJ45) | |||
Optical port | 100BASE-FX 1 port, (SC 2-core,connector, transmission and reception separation) |
100BASE-FX 1 port, (SC 2-core,connector, transmission and reception separation) |
100BASE-FX 1 port, (SC 1-core,connector, transmission and reception separation) |
100BASE-FX 1 port, (SC 1-core,connector, transmission and reception separation) |
Applicable UTP cable | 100BASE-TX CAT5 cable or higher | |||
Applicable optical cable | Multi-mode fiber | Single-mode fiber | Multi-mode fiber | Single-mode fiber |
Optical transmission wavelength | 1310nm | 1310nm | (-WA)1260 to 1360nm (-WB)1480 to 1580nm |
(-WA)1260 to 1360nm (-WB)1480 to 1580nm |
Emitted light /received light level | -14 to -20dBm(at62.5 / 125) / -14 to -31dBm |
-8 to -15dBm /-3 to -34dBm |
-8 to -15dBm /-8 to -30dBm |
-8 to -14dBm /-3 to -33 dBm |
Transmission distance | Max.2km | Max.30km | Max.2km | Max.20km |
Input power supply | 90 to 110 VAC (50/60 Hz)/ 4.75 to 5.25 VDC | |||
Power consumption | 6W or less | |||
Operating temperature/humidity | -20 to 60°C/20 to 90% (no condensation), fan-less | |||
Weight | Approx. 0.4 kg | |||
External dimensions | 67 (W) × 145 (D) × 39.5 mm (H), coating color: Black |
* Connectors and other protrusions are excluded from the external dimensions.
