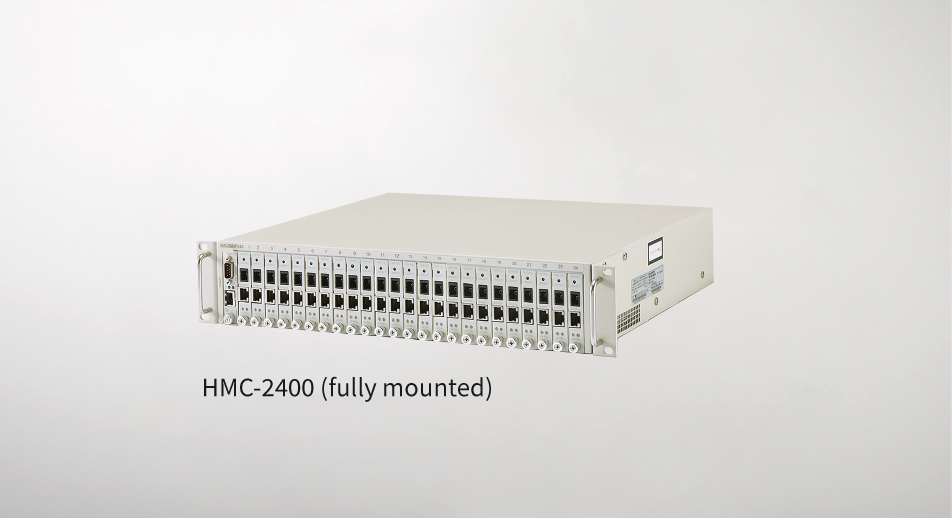

HMC-2400
■Collective media converter supporting FTTH compliant with TS-1000
■Up to 24 Medicon units (HMC-2400U-S) can be mounted
■Communication status loopback is possible in combination with HMC-400B-1.3S
■Supports flexible network construction because MAC address learning is not performed
■Redundant configuration supported by RFD function
■Supports dual power supply
■Hot swappable
-
*HMC-400B-1.5S and HMC-2400 cannot be used in combination.
*HMC-2400 is equipped with SNMP unit only
(Please prepare media converter unit and power supply unit separately)
Main support functions
- Transmission wavelength 1530nm
- Optical 1-core SC
- SM fiber
- 10/100B-TX 1 port
- Transmission distance about 20km
- SNMP
- TELNET
- Equipped with 18 slots
- Supports dual power supply
- RFD
- Hot swap
Chassis
Media converter unit
Power supply unit
Overview of media converter specifications
media converter| Model | HMC-2400 | HMC-2400U-S | HMC-2400PS-AC |
|---|---|---|---|
| Applicable standard | - | IEEE802.3,IEEE802.3u | - |
| Conformance standard | EMI standard VCCI Class A | ||
| Port | RS232C (for console), RJ45 (for TELNET) |
10BASE-T/100BASE-TX 1 port (RJ45), 100BASE-FX 1 port (SC connector) |
- |
| Applicable Cable | RS232C cable (cross), 10BASE-T CAT3 cable or higher |
10/100BASE-TX CAT5 cable or higher COM port Single mode fiber (SMF) |
- |
| Optical transmission wavelength | - | 1480 to 1580nm | - |
| Emitted light /received light level | - | -8 to -14dBm / -8 to -30dBm | - |
| Switching method | - | store & forward | - |
| Power supply | - | - | 90 to 110VAC(50/60Hz) |
| Power consumption | - | - | 150 W or less (when fully mounted) |
| Operating temperature/humidity | 0 to 40°C / 20 to 85%(no condensation) | ||
| Storage temperature/humidity | -20 to 60°C / 10 to 95%(no condensation) | ||
| approximate mass | 7kg | 0.2kg | 2.5kg |
| External dimensions | 430(W)× 410(D)× 88(H)mm | - | - |
| Accessories | ackmount hardware, slot blank panel | - | 1 power cord (2M) |
* Connectors and other protrusions are excluded from the external dimensions.
