media converter

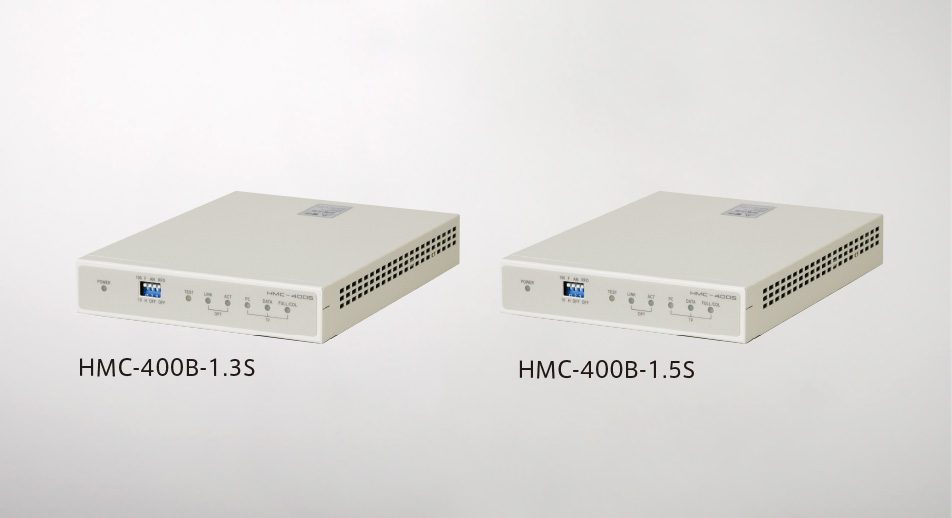

HMC-400B-1.3S/HMC-400B-1.5S

HMC-400B-1.3S

  • Standalone media converter for TS-1000 compliant FTTH

  • Communication status of HMC-400B-1.3S can be looped back in combination with HMC-2400

  • Supports flexible network construction because MAC address learning is not performed

  • Redundant configuration supported by RFD function

  • Since the optical connector is connected inside the housing, damage to the connector due to impact is avoided.

  • Equipped with fiber tray and mechanical splice function in the housing

  • Manual switching of auto-nego is possible

  • Built-in power supply

  • *HMC-400B-1.5S and HMC-2400 cannot be used in combination.

Main support functions

  • Transmission wavelength 1310nm(HMC-400B-1.3S)
  • Transmission wavelength 1530nm(HMC-400B-1.5S)
  • Optical 1-core SC
  • SM fiber
  • 10/100B-TX1 port
  • Transmission distance about 20km
  • RFD
  • manual setting
  • Internal power

Overview of media converter specifications

media converter
Model HMC-400B-1.3S HMC-400B-1.5S
Applicable standard EEE802.3u(100BASE-TX),IEEE802.3(10BASE-T)
Conformance standard EMI standard VCCI class B
Port 10BASE-T/100BASE-TX 1 port (RJ45),COM port 1 port (SC connector)
Applicable Cable CAT3 cable or higher (10BASE-T/100BASE-TX port), single mode fiber (COM port)
Optical transmission wavelength 1260 to 1360nm 1480 to 1580nm
Emitted light /received light level -8 to -14dBm / -8 to -30dBm
Switching method store & forward
Power supply 90 to 110VAC(50/60Hz)
Power consumption 10W or less
Operating temperature/humidity 0 to 40°C / 20 to 85% (no condensation)
Storage temperature/humidity -20 to 60°C / 10 to 95% (no condensation)
approximate mass 0.7kg
External dimensions 127(W)× 171(D)× 26(H)mm

* Connectors and other protrusions are excluded from the external dimensions.
