Media converters (Assembly Chassis)

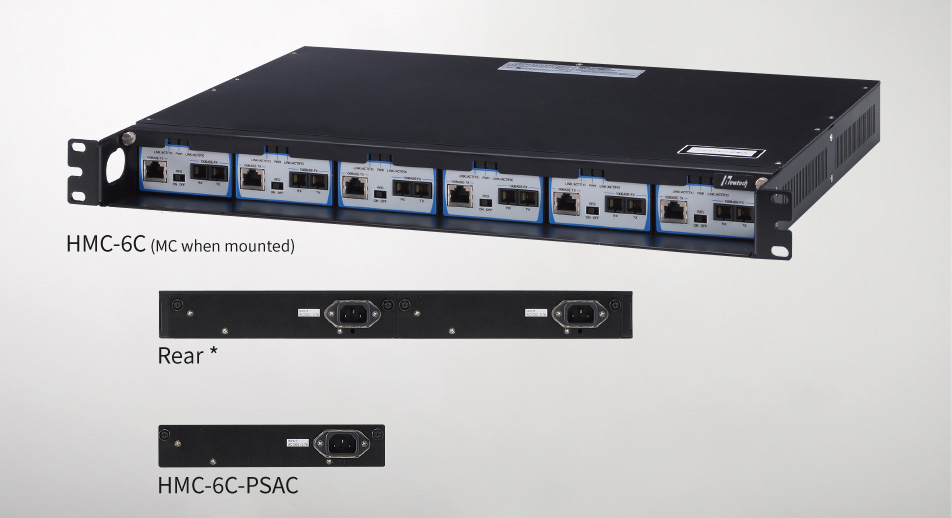

HMC-6C

  • HMC-6C is a set chassis that can house HMC-100 and HMC-1000.

  • Fan-less design can withstand temperatures of 0 to 40°C

  • By providing an offset, damage to optical cables is reduced.

  • Supports the use of a dual power supply. *

  • Supports hot swapping.

    * HMC-6C has a single power supply provided as standard.
    To configure a redundant power supply, prepare an HMC-6C-PSAC as well.

Main support functions

  • 6 slots mount
  • Dual power
  • HOTSWAP
  • Fan-less
  • 1U size
  • 19-inch rack
  • Temp 0~40℃

Overview of media converter specifications

Set type frames
Model HMC-6C (including the power supply, HMC-6C-PS)
Conformance standard EMI standard VCCI class A
Input power supply HMC-6C-PSAC (power supply) 90 to 110 VAC (50/60 Hz)
Power consumption 35W or less
Operating temperature/humidity 0 to 40°C / 20 to 80% (no condensation), fan-less
Estimated weight Approx. 5 kg
External dimensions HMC-6C (set itself) 440 (W) × 350 (D) × 44 (H) mm, coating color: Black

* Connectors and other protrusions are excluded from the external dimensions.
