NETWORK EQUIPMENT

2.5G multi-giga PoE switch hub

HS-2105SA-2X-PW

HS-2105SA-2X-PW

Interface

  • 100/1G/2.5G/PoE+× 5
  • SFP+(10G)× 2

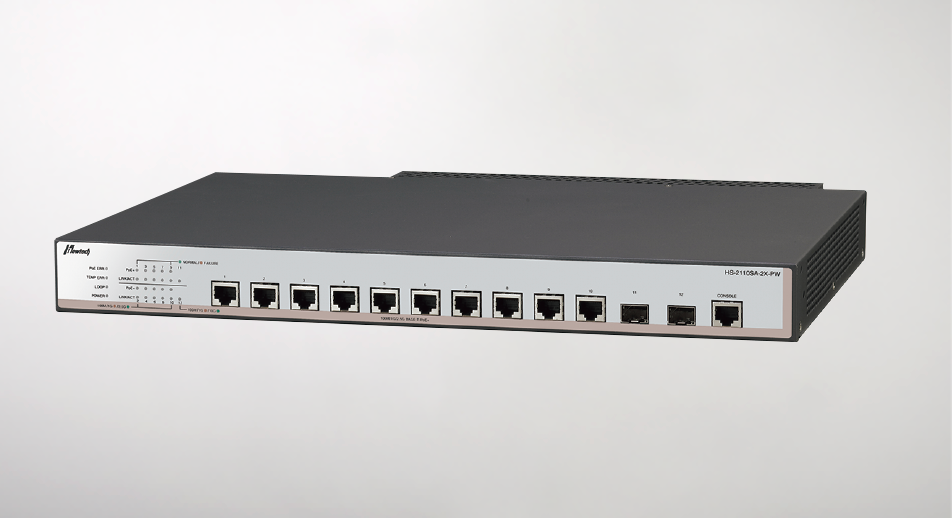

HS-2110SA-2X-PW

HS-2110SA-2X-PW

Interface

  • 100/1G/2.5G/PoE+× 10
  • SFP+(10G)× 2

Main support functions

  • VLAN
  • QoS
  • STP/RSTP
  • Isolate
  • Static LAG
  • LACP
  • IGMP snooping
  • Ring redundancy
  • Loop guard
  • PoE
  • PoE-PD
  • SNMP
  • Telnet
  • SSH
  • Web
  • DHCP
  • NTP
  • Syslog
  • Log storage
  • NAT
  • VPN
  • 50℃ support
  • Fan-less
  • Magnet

Main features

  • Multi-rate support (100M/1G/2.5G)

  • 10G uplink port (SFP+ provided)

  • Support of WiFi6 effective throughput 2.402 Gbps

  • PoE+ power supply to WiFi6 radio AP is possible.

  • Support of high-speed access to higher layer and optical long-distance transmission

  • Port connection monitoring function

  • Fan-less quiet design

  • High temperature support (+50°C)


Switch HUB specifications
Model HS-2105SA-2X-PW HS-2110SA-2X-PW
Interface 10/100BASE-TX - -
10/100/1000BASE-T - -
100/1000/2.5GBASE-T 5 10
10GBASE-T - -
1000BASE-X - -
SFP port - -
SFP+ port 2(10G) 2(10G)
Performance Switching capacity [Gbps] 65G 90G
Switching method Store & forward
Transfer packet size [bytes] 64 to 9600
Buffer capacity [bytes] 2MB
Number of MAC address tables 32k
Port function Auto negotiation
Force Speed and duplex
Auto MDI/MDIX
Force MDI/MDIX
Flow control/EAP and BPDU transparent ○/○
Port Isolate
Port mirroring
LOOP guard
EEE(IEEE802.3az)
VLAN Port VLAN
Tag VLAN
Number of VLANs 64
Number of managed VLANs 1
QinQ -
QoS Number of queues 4
QoS
Band limitation
Spanning tree STP(IEEE802.1D) -
RSTP(IEEE802.1w) -
MSTP(IEEE802.1s) -
Redundancy function Static LAG
LACP(IEEE802.3ad) -
Ring redundancy -
Multicast IGMP snooping -
MLD snooping -
Security 802.1X -
RADIUS -
ACL -
Management function CLI
Web interface -
Telnet
SSH -
TFTP
FTP -
Syslog
Log storage
SNMPv1/v2/v3 -
RMON -
DHCP -
NTP
PoE PoE(IEEE802.3af)
PoE+(IEEE802.3at)
Maximum power supply (port) 30W 30W
Maximum power supply (equipment) 90W 180W
PD power reception -
Hardware External dimensions (W×D×H) [mm] 330×265×42.5 420×300×42.5
Weight 2.5kg 5.0kg
Input power supply 100VAC(50/60Hz)
Maximum power consumption 150W 250W
Power supply redundancy -
Fan-less
Operating temperature/humidity(no condensation) 0 to 50℃
/10 to 90%

* The rack mount bracket, connectors, and other protrusions are excluded from the external dimensions.
