NETWORK EQUIPMENT
Intelligent giga-switch HUB

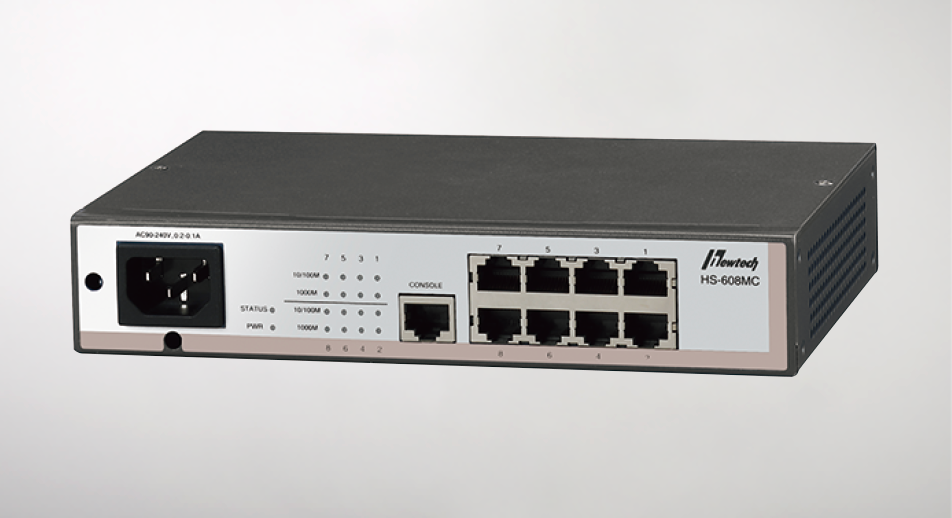

HS-608MC
Interface
- 10/100/1000× 8

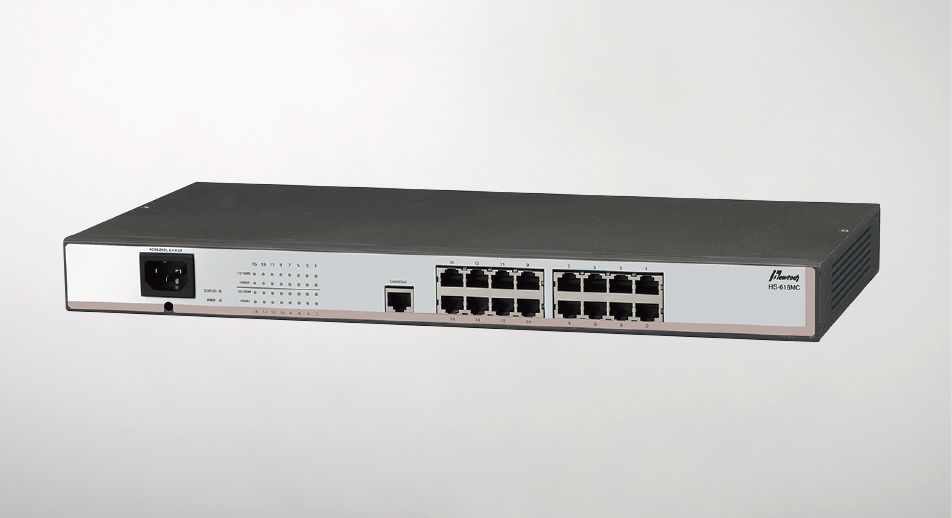

HS-616MC
Interface
- 10/100/1000× 16

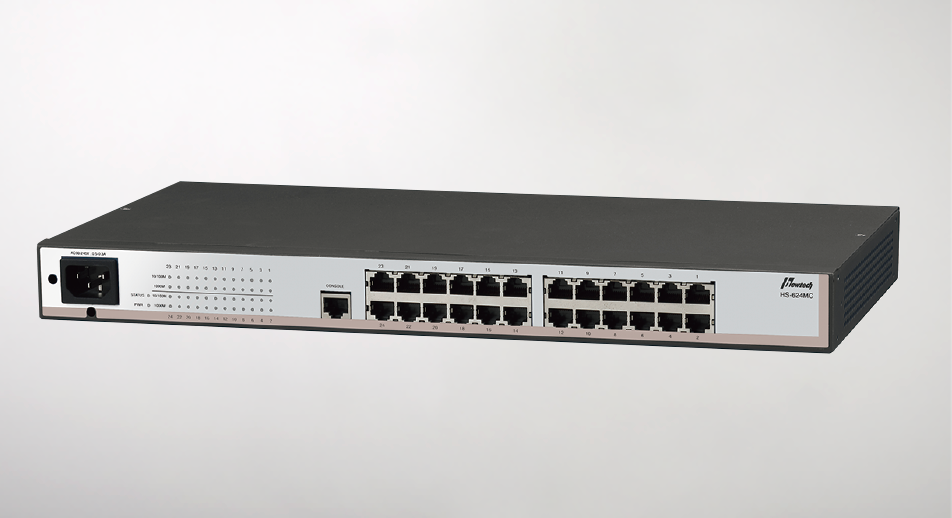

HS-624MC
Interface
- 10/100/1000× 24
Main supported functions
- VLAN
- QoS
- STP/RSTP
- Isolate
- Static LAG
- LACP
- IGMP snooping
- Ring redundancy
- Loop guard
- PoE
- PoE-PD
- SNMP
- Telnet
- SSH
- Web
- DHCP
- NTP
- Syslog
- Log storage
- NAT
- VPN
- 45℃ support
- Fan-less
- Magnet
Switch HUB specifications
| Model | HS-608MC | HS-616MC | HS-624MC | |
|---|---|---|---|---|
| Interface | 10/100BASE-TX | - | - | - |
| 10/100/1000BASE-T | 8 | 16 | 24 | |
| 1000BASE-X | - | - | - | |
| SFP port | - | - | - | |
| SFP+ port | - | - | - | |
| Performance | Switching capacity [Gbps] | 16 | 32 | 48 |
| Switching method | Store & forward | |||
| Transfer packet size [bytes] | 64～9600 | |||
| Buffer capacity [bytes] | 512k | |||
| Number of MAC address tables | 8k | |||
| Port function | Auto negotiation | ○ | ||
| Force Speed and duplex | ○ | |||
| Auto MDI/MDIX | ○ | |||
| Force MDI/MDIX | - | |||
| Flow control/EAP and BPDU transparent | ○/○ | |||
| Port Isolate | ○ | |||
| Port mirroring | ○ | |||
| LOOP guard | ○ | |||
| EEE(IEEE802.3az) | - | |||
| VLAN | Pord VLAN | ○ | ||
| Tag VLAN | ○ | |||
| Number of VLANs | 256 | |||
| Number of managed VLANs | 1 | |||
| QinQ | - | |||
| QoS | Number of queues | 8 | ||
| QoS | ○ | |||
| Band limitation | ○ | |||
| Spanning tree | STP(IEEE802.1D) | ○ | ||
| RSTP(IEEE802.1w) | ○ | |||
| MSTP(IEEE802.1s) | - | |||
| Redundancy function | Static LAG | ○ | ||
| LACP(IEEE802.3ad) | ○ | |||
| Ring redundancy | - | |||
| Multicast | IGMP snooping | ○ | ||
| MLD snooping | - | |||
| Security | 802.1X | - | ||
| RADIUS | - | |||
| ACL | - | |||
| Management function | CLI | ○ | ||
| Web interface | ○ | |||
| Telnet | ○ | |||
| SSH | ○ | |||
| TFTP | ○ | |||
| FTP | - | |||
| Syslog | ○ | |||
| Log storage | ○ | |||
| SNMPv1/v2/v3 | ○ | |||
| RMON | - | |||
| DHCP | DHCP client only | |||
| NTP | SNTP only | |||
| PoE | PoE(IEEE802.3af) | - | ||
| PoE+(IEEE802.3at) | - | |||
| Maximum power supply (port) | - | |||
| Maximum power supply (equipment) | - | |||
| PD power reception | - | |||
| Hardware | External dimensions (W×D×H) [mm] | 210×145×41 | 420×210×41 | |
| Weight | 0.7kg | 2.6kg | 2.7kg | |
| Input power supply | AC100～240V(50/60Hz) | |||
| Maximum power consumption | 9.0W | 13W | 19W | |
| Power supply redundancy | - | |||
| Fan-less | ○ | |||
| Operating temperature/humidity (no condensation) |
0～50°C/20～85% | 0～45°C/20～85% | ||
* The rack mount bracket, connectors, and other protrusions are excluded from the external dimensions.
