NETWORK EQUIPMENT
Non-intelligent giga-switch HUB

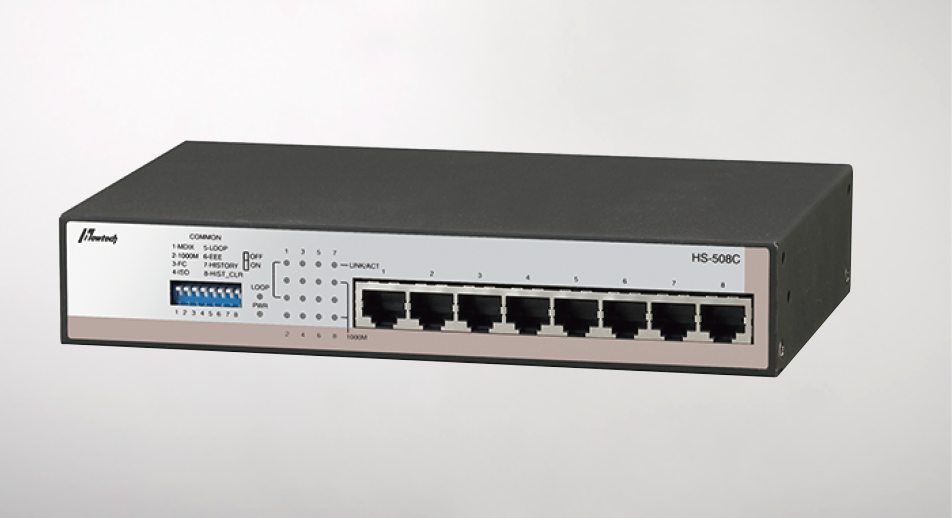

HS-508C
Interface
- 10/100/1000× 8

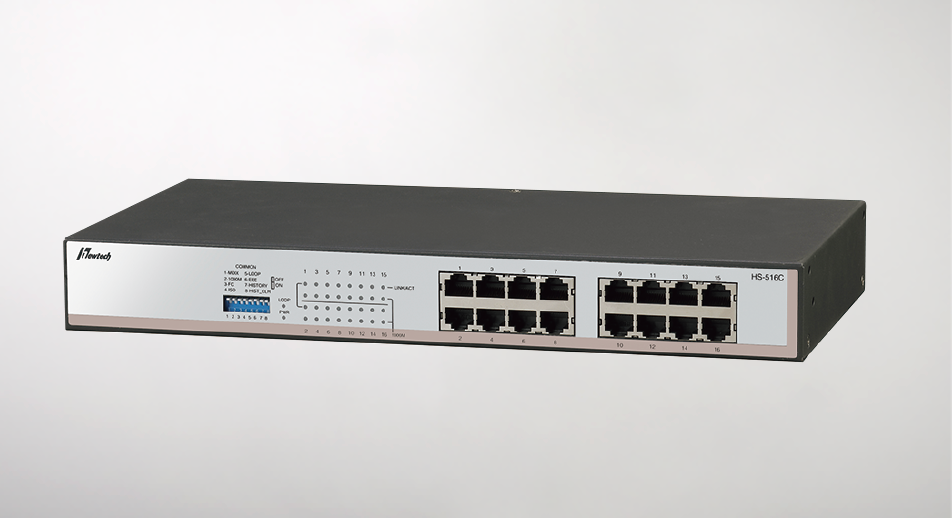

HS-516C
Interface
- 10/100/1000× 16

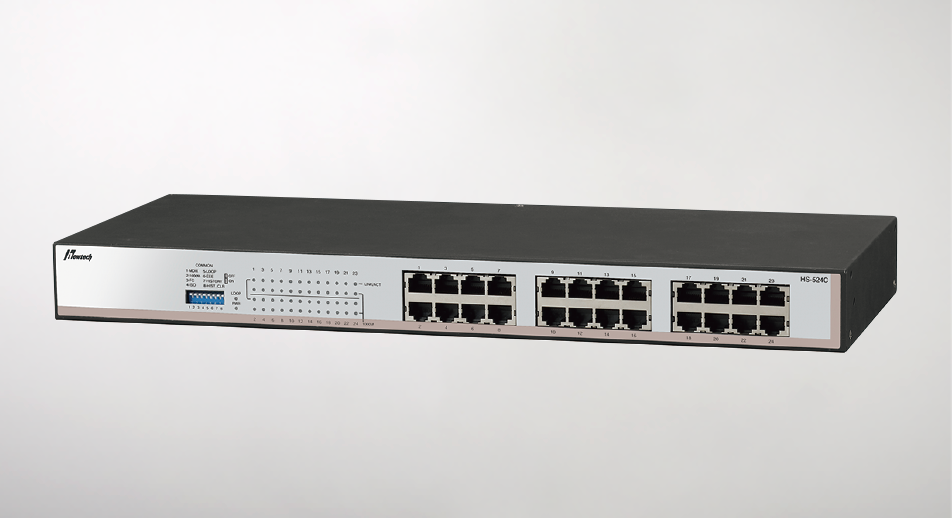

HS-524C
Interface
- 10/100/1000× 24
Main supported functions
- VLAN
- QoS
- STP/RSTP
- Isolate
- Static LAG
- LACP
- IGMP snooping
- Ring redundancy
- Loop Guard
- PoE
- PoE-PD
- SNMP
- Telnet
- SSH
- Web
- DHCP
- NTP
- Syslog
- Log strage
- NAT
- VPN
- 50℃ support
- Fan-less
- Magnet
Main features

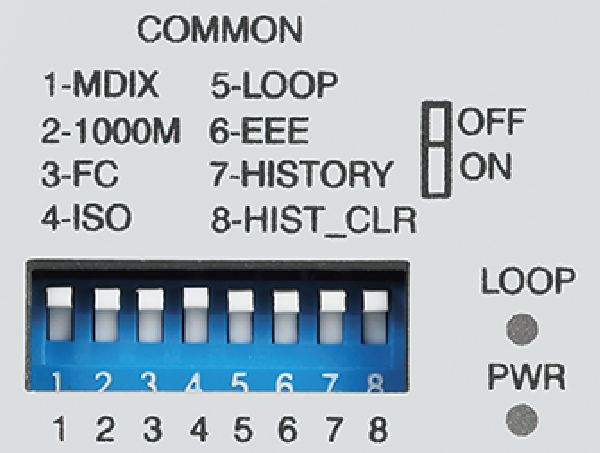

■In case of loop connection of the LAN cable, the target port is blocked.
(Multi-port loop detection function support/DIP switch setting)■Communication between ports other than uplink ports is blocked.
(Port isolation function support/DIP switch setting)■Force MDIX SW (DIP switch setting)
■Flow control function support (DIP switch setting) Power-saving Ethernet (EEE) support
■AC power cord fastening band
(power cord disconnection prevention)■Fan-less (up to 50°C)
Switch HUB specifications
| Model | HS-508C | HS-516C | HS-524C | |
|---|---|---|---|---|
| Interface | 10/100BASE-TX | - | - | - |
| 10/100/1000BASE-T | 8 | 16 | 24 | |
| 1000BASE-X | - | - | - | |
| SFP port | - | - | - | |
| SFP+ port | - | - | - | |
| Performance | Switching capacity [Gbps] | 16G | 32G | 48G |
| Switching method | Store & forward | |||
| Transfer packet size [bytes] | 64～10000 | |||
| Buffer capacity [bytes] | 176k | |||
| Number of MAC address tables | 8k | |||
| Port function | Auto negotiation | ○ | ||
| Force Speed and duplex | - | |||
| Auto MDI/MDIX | ○ | |||
| Force MDI/MDIX | MDIX only | |||
| Flow control/EAP and BPDU transparent | ○/○ | |||
| Port Isolate | ○ | |||
| Port mirroring | - | |||
| LOOP guard | ○ | |||
| EEE(IEEE802.3az) | ○ | |||
| VLAN | Pord VLAN | - | ||
| Tag VLAN | - | |||
| Number of VLANs | - | |||
| Number of managed VLANs | - | |||
| QinQ | - | |||
| QoS | Number of queues | - | ||
| QoS | - | |||
| Band limitation | - | |||
| Spanning tree | STP(IEEE802.1D) | - | ||
| RSTP(IEEE802.1w) | - | |||
| MSTP(IEEE802.1s) | - | |||
| Redundancy function | Static LAG | - | ||
| LACP(IEEE802.3ad) | - | |||
| Ring redundancy | - | |||
| Multicast | IGMP snooping | - | ||
| MLD snooping | - | |||
| Security | 802.1X | - | ||
| RADIUS | - | |||
| ACL | - | |||
| Management function | CLI | - | ||
| Web interface | - | |||
| Telnet | - | |||
| SSH | - | |||
| TFTP | - | |||
| FTP | - | |||
| Syslog | - | |||
| Log storage | - | |||
| SNMPv1/v2/v3 | - | |||
| RMON | - | |||
| DHCP | - | |||
| NTP | - | |||
| PoE | PoE(IEEE802.3af) | - | - | - |
| PoE+(IEEE802.3at) | - | - | - | |
| Maximum power supply (port) | - | - | - | |
| Maximum power supply (equipment) | - | - | - | |
| PD power reception | - | - | - | |
| Hardware | External dimensions (W×D×H) [mm] | 210×135×39.2 | 330×170×42.2 | 420×170×42.2 |
| Weight | 0.9kg | 1.6kg | 2.0kg | |
| Input power supply | AC100V(50/60Hz) | |||
| Maximum power consumption | 6.0W | 12W | 17W | |
| Power supply redundancy | - | |||
| Fan-less | ○ | |||
| Operating temperature/humidity (no condensation) |
0～50°C /20～85% |
|||
* The rack mount bracket, connectors, and other protrusions are excluded from the external dimensions.
