BROADCAST CABLES

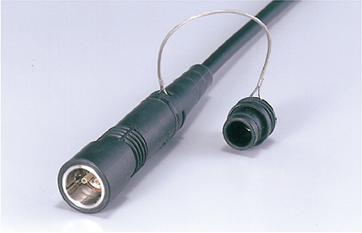

Optical camera cables
TAJIMI specifications

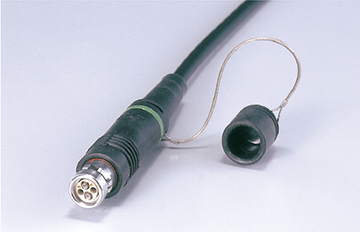

- OPS2401-P
- OPS2403-J
| Shape | Product | Cable | Length (m) |
|---|---|---|---|
|
2SM-9.2-37.5-OPS-P-J-10M | 2SM-9.2-37.5 | 10 |
| 2SM-9.2-37.5-OPS-P-J-20M | 20 | ||
| 2SM-9.2-37.5-OPS-P-J-50M | 50 | ||
| 2SM-9.2-37.5-OPS-P-J-100M | 100 | ||
| 2SM-16-37.5-OPS-P-J-30M | 2SM-16-37.5 | 30 | |
| 2SM-16-37.5-OPS-P-J-50M | 50 |

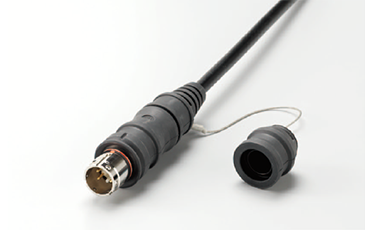

LEMO specifications

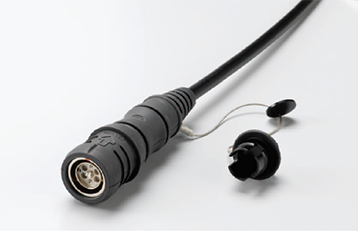

- FUW
- PUW
| Shape | Product | Cable | Length (m) |
|---|---|---|---|
|
2SM-9.2-37.5-FUW-PUW-10M | 2SM-9.2-37.5 | 10 |
| 2SM-9.2-37.5-FUW-PUW-20M | 20 | ||
| 2SM-9.2-37.5-FUW-PUW-50M | 50 | ||
| 2SM-9.2-37.5-FUW-PUW-100M | 100 | ||
| 2SM-16-37.5-FUW-PUW-30M | 2SM-16-37.5 | 30 | |
| 2SM-16-37.5-FUW-PUW-50M | 50 |
Uses
・A single cable supports the simultaneous transmission of various types of data.
Features
- 1OPS2401-P and OPS2403-J are connectors made by TAJIMI ELECTRONICS CO., LTD.
- 2FUW and PUW are connectors made by LEMO S.A. of Switzerland.
- 3Connect OPS2401-P and FUW to the camera head side.
- 4Connect OPS2403-J and PUW to the CCU (base station) side.
- 5You can identify a connector from its color ring (green, red, blue, black, or ring not attached).
- 6Connectors are made of stainless steel.
* "TAJIMI" refers to TAJIMI ELECTRONICS CO., LTD.
* "LEMO" refers to LEMO S.A. of Switzerland.
* "LEMO" refers to LEMO S.A. of Switzerland.
Optical camera conversion cables and TAJIMI/LEMO conversion
| Shape | Product | Cable | Length (m) |
|---|---|---|---|
|
2SM-9.2-37.5-P-PUW-2M | 2SM-9.2-37.5 | 2 |
| 2SM-9.2-37.5-P-PUW-5M | 5 | ||
|
2SM-9.2-37.5-FUW-J-2M | 2SM-9.2-37.5 | 2 |
| 2SM-9.2-37.5-FUW-J-5M | 5 |
Uses
・Optical connector conversion
Features
- Connectors are not compatible. Conversion cables are required if the optical connectors of the pieces of equipment to be used are different.
* "TAJIMI" refers to TAJIMI ELECTRONICS CO., LTD.
* "LEMO" refers to LEMO S.A. of Switzerland.
* "LEMO" refers to LEMO S.A. of Switzerland.

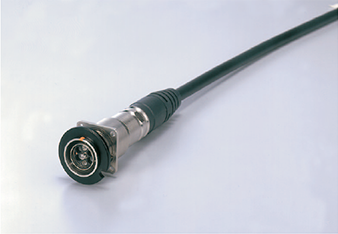

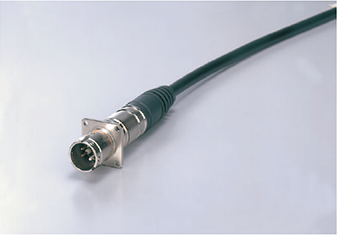

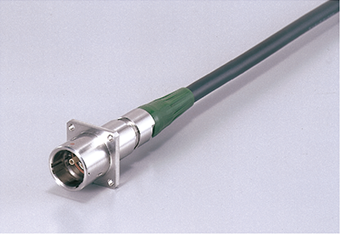

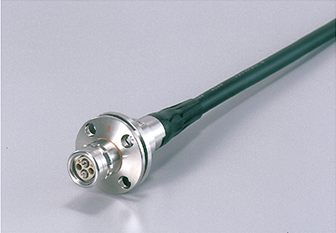

Optical camera cables with flanges
- OPS2406-PP
- OPS2405-PJ
- FMW
- PBW
Uses
・Custom optical connector cable
Features
- 1FMW, PBW, OPS2406-PP, and OPS2405-PJ do not have boots.
- 2You can identify a connector from its color ring (green, red, gray, black, or ring not attached).
- 3Connectors are made of stainless steel.
- 4We will configure the connector combinations according to your specifications.
Contact us for details.

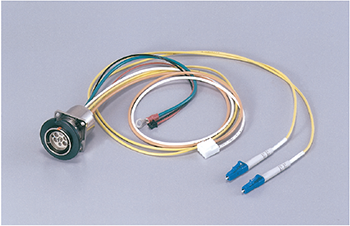

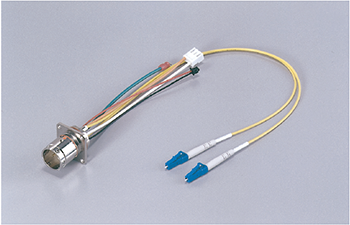

Optical composite harness
OPS2404-PR
| Shape | Product | Length (m) |
|---|---|---|
|
OPS2404-PR-LC-1M | 1 |
| OPS2404-PR-LC-2M | 2 |
OPS2402-R
| Shape | Product | Length (m) |
|---|---|---|
|
OPS2402-R-LC-1M | 1 |
| OPS2402-R-LC-2M | 2 |

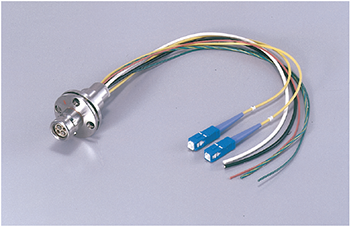

FXW
| Shape | Product | Length (m) |
|---|---|---|
|
FXW-SC-1M | 1 |
| FXW-SC-2M | 2 |

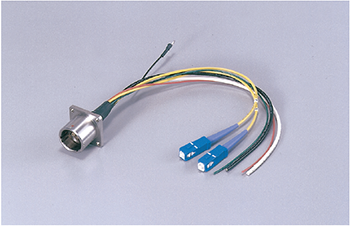

EDW
| Shape | Product | Length (m) |
|---|---|---|
|
EDW-SC-1M | 1 |
| EDW-SC-2M | 2 |
Uses
・Optical transmission harness
Feature
- 1OPS2404-PR and OPS2402-R are connectors made by TAJIMI ELECTRONICS CO., LTD.
- 2FXW and EDW are connectors made by LEMO S.A. of Switzerland.
- 3OPS2404-PR and FXW are used with the CCU and external terminal boards.
- 4OPS2402-R and EDW are used on the camera head side.
- 5The photos show processing examples for reference. We will configure the equipment to your desired specifications regarding parts, dimensions, etc.
- 6Connectors are made of stainless steel.

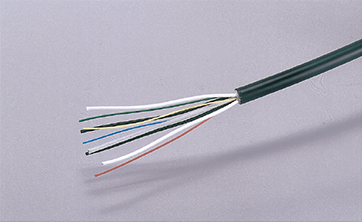

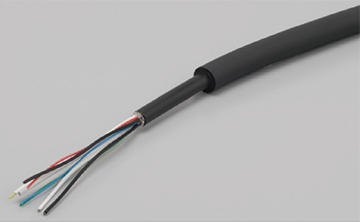

Overview
Broadcast camera cables established by the Association of Radio Industries and Businesses (ARIB).
Features
- The f9.2 cable is highly versatile, and can be used as a handy camera cable, for fixed wiring and as a relay cable, as a patch cable, and so on.
- The f16 cable is used as a large-size camera cable for studios.
- This cable has a large outside diameter, with a sheath thicker than that of the f9.2 cable, to prevent it becoming caught in a pedestal.
- Model:2SM-9.2-37.5
- Model:2SM-16-37.5

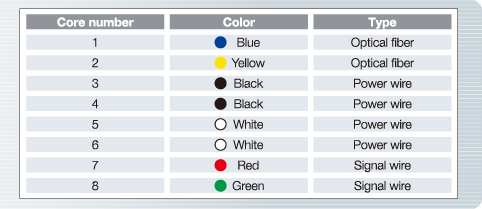

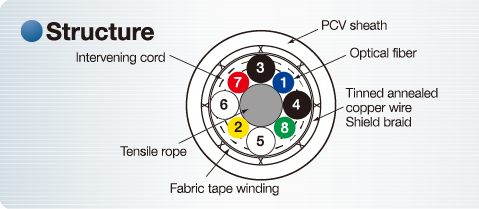

| Model | 2SM-9.2-37.5 | 2SM-16-37.5 | |||
|---|---|---|---|---|---|
| Core number | 1, 2 | 1, 2 | |||
| Strand | SM-9.5/125 | SM-9.5/125 | |||
| Core | Outside diameter mm | 0.9 | 0.9 | ||
| Color | Blue, yellow | Blue, yellow | |||
| Core type | Power wire | Signal wire | Power wire | Signal wire | |
| Core number | 3～6 | 7, 8 | 3～6 | 7, 8 | |
| Conductor | Cross-sectional area mm² | 0.525 | 0.18 | 0.525 | 0.18 |
| Configuration conductors/mm | 21/0.18T | 7/0.18T | 21/0.18T | 7/0.18T | |
| Outside diameter mm | 0.96 | 0.54 | 0.96 | 0.54 | |
| Insulator | Thickness mm | 0.42 | 0.30 | 0.42 | 0.30 |
| Outside diameter mm | 1.80 | 1.14 | 1.80 | 1.14 | |
| Color | Black, white | Red, green | Black, white | Red, green | |
| Tensile rope | Material/Outside diameter mm/Color | Steel wire/2.40/Natural color | Steel wire/2.40/Natural color | ||
| Shield | Type | Braid | Braid | ||
| Sheath | Outside diameter mm | 9.2(max9.5) | 16(max16.5) | ||
| Color | Standard color: Black | Standard color: Black | |||
| Estimated weight | kg/km | 114 | 291 | ||
| Core type | Optical fiber | power line | Signal line |
|---|---|---|---|
| Core number | 1,2 | 3～6 | 7,8 |
| Operating voltage VAC | － | 300 or less | 125 or less |
| Operating temperature ℃ | 60 or less | ||
| Test voltage VAC/minute | － | 1000 | 500 |
| Insulation resistance MW・km | － | 10000 or greater | 10000 or greater |
| Conductor resistance 20°C W/km | － | 37.5 or less | 113 or less |
| Transmission loss dB/km | （λ＝1.3μm）0.5 or less | － | － |
