Power cords common for North America and Japan
- Caution
- The act of selling power cords certified by a North American standard (UL or c-UL) in Japan violates the Electrical Appliances and Materials Safety Act. The power cords presented below have achieved both the UL/c-UL and PSE certification and can be used in both North America and Japan.
2-pole grounded type Common power cords certified by UL/c-UL/PSE
VM0600(with thermosetting resin base)  |
7A-125V |
Standard color  SVT / HVCTF3×18AWG（0.8mm²） |
7A-125V | VM0624 Retaining measure  |
VM0602(with thermosetting resin base)  |
13A-125V |
Standard color SJT / HVCTF3×16AWG（1.3mm²） |
13A-125V | VM0291 Retaining measure  |

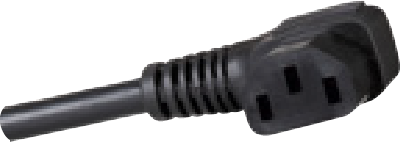

VM0290  |
||||
VM0616(with thermosetting resin base)  |
15A-125V |
Standard color SJT / HVCTF3×14AWG（2.0mm²） |
15A-125V | VM0293  |
VM0623  |
For information about receptacles and inlets, see Power Cords and Power Supply Components
in the electronic catalog available from our website.
For VM0600 to VM0624, only cord sets are available.
Retaining measure: Combination of CM11, CM42, and CM42B
Power cords for medical equipment (hospital grade)
VM0275  |
13A-125V |
Standard color SJT / HVCTF3×16AWG（1.3mm²） |
13A-125V | VM0290  |
VM0291 Retaining measure |
Retaining measure: Combination of CM11, CM42, and CM42B
Plug and connector dimensions(mm)
|
VM0600 VM0602 VM0616 |
|
| VM0275 |
|
|
VM0624 VM0290 VM0291 VM0293 |
|
| VM0623 |
|
