Power cords for Japan
ES08 series
PSE small connectors (standard type/waterproof type)
Despite their slimness, the power cords of the ES08 series have achieved the Electrical Appliances and Materials Safety Act (PSE) certification and are ideal for power supply connection in a narrow space inside and outside the equipment. The waterproof type features an excellent waterproof and dustproof structure and can be used in a moist or dusty environment.

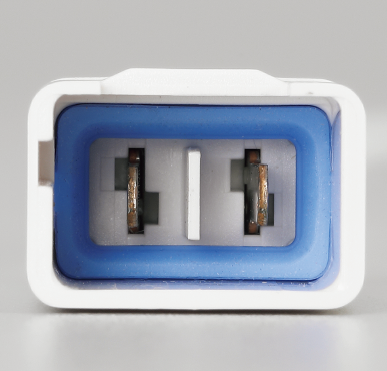

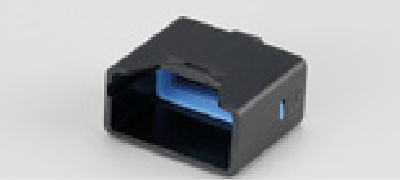

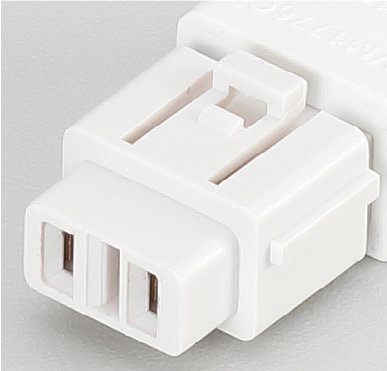

Product example

- ●Waterproof and dustproof performance
- The waterproof type supports IP67 when connected.
- ●Certified under the Electrical Appliances and Materials Safety Act (PSE)
- The product has achieved the Electrical Appliances and Materials Safety Act (PSE) certification and is ideal for power supply connection outside the equipment. It is also hot-swappable.
- ●Slim body suitable for cabling in a narrow space
- The product has a slim, smooth body, which does not easily get caught on wires and other surrounding objects during cabling.
- ●Locking structure
- The connector clicks into place, which helps you make sure that it is not poorly connected or does not disconnect.
- ●Wrong connection prevention key
- The key structure prevents the connector from being connected in the wrong way.
- ●Extensive wire lineup
- From multiple wire types, you can select the one appropriate for your purpose.
Gene ral specifications | |
---|---|
Number of poles | 2 poles or 3 poles (2 poles grounded) |
Electrical rating | 8A-250V |
Operating temperature range | -10 to 60°C |
Insulation resistance | 500 MΩ or more (measured at 500 VDC) |
Withstanding voltage | Dielectric breakdown shall not occur at 1500 VAC/minute. |
Acquired certification | Electrical Appliances and Materials Safety Act (PSE) |
Protection grade | IP67 (waterproof type only) |
![]() |
![]() |
![]() |
Locking structure | Waterproof seal* | O-ring* |
* Waterproof type only
Precautions for use
- ・The outlet plug is not waterproof.
- ・The electrical rating of the outlet plug is 7 A at 125 VAC.
- ・Disconnecting the connector by pulling it forcibly may damage the connector. If you have difficulty pulling the connector, push it in lightly to unlock it and then try pulling it.
- ・The receptacle and cap are not covered by the Electrical Appliances and Materials Safety Act.

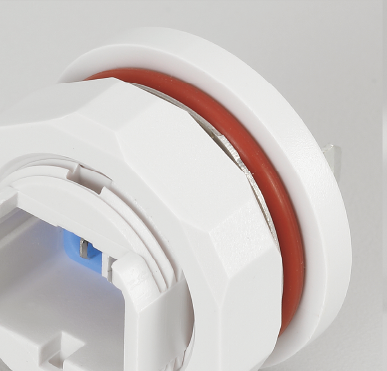

- ・The waterproof seal and O-ring do not accompany the standard type product.
- ・Fasten the receptacle with the specified tightening torque and retighten it periodically.
- ・A white connector may have black spots appear on its surface due to the nature of its material. These black spots do not affect its characteristics.
- ・When using the connector in an environment that a chemical substance or oil may splash over it, contact us beforehand.
- ・The contents of this catalog may be subject to change without prior notice.

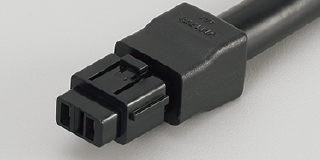

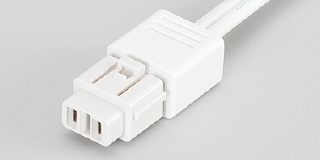

2-pole connectors

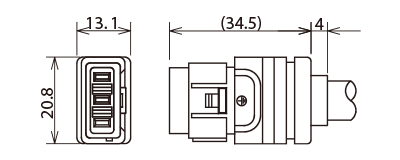

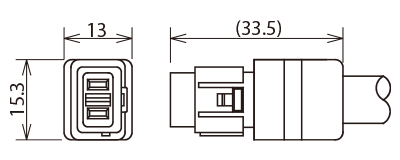

Appearance | Color | Dimensions (mm) | Wire type | Standard type | Waterproof type |
---|---|---|---|---|---|
![]() |
Black/white | ![]() |
HVCTF 2×0.75sq | VM1776A | VM1775A |
HVCTFK 2×0.75sq | VM1776B | VM1775B | |||
HVFF 2×0.75sq | VM1776C | VM1775C | |||
![]() |
Black/white | ![]() |
VCT 2×0.75sq | VM1778 | VM1782 |

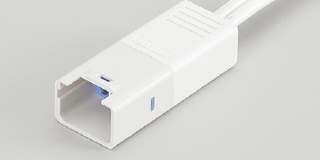

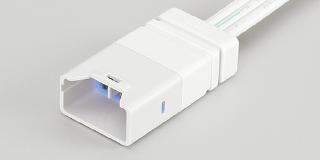

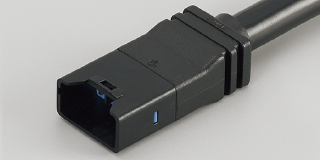

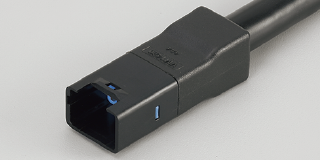

2-pole plugs

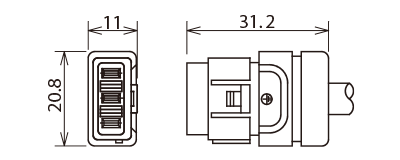

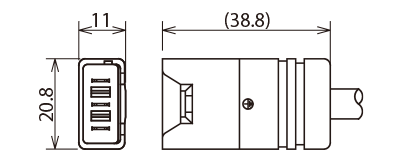

Appearance | Color | Dimensions (mm) | Wire type | Standard type | Waterproof type |
---|---|---|---|---|---|
![]() |
Black/white | ![]() |
HVCTF 2×0.75sq | VM1418A | VM1417A |
HVCTFK 2×0.75sq | VM1418B | VM1417B | |||
HVFF 2×0.75sq | VM1418C | VM1417C | |||
![]() |
Black/white | ![]() |
VCT 2×0.75sq | VM1420 | VM1423 |

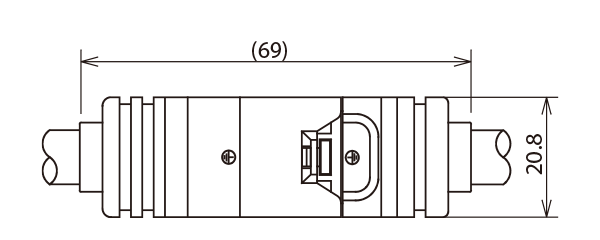

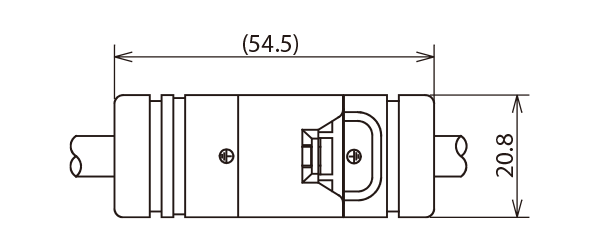

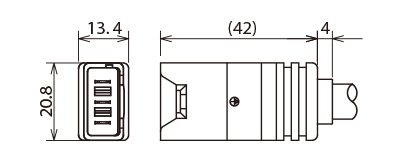

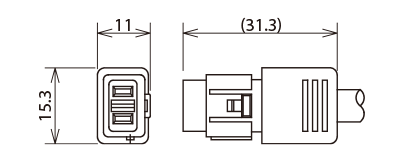

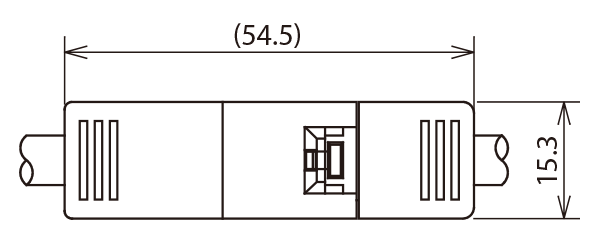

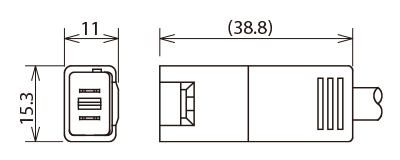

2-pole relay connection dimensions
VM1776□/VM1418□、VM1775□/VM1417□
VM1778/VM1420、VM1782/VM1423

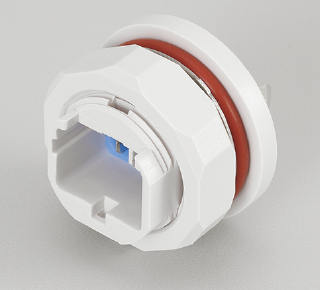

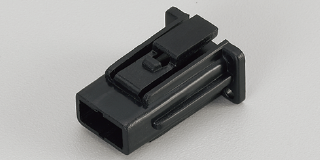

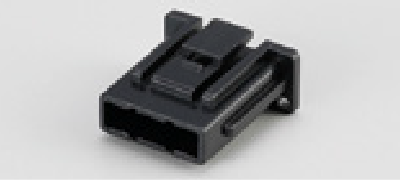

2-pole receptacles

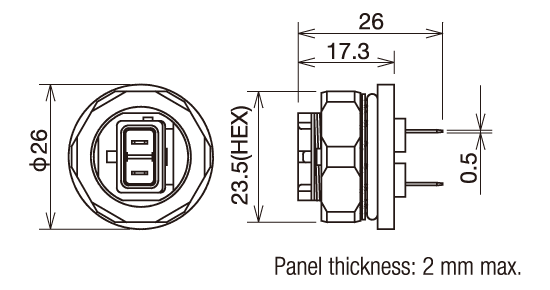

Appearance | Color | Dimensions (mm) | Connection type | Standard type | Waterproof type |
---|---|---|---|---|---|
![]() |
Black/white | ![]() |
187 Faston terminal (t0.5) or wire soldering |
CM-61 | CM-59 |

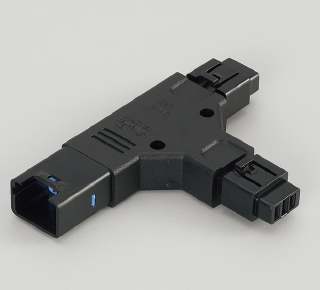

2-pole T junction

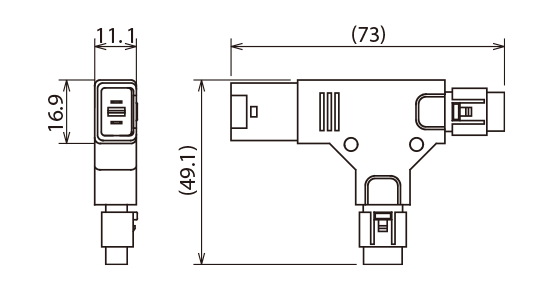

Appearance | Color | Dimensions (mm) | Standard type | Waterproof type |
---|---|---|---|---|
![]() |
Black/white | ![]() |
CM-62 | CM-63 |

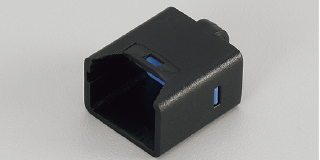

2-pole connector caps
Appearance | Color | Dimensions (mm) | Waterproof type |
---|---|---|---|
![]() |
Black | ![]() |
CM-66 |
2-pole plug caps
Appearance | Color | Dimensions (mm) | Waterproof type |
---|---|---|---|
![]() |
Black | ![]() |
CM-64 |

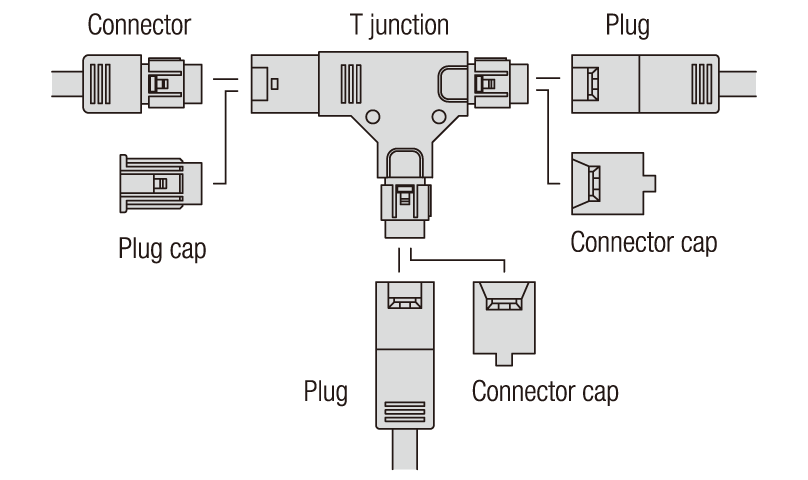

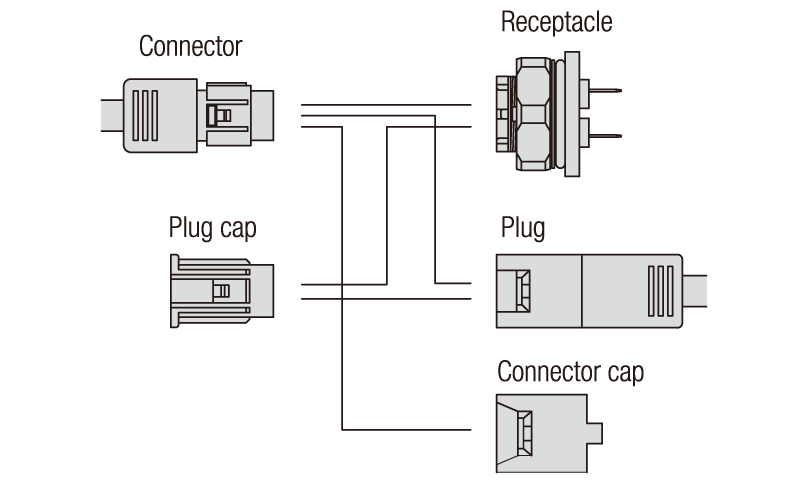

2-pole connector combinations

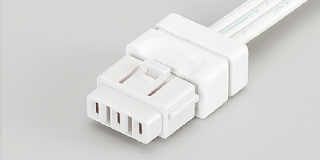

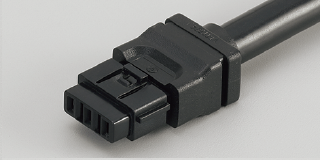

3-pole connectors
Appearance | Color | Dimensions (mm) | Wire type | Standard type | Waterproof type |
---|---|---|---|---|---|
![]() |
Black/white | ![]() |
HVCTF 3×0.75sq | VM1780A | VM1783A |
HVFF 3×0.75sq | VM1780B | VM1783B | |||
![]() |
Black/white | ![]() |
VCT 3×0.75sq | VM1781 | VM1784 |
3-pole plugs
Appearance | Color | Dimensions (mm) | Wire type | Standard type | Waterproof type |
---|---|---|---|---|---|
![]() |
Black/white | ![]() |
HVCTF 3×0.75sq | VM1421A | VM1424A |
HVFF 3×0.75sq | VM1421B | VM1424B | |||
![]() |
Black/white | ![]() |
VCT 3×0.75sq | VM1422 | VM1425 |

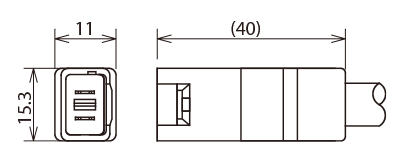

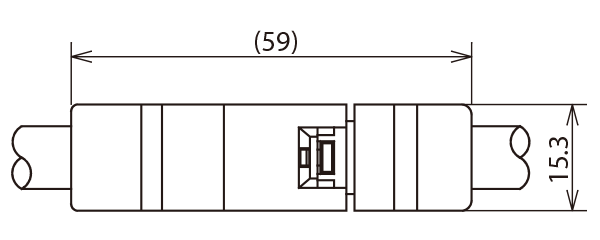

3-pole relay connection dimensions
VM1780□/VM1421□、VM1783□/VM1424□
VM1781/VM1422、VM1784/VM1425
