ER15 Series Patented
PSE High-Capacity Waterproof Connector
The ER15 series is a PSE compliant waterproof connector ideal for power supply connection outside the equipment in an outdoor environment.
Waterproof and dustproof performance
-
This connector provides IP68 performance when connected. Putting a dedicated cap on when not in use maintains waterproof performance.
Electrical Appliances and Materials
Safety Act compliant product (PSE mark)
-
The product is PSE compliant and ideal for connection with an external power supply. It is also hot-swappable.
- 【！】Using a connector not compliant with PSE in a commercial power supply of 100 or 200 VAC violates the Electrical Appliances and Materials Safety Act.

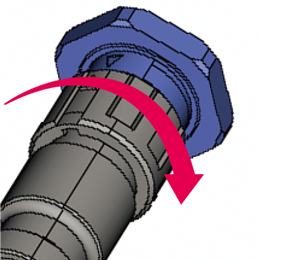

Bayonet lock
-
A bayonet lock is adopted for quick insertion and connection.
This prevents the connector from falling off during the operation.
Sequence structure
-

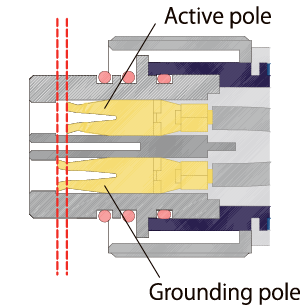

A sequence structure is employed whereby the grounding pole comes in contact first when connected. This allows the connector to be plugged and unplugged safely even when the power is on.
Weather-resistant cable
-
The connector uses a weather-resistant HVCT cable and can be used outdoors.
Molded together with the cable
-
Molded together with the cable, the entire harness can offer a performance guarantee. We will be happy to accommodate requests for terminal processing as well.
| Cable specifications | |
|---|---|
| Type | HVCT 3 cores x 2 mm2 |
| Insulator outer diameter | 3.4 mm |
| Sheath outer diameter | 10.9 mm |
| Rated voltage | 600V |
| Rated temperature | 75℃ |
| Acquired certification | Electrical Appliances and Materials Safety Act (PSE) |
| Color | Black |
| Plug and connector specifications | |
|---|---|
| Number of poles | 3 poles (2 poles grounded) |
| Electrical rating | 15A - 250V |
| Operating temperature range | -10 to 60℃ |
| Insulation resistance | 100 MΩ or more (measured at 500 VDC) |
| Withstanding voltage | 1500 VAC/minute |
| Acquired certification | Electrical Appliances and Materials Safety Act (PSE)* |
| Protection grade | IP68(left at a water depth of 1 m for 24 hours) |
* The PSE does not apply to the inlet, outlet, or cap.

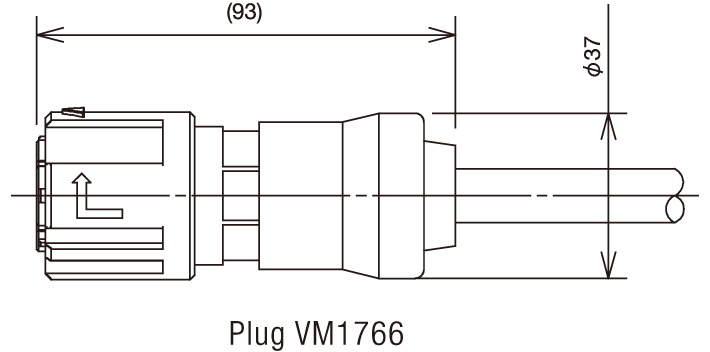

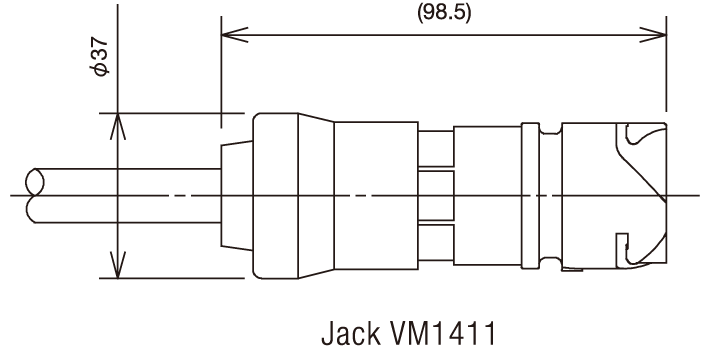

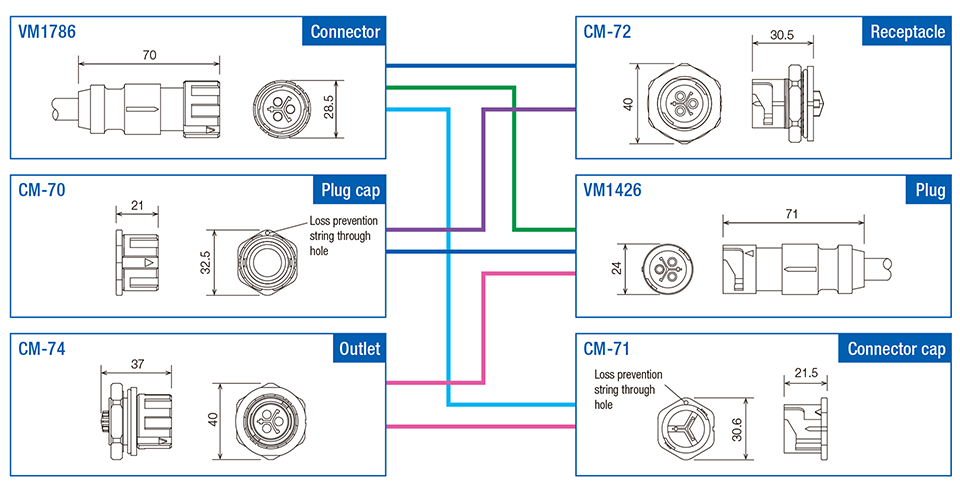

Combination/dimension diagram
Examples of areas of use

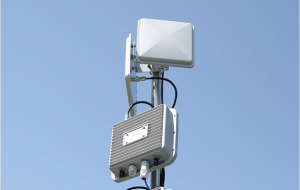

Base station
Industrial machinery
Lights
Examples of use methods
-

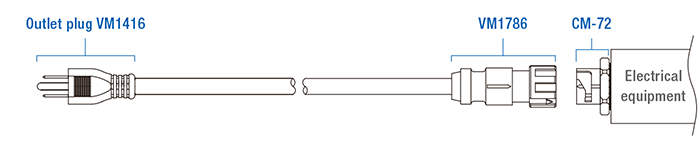

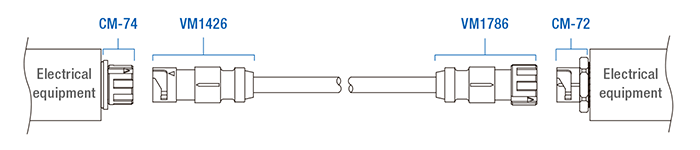

Equipment connection
and disconnection
*The electrical rating of the connector with the VM1416 is 15 A at 125 V.
-
Relay
*The electrical rating of the connector with the VM1416 is 15 A at 125 V.
-

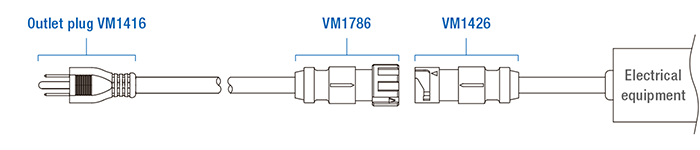

Between equipment
