Cat5e cable
-

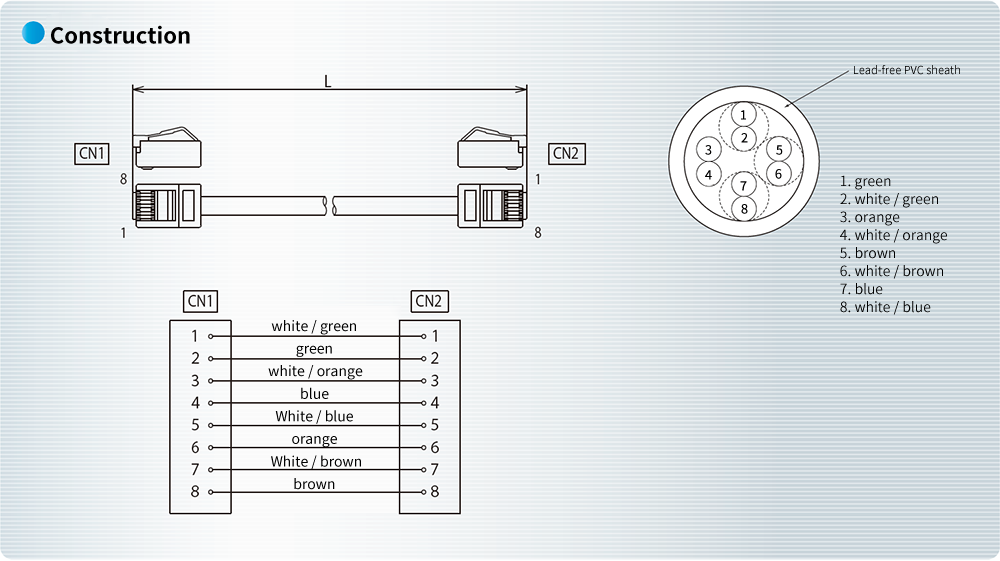

■The connector uses PANDUIT MP588.
■The cable uses OKTP-E5-P-AWG24X4P from Okano Electric Wire Co., Ltd.

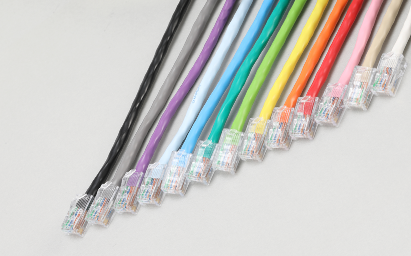

■There are 13 sheath colors (light blue, blue, white, yellow, orange, red, peach, bright green, green, ivory, gray, black, purple).
* If there is a request, we can also install a destination display (round tag) between broadcasting equipment.
Application
・Broadcast equipment
・Network equipment
Features
1
This LAN cable supports high-speed transmission of 100MHz, which is standardized by TIA/EIA 568A.
2
It supports 1000BASE-T (1Gbps) communication.
3
RoHS compliant
| frequency(MHz) | AttenuationdB/100ｍ at20℃ | Near-end crosstalk attenuationdB/100ｍ |
Multiple near-end crosstalk attenuationdB/100ｍ |
Far-end crosstalk attenuation ratiodB/100ｍ |
Multiple far-end crosstalk attenuation ratiodB/100ｍ |
return lossdB/100ｍ |
|---|---|---|---|---|---|---|
| 1 | 2.4 | 65.3 | 62.3 | 63.8 | 60.8 | 20.0 |
| 4 | 4.9 | 56.3 | 53.3 | 51.8 | 48.8 | 23.0 |
| 8 | 6.9 | 51.8 | 48.8 | 45.7 | 42.7 | 24.5 |
| 10 | 7.8 | 50.3 | 47.3 | 43.8 | 40.8 | 25.0 |
| 16 | 9.9 | 47.2 | 44.2 | 39.7 | 36.7 | 25.0 |
| 20 | 11.1 | 45.8 | 42.8 | 37.8 | 34.8 | 25.0 |
| 25 | 12.5 | 44.3 | 41.3 | 35.8 | 32.8 | 24.2 |
| 31.25 | 14.1 | 42.9 | 39.9 | 33.9 | 30.9 | 23.2 |
| 62.5 | 20.4 | 38.4 | 35.4 | 27.9 | 24.9 | 20.7 |
| 100 | 26.4 | 35.3 | 32.3 | 23.8 | 20.8 | 19.0 |
