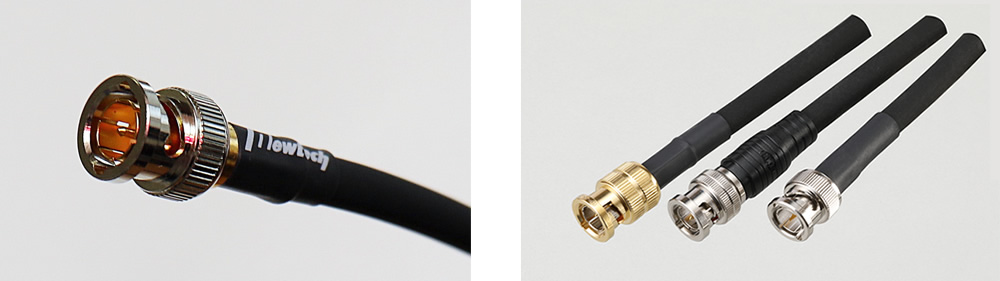

Coaxial cable
Application
・Connection of high-frequency equipment, internal wiring, power supply line
Features
1
This cable conforms to JIS C3502, is a high-frequency coaxial cable with a characteristic impedance of 75Ω, which uses polyethylene or foamed polyethylene as an insulator, a braided outer conductor (including aluminum tape), and a vinyl chloride resin sheath.
2

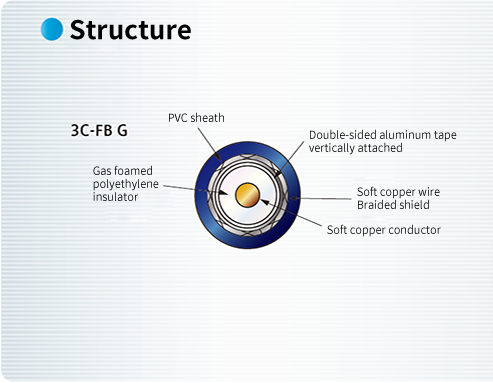

3C-FB G and 5C-FB G are products that achieve low attenuation with a gas-foamed polyethylene insulator.
3
We also offer high-frequency coaxial cables with a characteristic impedance of 50Ω and a series that uses 7-strand conductors.
4

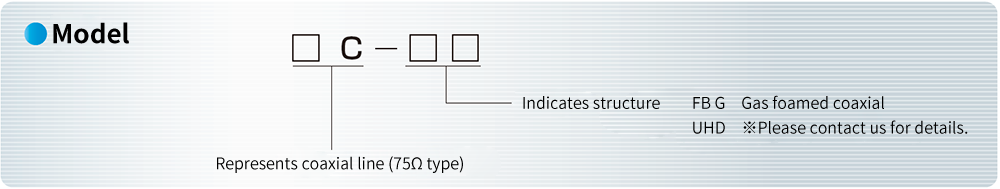

Standard length 200m
| Shape | Part number | Product name | Inner conductor(pcs/mm) | Outline(mm) | Mass(kg/km） | Conductor resistanceΩ/km(20℃) | Characteristic impedanceΩ(10MHz) | CapacitancenF/km(1kHz) | Standard attenuation*1dB/km |
|---|---|---|---|---|---|---|---|---|---|
Terminology CS: Copper-clad steel wire (copper steel)
|
310C- | 3C-FB G | 1/0.65 | 5.7 | 40 | 54 or less | 75±3 | Standard 56 | 475 |
| 310C- | 5C-FB G | 1/1.05 | 7.7 | 73 | 21.1 or less | 75±3 | Standard 56 | 310 | |
| 5.5C-UHD | |||||||||

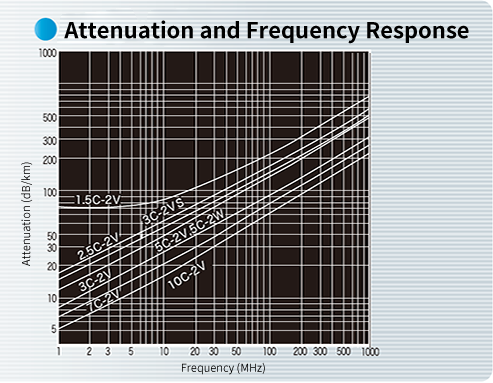

*1 Frequency: FB specification 1770MHz, FB G specification 2000MHz, Other 10MHz
maximum attenuation is 115% of standard attenuation.
*Please contact us for details of 5.5C-UHD.
