Control cable
Application
・The mini cable is an ultra-thin multi-core cable that is suitable for facilities where there are many transmission lines, such as connections between devices, mainly information processing equipment, and where the facility location is limited.
Features
1
Heat-resistant PVC is used for the insulator, so it has good heat resistance, and the thickness of the insulator is thin. has become
2
Standard length 100m
3
There are also some products that use a batch coating on the conductor and can be easily terminated. Please contact us for details.
| Shape | Part number | Product name | Number of cores | Inner conductor(pcs/mm) | Outline(mm) | Mass(kg/km） | Conductor resistanceΩ/km(20℃) |
|---|---|---|---|---|---|---|---|
Glossary AL: Aluminum shield (suitable for fixed wiring and construction)
|
2F0H-01 | MINI CABLE-14 | 14 | 7/0.18 | 6.1 | 52.8 | 116 or less |
| 2F0J-01 | MINI CABLE-24 | 24 | 7/0.18 | 8.3 | 98.7 | 116 or less | |
| 2F0J-02 | MINI CABLE-36 | 36 | 7/0.18 | 8.6 | 116 | 116 or less | |
| 2F0J-06 | MINI CABLE-50 | 50 | 7/0.18 | 10.4 | 169 | 116 or less | |

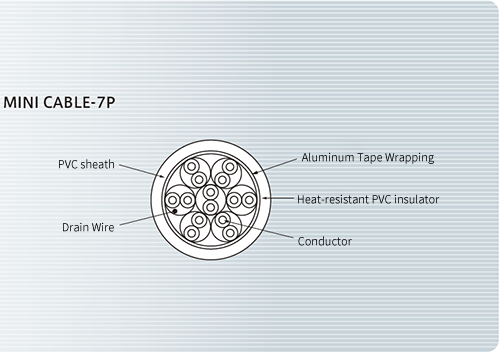

| 2F0H-02 | MINI CABLE-7P | 7P | 7/0.18 | 7.2 | 62.9 | 116 or less | |
| 2F0J-07 | MINI CABLE-12P | 12P | 7/0.18 | 9.3 | 107 | 116 or less | |
| 2F0J-03 | MINI CABLE-18P | 18P | 7/0.18 | 10.6 | 142 | 116 or less | |
| 2F0J-04 | MINI CABLE-25P | 25P | 7/0.18 | 12.7 | 186 | 116 or less |
