Magnetic Shielding Microphone Cord
Application
・Studios and halls that use thyristor dimmers and may be affected by electromagnetic induction.
Features
1

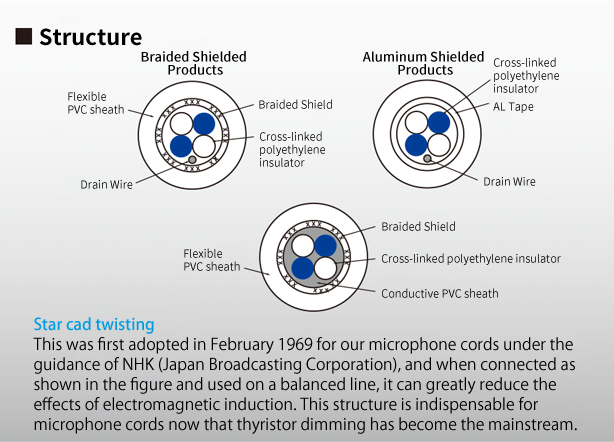

Star quad twist is adopted, and the structure is strong against electromagnetic induction and mechanical bending and twisting.
2
The HC-4E6-OFC uses OFC (oxygen-free copper) for the conductor and cross-linked polyethylene for the insulator, making it ideal for applications where sound quality is important.
3
Sheath colors are 10 colors (black, brown, red, orange, yellow, green, blue, purple, gray, white) corresponding to recent multi-channel.
4
Please use AL shielded products for fixed wiring.
5
Standard length 200m

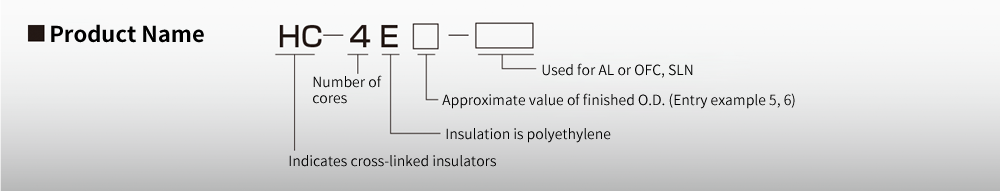

Shape | Part number | Product name | Number of cores | Inner conductor(pcs/mm) | Outline(mm) | Mass(kg/km) | Conductor resistanceΩ/km(20℃) | CapacitancenF/km(1kHz) |
---|---|---|---|---|---|---|---|---|
![]()
Glossary AL: Aluminum shield (suitable for fixed wiring and construction)
OFC: Oxygen-free copper wire Capacitance blue/blue-white/white |
3001-01 | HC-4E5 | 4 | 30/0.08 | 4.8 | 34.7 | 131.0 or less | about 135 |
3001-02 | HC-4E6 | 4 | 20/0.12 | 6.5 | 61.3 | 88.3 or less | about 120 | |
3001-38 | HC-4E5-AL | 4 | 16/0.12 | 5.0 | 30.5 | 111.0 or less | about 145 | |
3001-39 | HC-4E6-AL | 4 | 12/0.18 | 6.4 | 54.8 | 65.4 or less | about 130 | |
300A- | HC-4E5-SLN | 4 | 30/0.08 | 5.2 | 40.0 | 131.0 or less | about 135 | |
300A- | HC-4E6-SLN | 4 | 20/0.12 | 6.5 | 59.0 | 88.3 or less | about 120 | |
300A-02 | HC-4E5-OFC | 4 | 30/0.08 | 4.8 | 35.0 | 131.0 or less | about 135 | |
300A-03 | HC-4E6-OFC | 4 | 40/0.08 | 6.0 | 47.8 | 99.6 or less | about 125 | |
300A-04 | HC-4E5-AL-OFC | 4 | 30/0.08 | 4.8 | 29.0 | 131.0 or less | about 135 | |
300A-05 | HC-4E6-AL-OFC | 4 | 40/0.08 | 6.0 | 44.0 | 99.6 or less | about 125 |
