Magnetic shielding multi-microphone cable

Application

・Ideal for connecting multi-channel (2 to 32) microphone lines.

Features

  1. 1

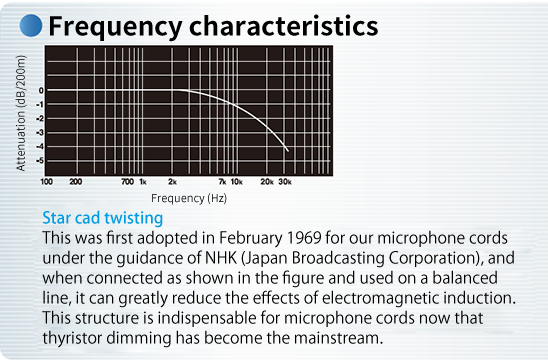

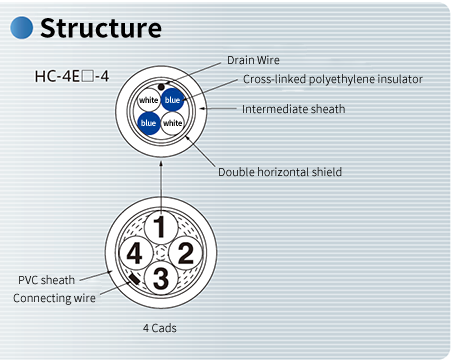

    Each line has a star-quad twist structure that is effective for magnetic shielding.

  2. 2

    The conductor is a highly flexible product made by twisting ultra-fine annealed copper wires of 0.08 mm.

  3. 3

    The crosstalk characteristic between each line is 120dB (200m 10kHz) or more.

  4. 4

    Flexible design product

  5. 5

    It has a built-in drain wire that can be easily shielded.

  6. 6

    Specifications without a drain wire are also available.

  7. 7

    Standard length 200m

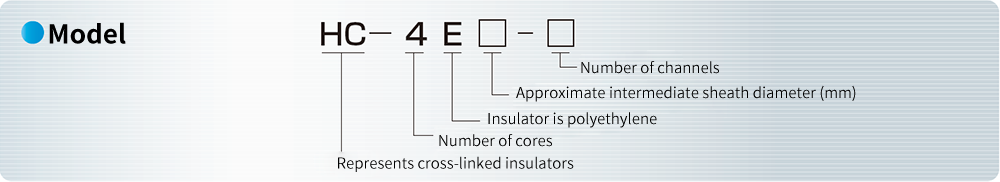

Shape Part number Product name Number of cores Inner conductor(pcs/mm) Outline(mm) Mass(kg/km） Conductor resistanceΩ/km(20℃) CapacitancenF/km(1kHz)
Glossary OFC: Oxygen-free copper
wire capacitance blue/blue-white/white
3001-59 HC-4E3-2 2 16/0.08 8.9 92 246.0 or less about 145
3001-53 HC-4E3-4 4 16/0.08 10.8 153 246.0 or less about 145
3001-60 HC-4E3-8 8 16/0.08 14.0 265 246.0 or less about 145
3001-44 HC-4E3-12 12 16/0.08 17.0 379 246.0 or less about 145
3001-56 HC-4E3-16 16 16/0.08 18.9 486 246.0 or less about 145
3001-67 HC-4E3-24 24 16/0.08 23.0 696 246.0 or less about 145
3001-16 HC-4E4-4 4 30/0.08 12.5 201 135.0 or less about 135
3001-17 HC-4E4-8 8 30/0.08 16.3 358 135.0 or less about 135
3001-18 HC-4E4-12 12 30/0.08 19.4 494 135.0 or less about 135
3001-20 HC-4E4-16 16 30/0.08 21.8 625 135.0 or less about 135
3001-21 HC-4E4-24 24 30/0.08 26.7 923 135.0 or less about 135
3001-19 HC-4E4-32 32 30/0.08 29.8 1180 135.0 or less about 135
300A-06 HC-4E3-2-OFC 2 16/0.08 8.9 92 246.0 or less about 145
300A-07 HC-4E3-4-OFC 4 16/0.08 10.8 153 246.0 or less about 145
300A-08 HC-4E3-8-OFC 8 16/0.08 14.0 265 246.0 or less about 145
300A-09 HC-4E3-12-OFC 12 16/0.08 17.0 379 246.0 or less about 145
300A-10 HC-4E3-16-OFC 16 16/0.08 18.9 486 246.0 or less about 145
300A-11 HC-4E3-24-OFC 24 16/0.08 23.0 696 246.0 or less about 145
300A-13 HC-4E4-4-OFC 4 30/0.08 12.5 201 135.0 or less about 135
300A-14 HC-4E4-8-OFC 8 30/0.08 16.3 358 135.0 or less about 135
300A-15 HC-4E4-12-OFC 12 30/0.08 19.4 494 135.0 or less about 135
300A-16 HC-4E4-16-OFC 16 30/0.08 21.8 625 135.0 or less about 135
300A-17 HC-4E4-24-OFC 24 30/0.08 26.7 923 135.0 or less about 135
300A- HC-4E4-32-OFC 32 30/0.08 29.8 1180 135.0 or less about 135
