Speaker cable
Application
・Low impedance, low resistance, and low loss speaker cables that emphasize sound quality.
Features
1
The conductor area has been increased so that a large damping factor can be obtained. (Coaxial type 3.0mm², 4 quad type 4.2mm², 1.4mm²)
2

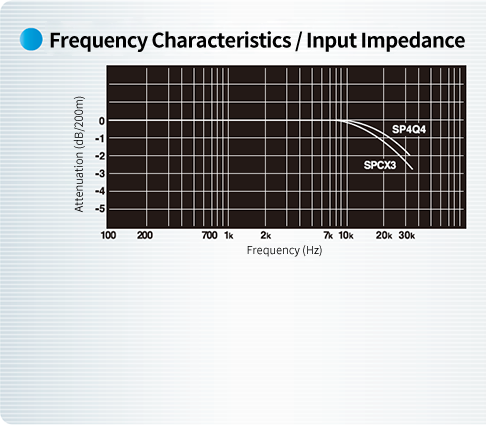

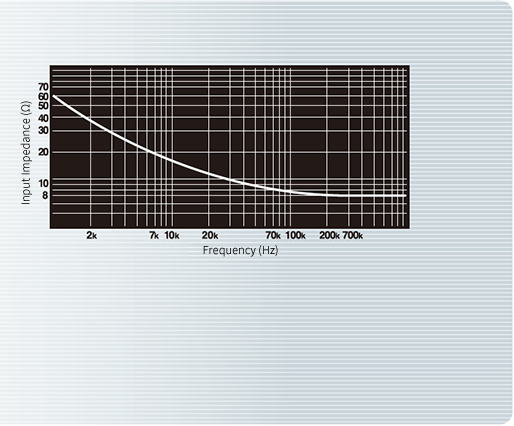

The characteristic impedance of the cable is close to the standard speaker impedance of 8Ω, enabling high-quality transmission with little attenuation even over long distances.

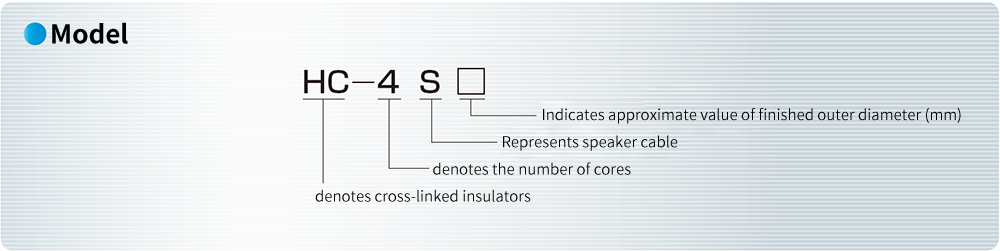

| Part number | Product name | Number of cores | Inner conductor(pcs/mm) | Outline(mm) | Mass(kg/km） | Conductor resistanceΩ/km(20℃) | Characteristic impedanceΩ(10MHz) | CapacitancenF/km(1kHz) | |
|---|---|---|---|---|---|---|---|---|---|
Capacitance 1-core specification |
3006-05 | HC-4S6 | 4(1quad) | 20/0.18 | 6.4 | 50.3 | 37.7 or less | － | about 125 |
| 3006-07 | HC-4S8 | 4(1quad) | 50/0.18 | 8.3 | 98.3 | 15.1 or less | － | about 145 |
