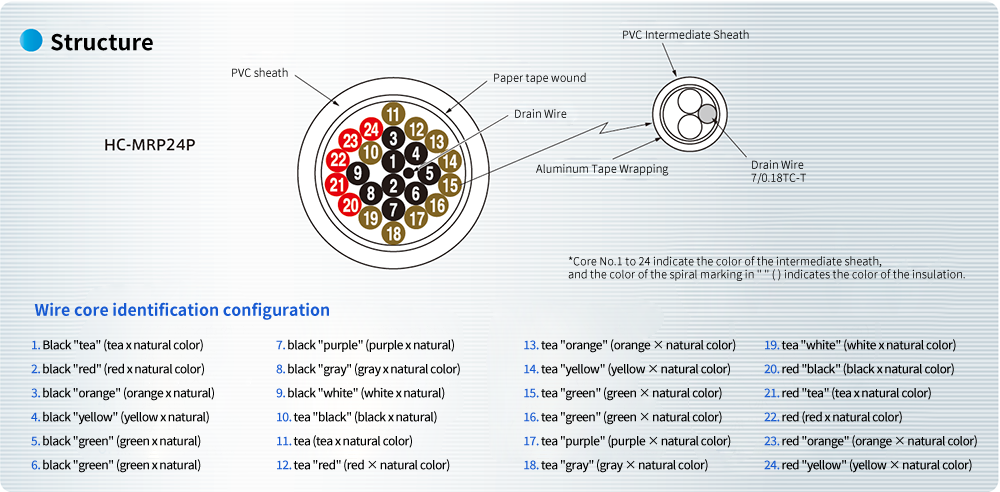

2-core aluminum shielded multi-cable (TA)
Application
・Line cable
Features
1
This is a multi-pair cable that uses twisted wires for conductors and provides flexibility, and each pair is shielded with aluminum tape.
2
A series using oxygen-free copper wire (OFC) for the conductor is also available.
3
Standard length 200m

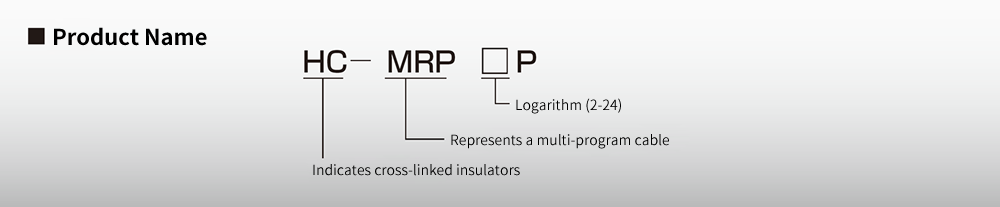

Shape | Part number | Product name | Logarithm | Inner conductor(pcs/mm) | Outline(mm) | Mass(kg/km) | Conductor resistanceΩ/km(20℃) | Capacitance*1nF/km(1kHz) | Capacitance*2nF/km(1kHz) |
---|---|---|---|---|---|---|---|---|---|
![]()
Capacitance *1 between lines *2 between lines and shields
|
300D-07 | HC-MRP2P | 2P | 7/0.18 | 6.7 | 46 | 110 or less | about 80 | about 145 |
300D-08 | HC-MRP4P | 4P | 7/0.18 | 7.6 | 63 | 110 or less | about 80 | about 145 | |
300D-09 | HC-MRP8P | 8P | 7/0.18 | 11.0 | 125 | 110 or less | about 80 | about 145 | |
300D-10 | HC-MRP12P | 12P | 7/0.18 | 12.7 | 171 | 110 or less | about 80 | about 145 | |
300D-11 | HC-MRP16P | 16P | 7/0.18 | 14.0 | 216 | 110 or less | about 80 | about 145 | |
300D-12 | HC-MRP24P | 24P | 7/0.18 | 17.4 | 317 | 110 or less | about 80 | about 145 |
