HIGH-FREQUENCY COAXIAL CABLE
UL CERTIFIED COAXIAL CABLE (STYLE1553)
Application Standard
UL 758
Application
Internal wiring of high frequency equipment
Features
Based on UL758, this cord is a high-frequency coaxial cord with a characteristic impedance of 50Ω and 75Ω, which uses cross-linked polyethylene as an insulator, a braided outer conductor, and a vinyl chloride resin sheath.

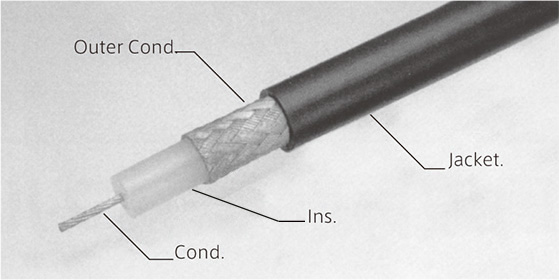

Structure and performance
| Type | UL Style | Rating | Cond. | XLPE Ins. | Outer Cond. (Braid) (mm×holding×hitting) |
PVC Sheath | Approx. Weight (kg/km) |
|
|---|---|---|---|---|---|---|---|---|
| Volt/Temp. | Size(AWG) | Composition (pcs/mm) |
Dia.(mm) | Dia.(mm) | ||||
| HC-1.5C-2V | 1553 | 300V/80℃ | 30 | 1/0.26CS | 1.55 | 0.10×5×16 | 2.9 | 13.6 |
| HC-1.5C-2VA | 7/0.1 | 1.66 | 3.0 | 13.8 | ||||
| HC-1.5D-2V | 25 | 1/0.5 | 1.60 | 2.9 | 14.6 | |||
| HC-1.5D-2VA | 7/0.18 | 1.62 | 14.2 | |||||
| Type | Standard Length (m) |
Dielectric Strength (AC V/1min) |
Min. Ins. Resistance 20℃ (MΩ・km) |
Max. Cond. Resistance 20℃ (Ω/km) |
Capacitance 1kHz (nF/km) |
Characteristic Impedance 10Hz(Ω) |
Wavelength Compaction ratio 10MHz(%) |
Nom. Attenuation 10MHz 、20℃ (dB/km)*1 |
|---|---|---|---|---|---|---|---|---|
| HC-1.5C-2V | 1,000 | 2,000 | 0.5 | 845 | 69±4 | 75±3 | 66±2 | 96 |
| HC-1.5C-2VA | 335 | 90 | ||||||
| HC-1.5D-2V | 87.8 | 104±5 | 50±3 | 76 | ||||
| HC-1.5D-2VA | 110 | 85 |
*1 For maximum attenuation, maximum value = indicated value x 1.15. (Max. Allowable Attenuation = 115% of Standards)
