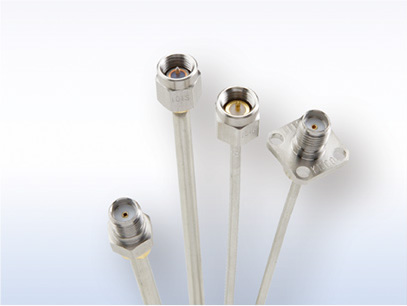

HIGH-FREQUENCY COAXIAL CABLE
SEMI-RIGID COAXIAL CABLE FOR MICROWAVE
Application
- Communications equipment, Microwave transmission lines for measuring instruments, Delay lines
- high speed computer lead
- Wiring path causing induced noise problem
- Wiring paths that require heat resistance and cold resistance
Features
- The outer conductor is a fully shielded coaxial oxygen-free copper pipe. It is effective not only in the microwave band but also as an alternative to conventional flexible coaxial as a noise countermeasure for low-frequency transmission lines.
- It exhibits stable electrical properties in the microwave band. Attenuation is small, VSWR is good, and frequency characteristics are stable.
- Wide operating temperature range Fluororesin is used for the insulator, so stable characteristics can be obtained over a wide range of temperatures.

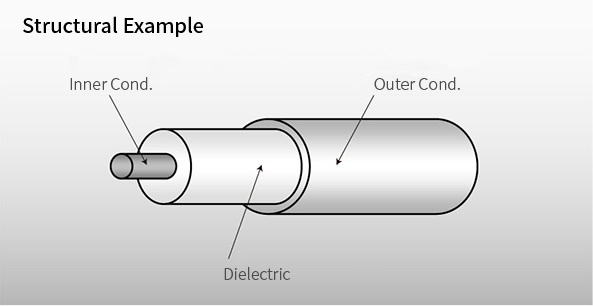

Coaxial structure in cable
| Item | HSR-141 | HSR-085 | |
|---|---|---|---|
| Inner conductor | Material | Silver-plated copper-clad steel wire | Silver-plated copper-clad steel wire |
| Configuration(pcs/mm) | 1/0.91 | 1/0.51 | |
| Outer diameter (mm) | 0.91 | 0.51 | |
| Insulator | Material | Fluororesin | Fluororesin |
| Outer diameter (mm) | 3.00 | 1.68 | |
| Outer conductor | Material | copper seamless tube | copper seamless tube |
| Outer diameter (mm) | 3.58 | 2.19 | |
| Characteristic impedance(Ω) | 50±1.5 | 50±1.5 | |
| Standard capacitance(pF/m) | 105 | 105 | |
| Standard attenuation | 1GHz(dB/10m ) | 3.9 | 7.2 |
| 5GHz(dB/10m) | 9.5 | 16.4 | |
| 10GHz(dB/10m) | 14.8 | 26.2 | |
| remarks | MIL RG-402 | MIL RG-405 | |
| 0.14inch Type | 0.085inch Type | ||
In addition, please inquire about specifications with a plated outer conductor (-H at the end of the product name).
- U S E
- Low noise Amplifer, High speed computer, Microwave components.
