Development of material for low particle PVC jacket

Dust evaluation method

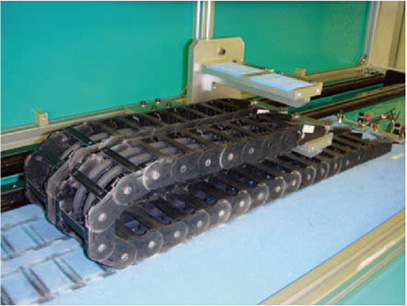

What is a cable carrier?
It is a device that organizes the cable wiring of moving parts and guides protection, support, and cable movement more smoothly.

Possible wear on the cable carrier
Metal resistance: Assuming contact with surrounding parts (fixing brackets, etc.)
Cable bear resistance: Assuming actual material and unevenness
Cable resistance: Assuming cable-cable contact due to installation

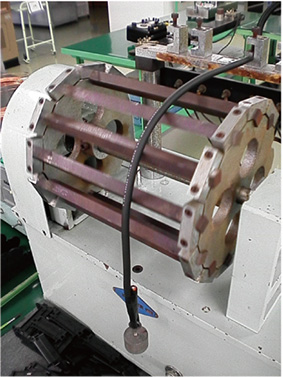

Metal resistance

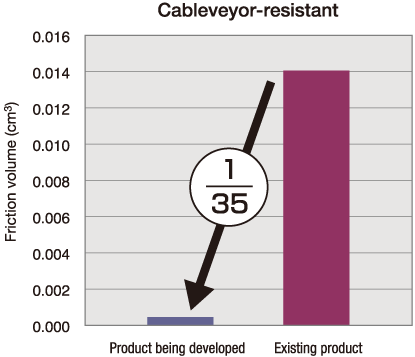

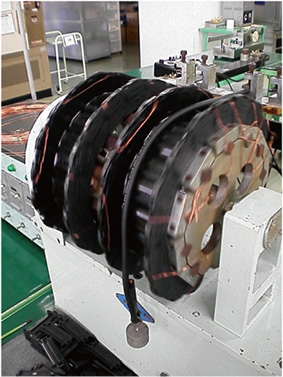

Cable carrier resistant

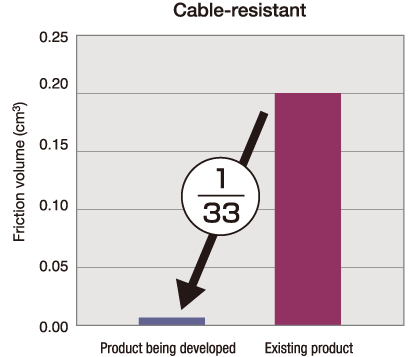

Cable resistant

*This photo is for reference only.

wear test

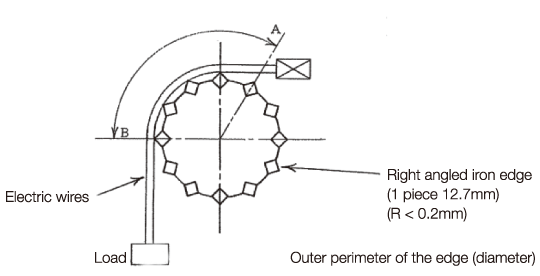

Cage abrasion tester
Standard: MIL-C-5756B
Rotation speed: 20 times/min
Rotation angle: 120° x 2

20,000 wear cycles
