Machine Vision Interface Cables
HS-Link Cable &l CameraLink HS Cable

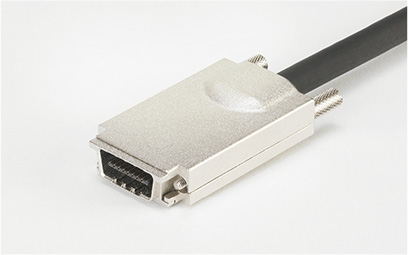

HS-Link Cable & CameraLink HS Cable
-
These cables are compatible with high-speed, high-reliability next-generation interface HS-Link which was developed by Teledyne DALSA for Machine Vision, and Camera Link HS developed from said HS-Link.
These cables adopt the CX4 connector, can be strongly locked with screws and are compatible with cameras with data transmission speed of 1.08GB/sec.
Usage
Connecting between frame grabber and digital camera that uses HS-Link/ CameraLink HS interface (CX4)
Features
Transmission distance goes up to 14m
- It is compatible with HS-Link / CameraLink HS interface.
- InfiniBand-compatible connector (CX4) and thumbscrew type cover are adopted.
- Its high flexibility allows the cable to be bent in U-shape more than 2 million times.
- The cable conforms to flame-retardant VW-1 of UL standards.
- These cables are RoHS2 Directive compliant.

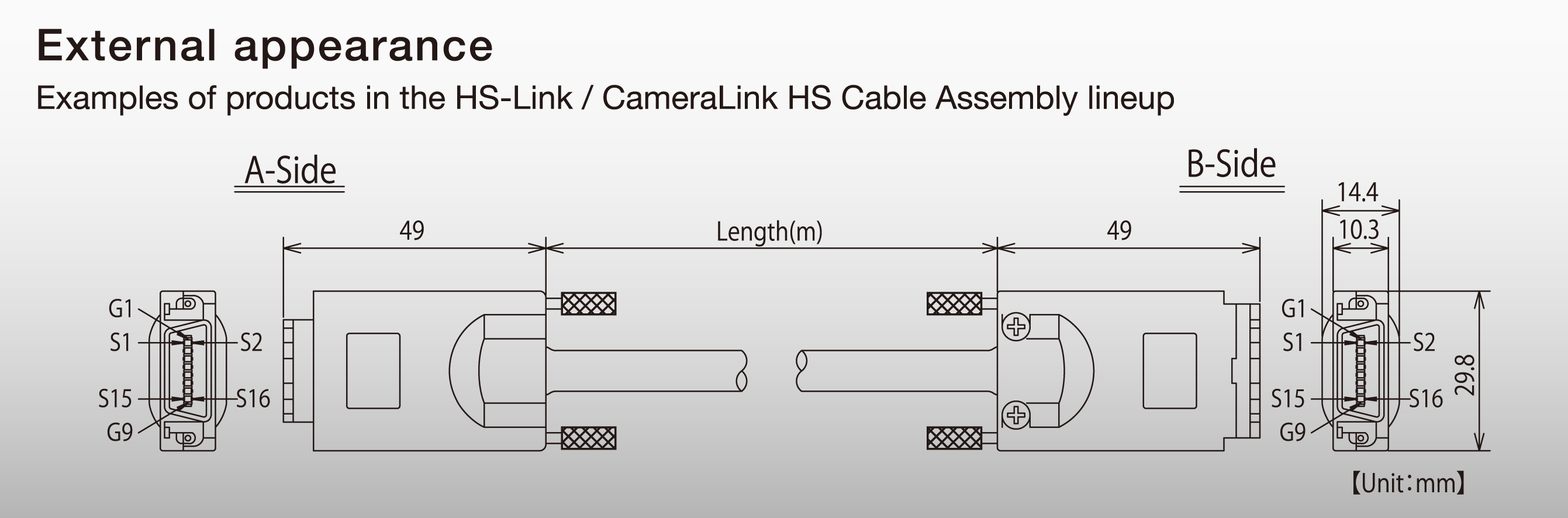

Structure and performance
| Cable size (（AWG） | AWG 30 | AWG 28 | AWG 26 |
|---|---|---|---|
| External Dia. | φ7.5mm | φ9.7mm | φ10.4mm |
| Qualified Length | Max. 8 Meters | Max. 12 Meters | Max. 14 Meters |
*Please designate L length to be used. (MAX14m)
Flexibility characteristics
<Test evaluation method>
Bend method:
Minimum bend radius:
Bend speed:
Maximum times used*1:
Minimum bend radius:
Bend speed:
Maximum times used*1:
Only U-shaped bend (see test machine on left)
60mm
30 times/min
2 million times
60mm
30 times/min
2 million times
*1: Maximum times used is the total number of times after starting its use, and it is handled in the same way if it is stopped midway.
Number of times used is counted as 1 time for 1 cycle (1 stroke).
