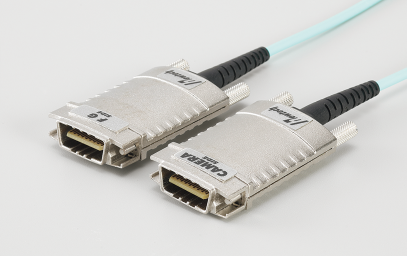

12Gbps CameraLink HS AOC

12Gbps CameraLink HS AOC

This cable is AOC* specification cable that converts electric signals into optical signals and transmits said signals in order to make CameraLink HS compatible with long distance.
This cable adopts the CX4 connector similarly to metal cables, can be strongly locked with screws and realizes long-distance transmission of 300m at maximum with data transmission speed of 12Gbps.

*AOC=Abbreviation for Active Optical Cable

Usage

Connecting between frame grabber and FA camera that uses CameraLink HS interface (CX4)

Features
  • It is compatible with CameraLink HS interface.
  • InfiniBand-compatible connector (CX4) and thumbscrew type cover are adopted.
  • The transmission line can be up to 300m due to E/O conversion and O/E conversion.
  • A round multi-fiber cable is used as the optical cable.
  • Eight 12Gbps lanes realize long-distance transmission of up to 300m
  • Maximum transmission rate: 12Gbps (1 lane) (5 G/8 lanes and 10 G/8 lanes are fully supported.)
  • Operating temperature of 0 to 50°C are supported.
  • Compliant with RoHS (10 substances).

Specifications

Cable specification Multi-core optical fiber cable
Cable outer diameter φ3.0mm round fiber (color: aqua) φ3.0mm round fiber (color: purple)
Cable length (L length) No more than 100m 150m to 300m

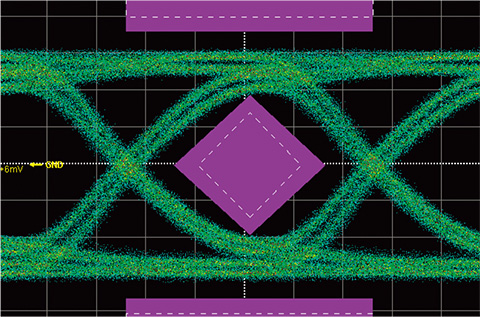

Eye-pattern waveform for 12G transmission measurement (300m)

The JIIA logo is a registered trademark of the Japan Industrial Imaging Association.

* The JIIA logo is a registered trademark of the Japan Industrial Imaging Association.

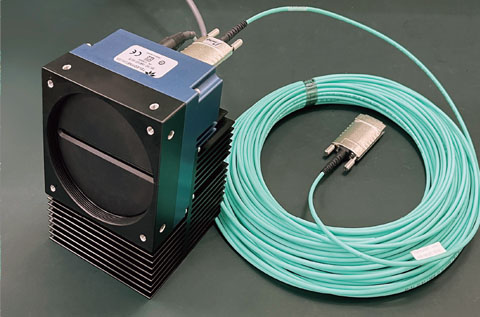

Example of connection with a CL-HS camera

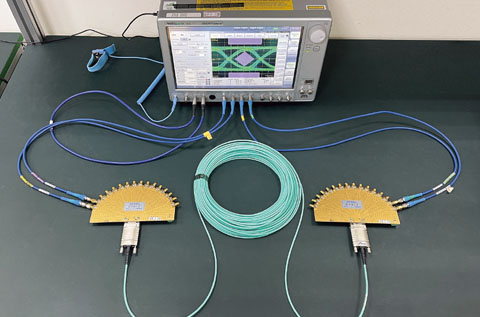

Eye-pattern measurement system

Number of times of sliding Reference data

Stroke: 300mm, bend radius: 75mm, speed: 38 times / minute

No disconnection after 62 million bending cycles

Testing condition
Testing condition

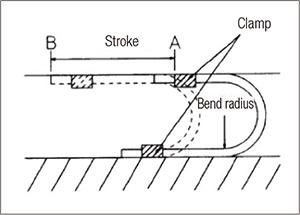

Cable bear bend tester
Cable bear bend tester

*Number of times of sliding and transmission distance are based on our unique evaluation standards. This data shows reference values and is not guaranteed values.

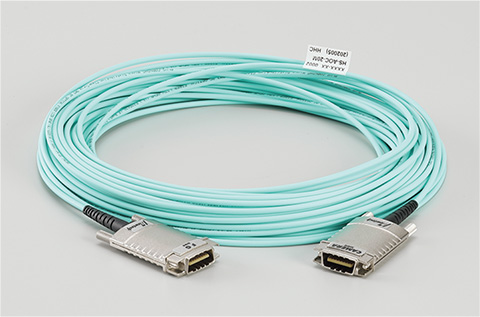

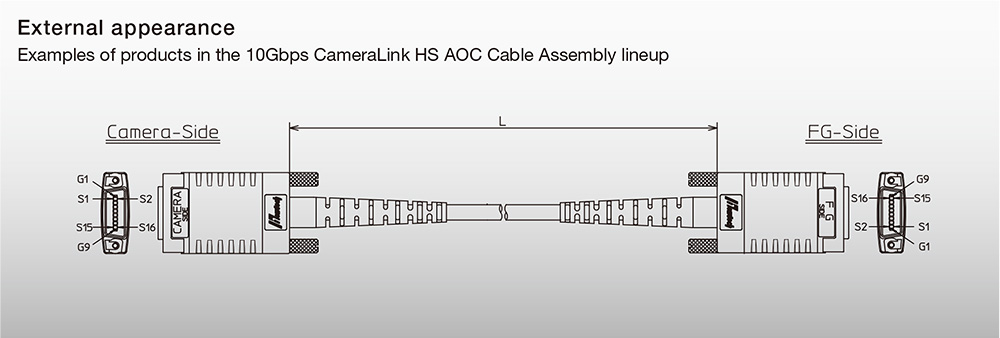

External appearance

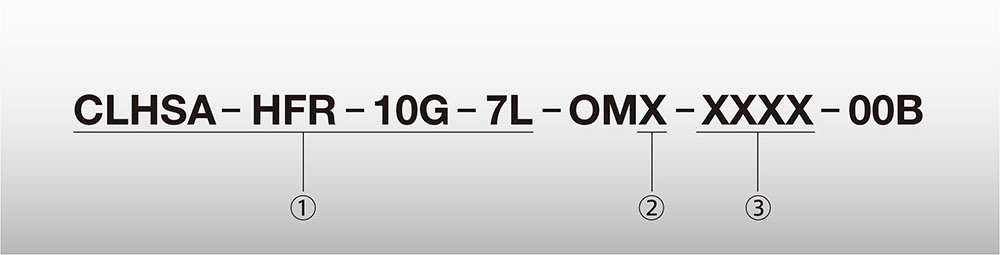

12Gbps CameraLink HS AOC nomenclature


Category
Code Description
CLHSA - HFR - 10G - 7L 5G/12G-compatible CameraLink-HS AOC

Cable type
Code Description
3 No more than 100 m
4 150m/200m/300m products

L Length
Code Description
0100 10m
1000 100m
1500 150m
3000 300m
