Machine Vision Interface Cables

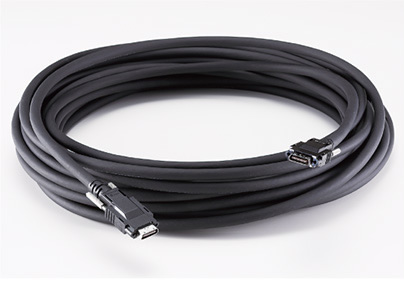

Camera Cable Assemblies for long-distance transmission[HPcL series]Patented
Long Distance Transmission Camera Cable
-
These cables support Camera Link, which is one of the Machine Vision interfaces. Our proprietary cable technology and the
use of original connectors* have enabled long-distance data transmission up to 30 meters.
These are high flex cables that can be used at moving parts.
* The maximum transmission distance changes depending on the performance of the camera and grabber board involved. The cable may have to be used in combination with the camera's built- in Pre-Emphasis function if you require the length of 20 meters or longer. Please provide us with camera details before purchasing this product.
Usage
Connecting a digital camera using the Camera Link interface to a frame grabber
Long-distance interface that supports SDR and MDR connectors
Features
Enabling long-distance data transmission for high bandwidth cameras!!
- This product, when combined with camera's Pre-Emphasis function, enables long distance data transmission of up to 30 meters.
- CL standards: Supporting cameras with the clock rate of 85MHz.
- Supporting full configuration.
- Supporting PoCL
- Flexible, high flex cables that can be used at moving parts
- These cables are UL compliant (VW-1).
- Compliant with RoHS (10 substances).

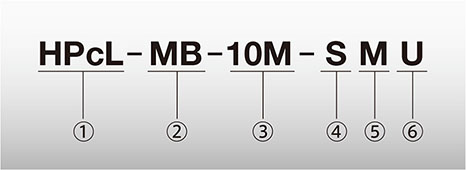

Product nomenclature
Length-based selection criteria (reference)
Assuming the clock rate of 85MHz
| Cable size | 10M | 15M | 20M | 25M | 30M |
|---|---|---|---|---|---|
| M（28AWG） | ○ | ○ | ◎ | - | - |
| L（26AWG） | ○ | ○ | ◎ | ◎ | ◎ |
* Please note that these cables are not standardized products for Camera Link.
* Product specifications are subject to change without notice for improvement.
* This product has been jointly developed with Nihon I/F K.K.
* Product names and company names featured are trademarks or registered trademarks of Hirakawa Hewtech and respective companies.
* Product specifications are subject to change without notice for improvement.
* This product has been jointly developed with Nihon I/F K.K.
* Product names and company names featured are trademarks or registered trademarks of Hirakawa Hewtech and respective companies.
| ①Series name | HPcL: Long-distance transmission camera cable |
|---|---|
| ②Cable size transmission type(Configuration) |
MB: For medium distance / Compatible with Base/Medium / Outer diameter φ8.0 |
| MF: For medium distance / Compatible with Full / φ10.0 | |
| LB: For long distance / Compatible with Base/Medium / φ8.9 | |
| LF: For long distance / Compatible with Full / For Camera 2 side connection / φ10.3 | |
| LFB: For long distance / Compatible with Full / For Camera 1 side connection / φ10.3 | |
| * cables are required for use with Medium and Full. When compatible with Full and long distance, please request 1 set each of LF and LFB. | |
| ③Product length | Expressed in metric |
| ④Camera side connector ⑤Grabber board side connector ⑥Specifying the SDR Connector Angle |
M: MDR type / straight |
| S: SDR type / straight* | |
| U: upward angle, D: downward angle, R: right-direction angle, L: left-direction angle |
Types of the camera cable assemblies
Transmission characteristics <<Eye-Pattern>>
■Conventional product
10M
15M
20M
■HPcL-M series
10M
15M
20M
