GigE Vision cable (1Gbps)

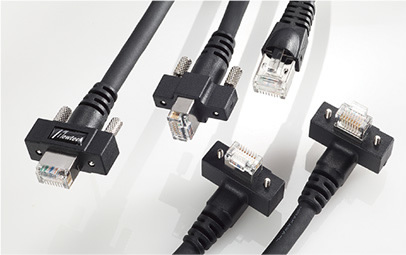

Gigabit Ethernet Cable Assemblies for GigE Vision TM
- GigE Vision TM is an interface standard for Machine Visions, introduced by the Automated Imaging Association (AIA), using Gigabit Ethernet for high-speed transmission of camera images. This category offers a full lineup of cables and plugs with noise- proof and sliding-resistant properties, suitable for FA environment.
Interface cable for connecting between GigE- compatible FA camera and each of grabber board and switching hub
- Supporting high-speed transmission of camera data for FA (GigE VisionTM)
- Using a jacket material with excellent oil resistance
- Designed for mechanical strengths such as flex resistance, sliding resistance and twist resistance.
- The lineup includes a range of plug formats that users can select according to the space for camera installation.
- These cables are UL compliant and have cleared the VW-1 test for flame resistance.
- Compliant with RoHS (10 substances).
- Please contact us for custom options.
Structure and performance
| Item | Standard type | |
|---|---|---|
| Signal conductor size(AWG) | 26AWG | |
| External jacket diameter(mm) | 6.7 | |
| Voltage / temperature rating | 30V/80℃ | |
| Characteristic impedance | 1-100MHz | 100±15 |
| Propagation delay(ps/m) | 1-100MHz | No more than 555 |
| Within-pair skew(ps/m) | 1-100MHz | No more than 50 |
| Attenuation(dB) | 1MHz | No more than 2.0 |
| 16MHz | No more than 8.2 | |
| 100MHz | No more than 22.0 | |
| Near-end crosstalk(dB) | 1MHz | No more than 65.3 |
| 16MHz | No more than 47.3 | |
| 100MHz | No more than 35.3 | |
| Transmission distance(m) | No more than 40 | |
| Flame resistance | VW-1 | |
*The transmission characteristics conform to Cat.5e (Channel).

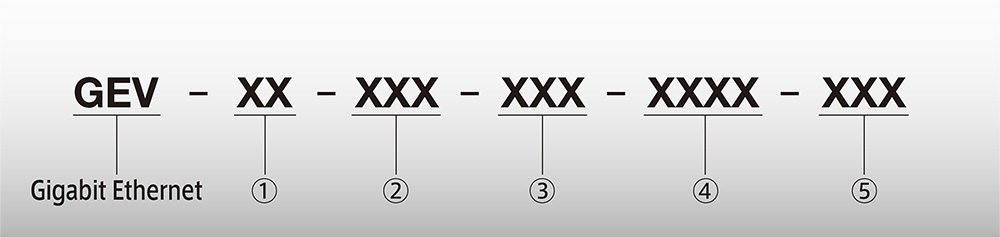

GigE Vision nomenclature (1Gbps)
| ① Cable type |
Code | Description |
|---|---|---|
| HF | High sliding specification (standard specification) |

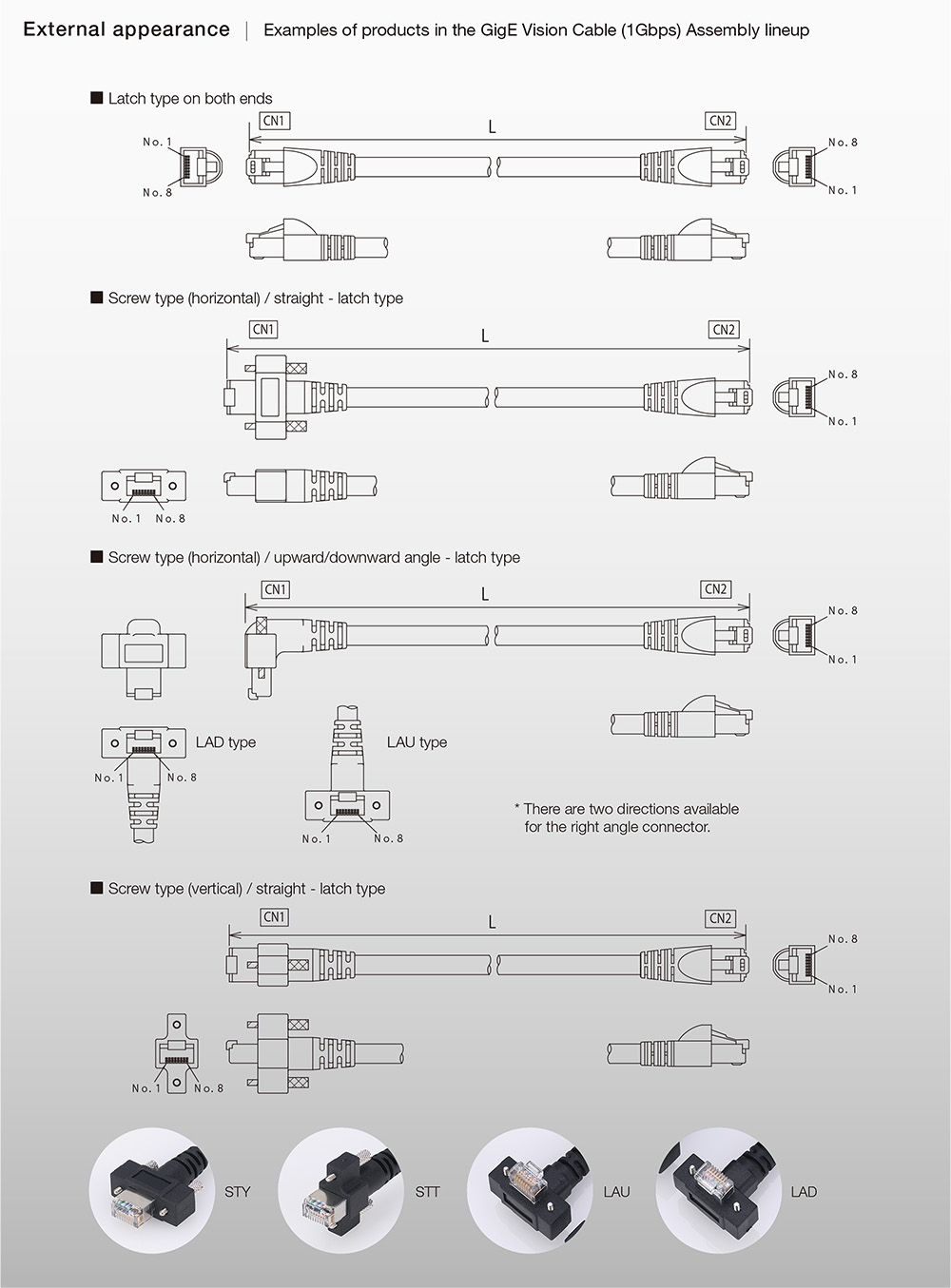

| Connector specifications ② CN1 Side ③ CN2 Side |
Code | Description |
|---|---|---|
| STL | RJ45 latch type / straight | |

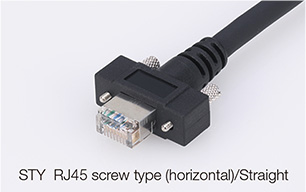

| STY | RJ45 screw type (horizontal) / straight | |

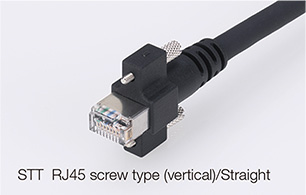

| STT | RJ45 screw type (vertical) / straight | |

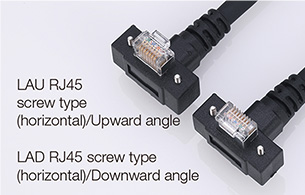

| LAU | RJ45 screw type (horizontal) / upward angle | |
| LAD | RJ45 screw type (horizontal) / downward angle | |
| XAS | ix connector (A key) / Straight | |
| XAD | ix connector (A key) / Angle (cable down-pointing exit) | |
| XAU | ix connector (A key) / Angle (cable up-pointing exit) | |
| XAJ | ix connector (A key) / Relay jack | |
| MXS | M12 8P (X-Code) waterproof (IP65) straight | |
| MXL | M12 8P (X-Code) waterproof (IP65) angle |
| ④ L length |
Code | Description |
|---|---|---|
| 0050 | 5m | |
| 0100 | 10m | |
| 0400 | 40m *Transmission distance is up to 40m for high sliding type. | |
| *Please consult with us if other L lengths are desired. | ||
| ⑤ Jacket color |
Code | Description |
|---|---|---|
| 00K | Black (default color) | |
| * Please contact us if a cable with a different color is needed. | ||
(Note)
The high sliding specification GigE Vision cable (1Gbps) is the standard cable.
Please contact us if you desire fixing type or other custom specifications.
Sliding test *GigE Vision cable(10Gbps)
Currently at 20 million cycles without failure (test is ongoing).*As of September 2024.
Bend radius (r) : 50mm
Sliding speed : 40 tests/minute*
*One reciprocating movement
is counted as one test.
ix IndustrialTM Cable
ix-ix Cable
ix-RJ45 Cable
ix Angle to ix Angle Cable
ix to ix extension Cable
M12 8P (X-Code) waterproof (IP65) connector
ix IndustrialTM PoE switching hub
-
Features
-
Ultra-compact design enabled by adopting industrial-grade small Ethernet connectors (can be installed where space is limited).
Stronger retention compared to traditional RJ45, preventing communication interruptions due to vibration.
Models with management functions are also available.
Can be installed on flat surfaces, walls, or DIN rails.
24VDC (non-PoE type)
* ix Industrial and its logo are trademarks or registered trademarks of Hirose Electric Co., Ltd.
