CoaXPress Cable
CoaXPress Cable
Interface cable for connecting between frame grabber and CoaXPress- compatible FA camera Compatible with both single- and multi-channel configurations.
- High data rate: Up to 12.5Gbps (when using one coaxial cable) or up to 50Gbps (when using four coaxial cables)
- Enables long-distance transmission.
- Transfer of video, data, control signals and power over a single coaxial cable.
- Fixing and high sliding cables are available to suit your application.
- Multi (dual and quad) round cables and flat cables are also available.
- JIIA certified *1
- Compliant with RoHS (10 substances).
*1 The lineup of certified products will be upgraded as needed. For information about the products, contact us.
*Contact us for details of CoaXPress-over-Fiber, which uses optical fiber.
CoaXPress (CXP) is an asymmetric high-speed serial communication standard. The interface uses one or multiple coaxial cables to transfer video and still images.
Single cable transfers video, still images and other data at the rate of up to 12.5Gbps, and communicates control signals at a fixed bit rate of 41.6Mbps.
These cables also support “Power-over-Coax”, and can be extended to the length of over 100 meters.
(CXP-3 ~ CXP-1 up to 100 meters with 5C coaxial cable)
* The JIIA logo is a registered trademark of the Japan Industrial Imaging Association.
BNC to DIN 1.0/2.3 Push-pull Type

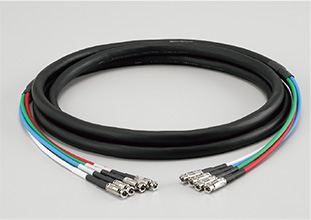

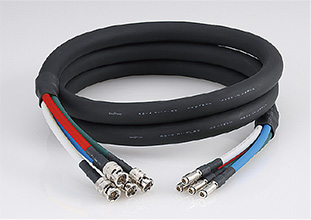

4 core multi round cable
BNC to DIN 1.0/2.3 Push-pull Type

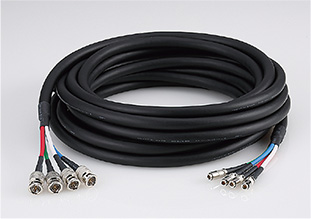

4 core multi round cable
DIN 1.0/2.3 Screw angle Type to DIN

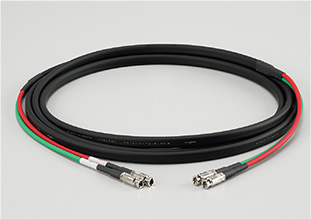

4 core multi round cable
MicroBNC to MicroBNC for moving parts

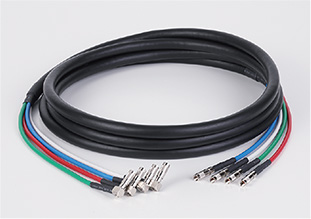

4-core multi cable
MicroBNC to MicroBNC for moving parts
2-core multi cable

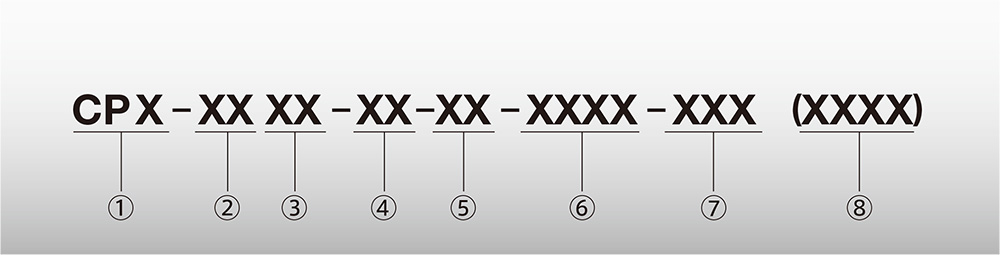

CoaXPress nomenclature
| ① Category |
Code | Description |
|---|---|---|
| CP1 | CXP-1 (1.25Gbps) | |
| CP2 | CXP-2 (2.50Gbps) | |
| CP3 | CXP-3 (3.125Gbps) | |
| CP5 | CXP-5 (5.000Gbps) | |
| CP6 | CXP-6 (6.250Gbps) | |
| CP10 | CXP-10 (10.000Gbps)* | |
| CP12 | CXP-12 (12.500Gbps)* |
| ② Cable type |
Code | Description |
|---|---|---|
| 55C | 5.5C type | |
| 5C | 5C type | |
| R6 | RG-6 type | |
| U6 | RG-6 UL1365type HF (high sliding specification) only | |
| 33C | 3.3C type | |
| 3C | 3C type | |
| 24C | 2.4C type |
*Please contact sales separately for custom cables.
| ③ Cable specification |
Code | Description |
|---|---|---|
| ST | Standard specification (for fixing) | |
| HF | High sliding specification |
| Connector specification ④ ⑤ |
Code | Description |
|---|---|---|
| BH | BNC connector / straight type | |
| BL | BNC connector / angle type | |
| DS | DIN 1.0/2.3 Push-pull / straight type (Please see the combinations on the next page.) | |
| DH | ||
| DL | DIN 1.0/2.3 Push-pull / angle type | |
| DHS | DIN 1.0/2.3 Screw / straight type | |
| DHLS | DIN 1.0/2.3 Screw / angle type | |
| HH | MicroBNC/ straight type | |
| HL | MicroBNC/ angle type | |

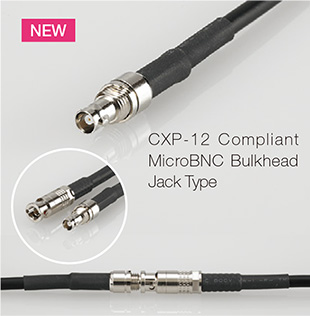

| HHJ | MicroBNC / Bulkhead Jack Type |
*Please prioritize Straight in the item name listing, followed by BNC, DIN 1.0/2.3 Push-pull, DIN 1.0/2.3 Screw, and MicroBNC in order of precedence. For details,
For details, please refer to the model number specification example below.
| ⑥ L Length * These Lengths are an example for your reference. |
Code | Description |
|---|---|---|
| 0050 | 5m | |
| 0100 | 10m | |
| 1000 | 100m |
| ⑦ Jacket color |
Code | Description |
|---|---|---|
| 00K | Black (default color) | |
| * Please contact us if a cable with a different color is needed. | ||
| ⑧ Special specification |
Code | Description |
|---|---|---|
| SQ | 4 core multi round cable | |
| SQLP | 4 core multi round cable (Low particle jackets) | |
| FDLP | 2 core multi flat cable (Low particle jackets) | |
| FQLP | 4 core multi flat cable (Low particle jackets) |

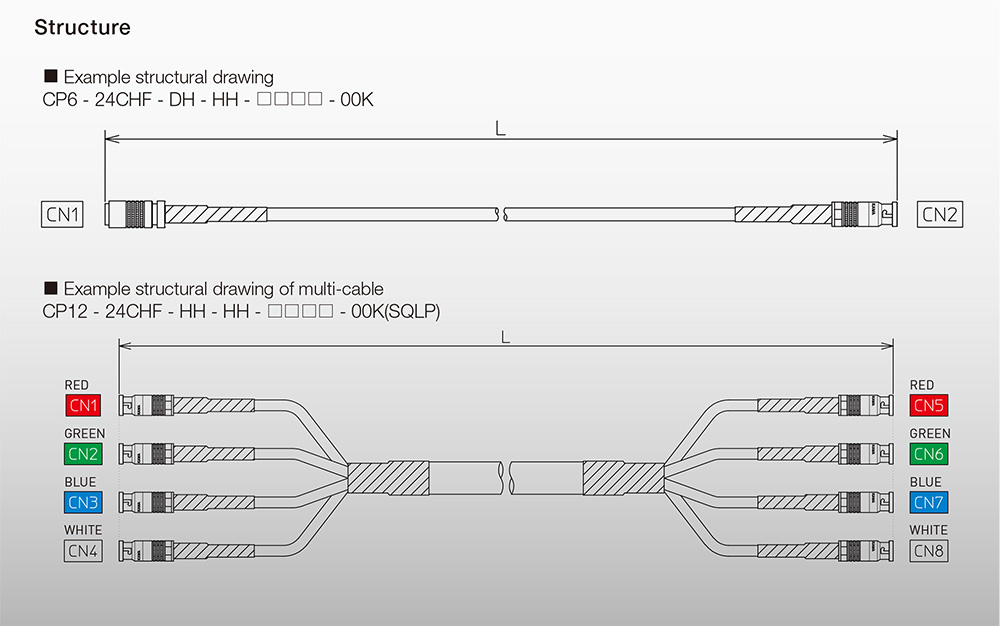

[Examples of designation of model number]
(Example 1)
Usage range: CXP-6, cable: 24C type/high sliding, MicroBNC to DIN Push-pull, L length: 5m, cable: Black
Model name: CP6-24HF-DH-HH-0050-00K
(Example 2)
Usage range: CXP-12, cable: 2.4C type/high sliding, 4-core round low-particle, MicroBNC angle to MicroBNC,
L length: 10m, cable: Black
Model name: CP12-24CHF-HH-HL-0100-00K(SQLP)
[Number of times of sliding reference data]
| Cable type | Cable Bear Bend Radius |
Number of times of sliding |
|---|---|---|
| 24C 1 core 16m | R50 | 4.5 million times |
| R6 1 core 17m | R50 | 17 million times |
| 24C SQLP (4 cores) 16m | R75 | 15 million times |
| Cable type | Cable Bear Bend Radius |
Number of times of sliding |
|---|---|---|
| 24C 1 core 12m | R50 | 2 million times |
| 24C SQLP (4 cores) 12m | R50 | 17 million times |
*Number of times of sliding and transmission distance are based on our unique evaluation standards. This data shows reference values and is not guaranteed values.
CoaXPress2.1 Maximum Transmission Distance(Reference)
as of November 2024
| Coaxial type | Range |  |
 |
 |
 |
 |
 |
 |
Compatible connector (compatible with up to CXP-6 = ○ /CXP-12-compatible = ◎ ) | Compatible electric wire (compatible = ○ ) | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Micro-BNC | DIN(1.0/2.3) *Push-Pull |
DIN(1.0/2.3) *Screw |
BNC | Single | Multi Dual(2-core) |
Multi Quad(4-core) |
|||||||||||||||||
| Rate(bps) | 12.5G | 10G | 6.25G | 5G | 3.125G | 2.5G | 1.25G | Straight | Angle | Bulkhead Jack |
Straight | Angle | Straight | Angle | Straight | Angle | Bulkhead Jack |
Round | Flat | Round | Flat | ||
| 5.5C | Standard | 43m | 53m | 53m | 78m | 134m | 145m | 166m | Preparing the product. |
◎ | ◯ | ||||||||||||
| Highflex | Preparing the product. |
Preparing the product. |
Preparing the product. |
Preparing the product. |
Preparing the product. |
Preparing the product. |
Preparing the product. |
Preparing the product. |
Preparing the product. |
Preparing the product. |
◯ | ||||||||||||
| 5C | Standard | 30m | 40m | 40m | 55m | 100m | 105m | 130m | ◎ | ◯ | ◯ | ◯ | |||||||||||
| Highflex | 20m | 27m | 30m | 45m | 75m | 80m | 90m | ◎ | ◯ | ◯ | ◯ | ||||||||||||
| RG6 | Standard | 14m | 20m | 20m | 33m | 55m | 60m | 70m | ◯ | ◯ | ◯ | ◯ | ◯ | ||||||||||
| Highflex | 12m | 17m | 17m | 26m | 45m | 50m | 57m | ◎ | ◎ | ◯ | ◯ | ◯ | |||||||||||
| 3.3C | Standard | 25m | 32m | 32m | Preparing the product. |
Preparing the product. |
Preparing the product. |
Preparing the product. |
Preparing the product. |
◎ | ◯ | ||||||||||||
| Highflex | Preparing the product. |
Preparing the product. |
Preparing the product. |
Preparing the product. |
Preparing the product. |
Preparing the product. |
Preparing the product. |
Preparing the product. |
Preparing the product. |
◯ | Preparing the product. |
||||||||||||
| 3C | Standard | 20m | 23m | 23m | 35m | 60m | 63m | 68m | ◯ | ◯ | ◯ | ◯ | |||||||||||
| Highflex | 14m | 20m | 20m | 30m | 50m | 55m | 64m | ◯ | ◯ | ◯ | Preparing the product. |
||||||||||||
| 2.4C | Standard | 18m | 20m | 20m | 32m | 53m | 57m | 61m | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | ||||||
| Highflex | 12m | 16m | 16m | 24m | 40m | 44m | 51m | ◎ | ◎ | ◎ | ◯ | ◯ | ◯ | ◯ | ◯ | ◯ | Preparing the product. |
◯ | ◯ | ◯ | ◯ | ||
*1 The data above is for single-core products. Please contact us for details of multi-core products that comply with the standards.
*2 Dual (2-core) and Quad (4-core) round cables, flat cables, and low-particle cable are also supported. Due to the nature of multi-core twisting, round cables may have slightly shorter maximum transmission distances than single-core products. In addition, depending on the connection compatibility between a CXP camera and FG board, the transmission distance may differ. We recommend conducting an actual machine evaluation.
*3 It is possible to combine connectors of different types, such as BNC on the CN1 side and DIN (1.0/2.3) on the CN2 side. Please contact us when placing an order.
*4 We plan to add CXP-10 and CXP-12 products to our lineup as needed. (The transmission distances are listed for reference.)
*5 If you need the latest information about JIIA certification, please contact our sales or technical staff.
*6 Our products comply with all RoHS2 (10 substances) regulations.
*7 CoaXPress repeaters are also compliant with the CE mark/UKCA mark. We will expand our product lineup based on the table above. If you have any requests or inquiries regarding any specifications not listed above or custom specifications, please contact sales and technical staff.
From the above table, we are increasing the product lineup from time to time.
If you have any requests or consultations for specifications not listed above or custom specifications,
please contact our sales staff and technology.
