UL STYLE 2464, CSA TYPE AWMMulti core cables with braided shield

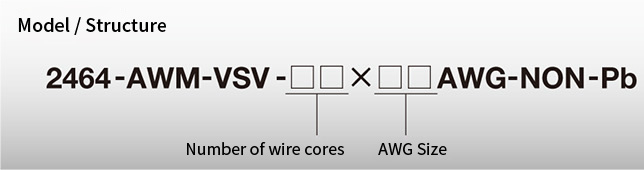

UL style 2464, CSA type AWM: Multi core cables with braided shield
Application
Shielded cable for electronic device wiring
Features
- UL, CSA certified cable
- UL VW-1, CSA FT1 flame retardant

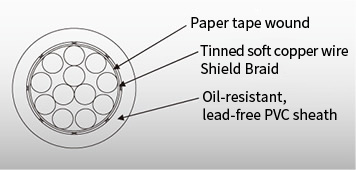

- Uses oil-resistant vinyl material
Specification example
| Size(AWG) | Number of cores | Tinned annealed copper wire conductor | Insulator | Tinned annealed copper wire(mmm) |
Sheath | Characteristic | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Composition(pcs/mm) | Outer diameter(mm) | Material | Outer diameter(mm) | Material | Outer diameter(mm) | Rated voltage(V) | Rated temperature(℃) | Insulation resistance15.6℃ (MΩ・ km) |
Conductor resistance20℃ (Ω/km) |
|||
| 22 | 2 | 17/0.16 | 0.76 | Lead-free PVC |
1.58 | 0.12 single braid |
Lead-free oil resistant PVC |
5.7 | 300 | 80/ CSA(90) |
10 or more |
57.5 or less |
| 3 | 6.0 | |||||||||||
| 4 | 6.4 | |||||||||||
| 20 | 2 | 26/0.16 | 0.95 | Lead-free PVC |
1.77 | 0.12 single braid |
Lead-free oil resistant PVC |
6.2 | 300 | 80/ CSA(90) |
10 or more |
37.6 or less |
| 3 | 6.5 | |||||||||||
| 4 | 7.0 | |||||||||||
| 6 | 8.0 | |||||||||||
| 8 | 9.1 | |||||||||||
| 10 | 9.8 | |||||||||||
| 12 | 10.0 | |||||||||||
| 16 | 0.14 single braid |
11.1 | ||||||||||
| 20 | 12.4 | |||||||||||
| 30 | 0.16 single braid |
14.7 | ||||||||||
| 18 | 2 | 41/0.16 | 1.19 | Lead-free PVC |
2.02 | 0.12 single braid |
Lead-free oil resistant PVC |
6.7 | 300 | 80/ CSA(90) |
10 or more |
23.8 or less |
| 3 | 7.0 | |||||||||||
| 4 | 7.5 | |||||||||||
| 6 | 8.7 | |||||||||||
| 8 | 9.9 | |||||||||||
| 10 | 10.7 | |||||||||||
| 12 | 11.0 | |||||||||||
| 16 | 0.14 single braid |
12.2 | ||||||||||
| 20 | 13.8 | |||||||||||
| 30 | 0.16 single braid |
16.4 | ||||||||||
| 16 | 2 | 54/0.18 | 1.53 | Lead-free PVC |
2.37 | 0.12 single braid |
Lead-free oil resistant PVC |
7.4 | 300 | 80/ CSA(90) |
10 or more |
14.3 or less |
| 3 | 7.8 | |||||||||||
| 4 | 8.4 | |||||||||||
| 6 | 9.8 | |||||||||||
