UL STYLE 2464, CSA TYPE AWMMulti pair cables with braided shield

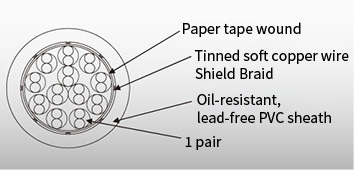

UL style 2464, CSA type AWM: Multi pair cables with braided shield
Application
Shielded cable for electronic device wiring
Features
- UL, CSA certified cable
- UL VW-1, CSA FT1 flame retardant
- Uses oil-resistant vinyl material
Specification example
| Size(AWG) | logarithm | Tinned annealed copper wire conductor | Insulator | Tinned annealed copper wire(mmm) |
Sheath | Characteristic | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| composition(pcs/mm) | Outer diameter(mm) | Material | Outer diameter(mm) | Material | Outer diameter(mm) | Rated voltage(V) | Rated temperature(℃) | Insulation resistance15.6℃ (MΩ・ km) |
Conductor resistance20℃ (Ω/km) |
|||
| 22 | 3P | 17/0.16 | 0.76 | Lead-free PVC |
1.58 | 0.12 single braid |
Lead-free oil resistant PVC |
8.70 | 300 | 80/ CSA(90) |
10 or more |
60.3 or less |
| 4P | 9.40 | |||||||||||
| 5P | 10.2 | |||||||||||
| 6P | 0.14 single braid |
11.2 | ||||||||||
| 8P | 0.16 single braid |
12.4 | ||||||||||
| 10P | 13.8 | |||||||||||
| 12P | 14.4 | |||||||||||
| 15P | 15.4 | |||||||||||
| 20P | 18.8 | |||||||||||
