FA cable for fixing

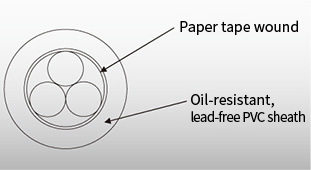

UL STYLE 2464, CSA TYPE AWMMulti core cables (semi-rigid type)
UL style 2464, CSA type AWM: Multi core cables (semi-rigid type)
Application
Cable for electronic device wiring
Features
- UL, CSA certified cable
- UL VW-1, CSA FT1 flame retardant
- Uses oil-resistant vinyl material
Specification example
| Size(AWG) | Number of cores | Tinned annealed copper wire conductor | Insulator | Sheath | Characteristic | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Composition(pcs/mm) | Outer diameter(mm) | Material | Outer diameter(mm) | Material | Outer diameter(mm) | Rated voltage(V) | Rated temperature(℃) | Insulation resistance15.6℃ (MΩ・ km) |
Conductor resistance20℃ (Ω/km) |
||
| 26 | 3 | 7/0.16 | 0.48 | Lead-free semi-rigid PVC |
0.98 | Lead-free oil resistant PVC |
4.0 | 300 | 80 | 153 or more |
141 or less |
| 24 | 2 | 7/0.2 | 0.60 | Lead-free semi-rigid PVC |
1.14 | Lead-free oil resistant PVC |
4.2 | 300 | 80 | 153 or more |
90.3 or less |
| 3 | 4.3 | ||||||||||
| 4 | 4.6 | ||||||||||
