FA cable for fixing

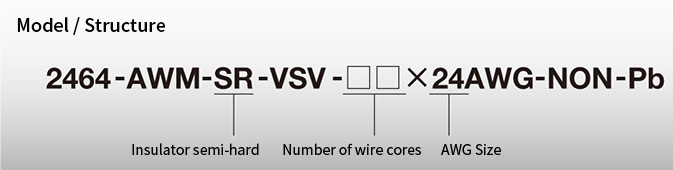

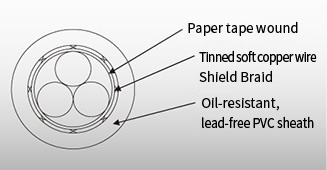

UL STYLE 2464, CSA TYPE AWMMulti core pair cables with braided shield (semi-rigid type)
UL style 2464, CSA type AWM: Multi core pair cables with braided shield (semi-rigid type)
Application
Shielded cable for electronic device wiring
Features
- UL, CSA certified cable
- UL VW-1, CSA FT1 flame retardant
- Uses oil-resistant vinyl material
Specification example
| Size(AWG) | Number of cores | Tinned annealed copper wire conductor | Insulator | Tinned annealed copper wire(mm) |
Sheath | Characteristic | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Composition(pcs/mm) | Outer diameter(mm) | Material | Outer diameter(mm) | Material | Outer diameter(mm) | Rated voltage(V) | Rated temperature(℃) | Insulation resistance15.6℃ (MΩ・ km) |
Conductor resistance20℃ (Ω/km) |
|||
| 24 | 2 | 7/0.2 | 0.60 | Semi-rigid lead-free PVC |
1.14 | 0.12 single braid |
Lead-free oil resistant PVC |
4.7 | 300 | 80 | 153 or more |
90.3 or less |
| 3 | 4.9 | |||||||||||
| 4 | 5.2 | |||||||||||
