FA cable for fixing
UL STYLE 2464, CSA TYPE AWMMulti pair cables with braided shield (semi-rigid type)

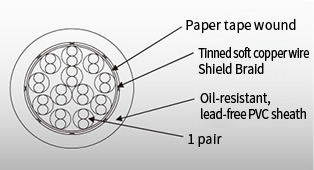

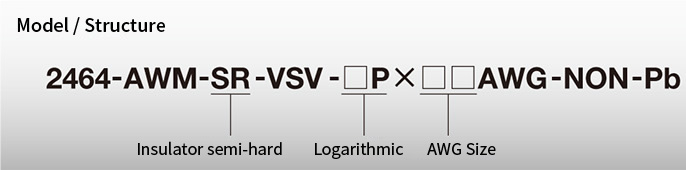

UL style 2464, CSA type AWM: Multi pair cables with braided shield (semi-rigid type)
Application
Shielded cable for electronic device wiring
Features
- UL, CSA certified cable
- UL VW-1, CSA FT1 flame retardant
- Uses oil-resistant vinyl material
Specification example
| Size(AWG) | logarithm | Tinned annealed copper wire conductor | Insulator | Tinned annealed copper wire(mm) |
Sheath | Characteristic | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Composition(pcs/mm) | Outer diameter(mm) | Material | Outer diameter(mm) | Material | Outer diameter(mm) | Rated voltage(V) | Rated temperature(℃) | Insulation resistance15.6℃ (MΩ・ km) |
Conductor resistance20℃ (Ω/km) |
|||
| 26 | 1P | 7/0.16 | 0.48 | Semi-rigid lead-free PVC |
0.98 | 0.08 single braid |
Lead-free oil resistant PVC |
4.5 | 300 | 80 | 153 or more |
141 or less |
| 2P | 5.9 | |||||||||||
| 3P | 6.4 | |||||||||||
| 4P | 6.8 | |||||||||||
| 5P | 7.4 | |||||||||||
| 6P | 7.9 | |||||||||||
| 7P | 7.9 | |||||||||||
| 8P | 9.1 | |||||||||||
| 10P | 9.5 | |||||||||||
| 12P | 10.1 | |||||||||||
| 15P | 11.1 | |||||||||||
| 18P | 0.10 single braid |
11.7 | ||||||||||
| 20P | 12.2 | |||||||||||
| 25P | 0.12 single braid |
13.9 | ||||||||||
| 30P | 14.2 | |||||||||||
| 24 | 3P | 7/0.2 | 0.60 | Semi-rigid lead-free PVC |
1.14 | 0.08 single braid |
Lead-free oil resistant PVC |
6.6 | 300 | 80 | 153 or more |
90.3 or less |
| 4P | 7.1 | |||||||||||
| 5P | 7.7 | |||||||||||
| 6P | 8.3 | |||||||||||
| 7P | 8.3 | |||||||||||
| 8P | 9.5 | |||||||||||
| 10P | 10.0 | |||||||||||
| 12P | 10.7 | |||||||||||
| 15P | 0.10 single braid |
12.0 | ||||||||||
| 18P | 12.5 | |||||||||||
| 20P | 0.12 single braid |
13.3 | ||||||||||
| 25P | 15.0 | |||||||||||
| 30P | 15.6 | |||||||||||
