UL STYLE 2517Multi core cables
UL style 2517: Multi core cables
Application
Cable for electronic device wiring
Features
- UL approved cable
- UL VW-1 flame retardant
- Uses oil-resistant vinyl material

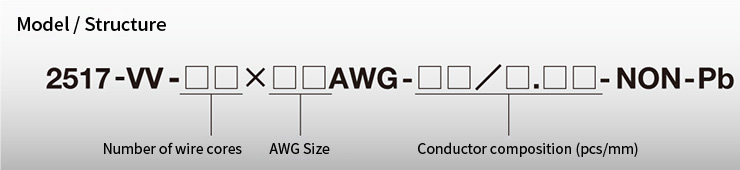

Specification example
| Size(AWG) | Number of cores | Conductor | Insulator | Sheath | Characteristic | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Composition(pcs/mm) | Outer diameter(mm) | Material | Outer diameter(mm) | Material | Outer diameter(mm) | Rated voltage(V) | Rated temperature(℃) | Insulation resistance15.6℃ (MΩ・ km) |
Conductor resistance20℃ (Ω/km) |
||
| 22 | 2 | 17/0.16 | 0.76 | Lead-free PVC |
2.36 | Lead-free oil resistant PVC |
6.6 | 300 | 105 | 50 or more |
60.4 or less |
| 3 | 7.0 | ||||||||||
| 4 | 7.7 | ||||||||||
| 5 | 8.4 | ||||||||||
| 7 | 9.1 | ||||||||||
| 12 | 11.5 | ||||||||||
| 20 | 2 | 26/0.16 | 0.95 | Lead-free PVC |
2.56 | Lead-free oil resistant PVC |
7.0 | 300 | 105 | 50 or more |
39.5 or less |
| 3 | 7.5 | ||||||||||
| 4 | 8.2 | ||||||||||
| 5 | 8.9 | ||||||||||
| 7 | 9.7 | ||||||||||
| 12 | 12.3 | ||||||||||
| 18 | 2 | 41/0.16 | 1.19 | Lead-free PVC |
2.80 | Lead-free oil resistant PVC |
7.5 | 300 | 105 | 50 or more |
25.0 or less |
| 3 | 8.0 | ||||||||||
| 4 | 8.7 | ||||||||||
| 5 | 9.6 | ||||||||||
| 7 | 10.5 | ||||||||||
| 12 | 13.5 | ||||||||||
