UL STYLE 2517 Multi core cables with braided shield
UL style 2517: Multi core cables with braided shield
Application
Shielded cable for electronic device wiring
Features
- UL approved cable
- UL VW-1 flame retardant
- Uses oil-resistant vinyl material

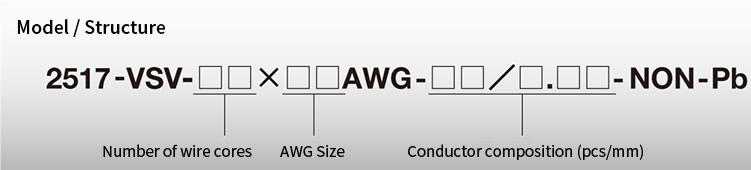

Specification example
| Size(AWG) | Number of cores | Tinned annealed copper wire conductor | Insulator | Tinned annealed copper wire(mm) |
Sheath | Characteristic | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Composition(pcs/mm) | Outer diameter(mm) | Material | Outer diameter(mm) | Material | Outer diameter(mm) | Rated voltage(V) | Rated temperature(℃) | Insulation resistance15.6℃ (MΩ・ km) |
Conductor resistance20℃ (Ω/km) |
|||
| 22 | 2 | 17/0.16 | 0.76 | Lead-free PVC | 2.36 | 0.12 single braid |
Lead-free oil resistant PVC |
7.2 | 300 | 105 | 50 or more |
60.4 or less |
| 3 | 7.6 | |||||||||||
| 4 | 8.3 | |||||||||||
| 5 | 9.0 | |||||||||||
| 7 | 9.7 | |||||||||||
| 12 | 12.1 | |||||||||||
| 20 | 2 | 26/0.16 | 0.95 | Lead-free PVC | 2.56 | 0.12 single braid |
Lead-free oil resistant PVC |
7.6 | 300 | 105 | 50 or more |
39.5 or less |
| 3 | 8.1 | |||||||||||
| 4 | 8.8 | |||||||||||
| 5 | 9.5 | |||||||||||
| 7 | 10.3 | |||||||||||
| 12 | 12.9 | |||||||||||
| 18 | 2 | 41/0.16 | 1.19 | Lead-free PVC | 3.15 | 0.12 single braid |
Lead-free oil resistant PVC |
8.9 | 300 | 105 | 50 or more |
25.0 or less |
| 3 | 9.4 | |||||||||||
| 4 | 10.2 | |||||||||||
| 5 | 11.2 | |||||||||||
| 7 | 12.2 | |||||||||||
| 12 | 15.6 | |||||||||||
