UL STYLE 2501 Multi core cables with braided shield
UL style 2501: Multi core cables with braided shield
Application
Shielded cable for electronic device wiring
Features
- UL approved cable
- UL VW-1 flame retardant
- Uses oil-resistant vinyl material

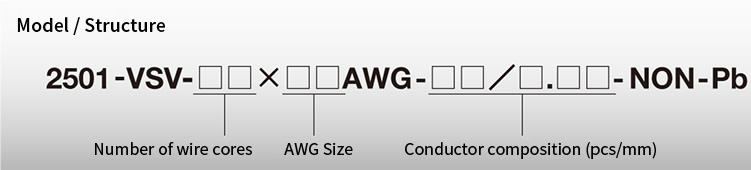

Specification example
| Size(AWG) | Number of cores | Tinned annealed copper wire conductor | Insulator | Tinned annealed copper wire(mm) |
Sheath | Characteristic | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Composition(pcs/mm) | Outer diameter(mm) | Material | Outer diameter(mm) | Material | Outer diameter(mm) | Rated voltage(V) | Rated temperature(℃) | Insulation resistance15.6℃ (MΩ・ km) |
Conductor resistance20℃ (Ω/km) |
|||
| 18 | 2 | 41/0.16 | 1.19 | Lead-free PVC |
2.80 | 0.12 single braid |
Lead-free oil resistant PVC |
9.7 | 600 | 105 | 50 or more |
25.0 or less |
| 3 | 10.1 | |||||||||||
| 4 | 11.0 | |||||||||||
| 16 | 2 | 54/0.18 | 1.53 | Lead-free PVC |
3.15 | 0.12 single braid |
Lead-free oil resistant PVC |
10.4 | 600 | 105 | 50 or more |
15.0 or less |
| 3 | 10.9 | |||||||||||
| 4 | 11.8 | |||||||||||
| 14 | 2 | 41/0.26 | 1.93 | Lead-free PVC |
3.57 | 0.12 single braid |
Lead-free oil resistant PVC |
11.3 | 600 | 105 | 50 or more |
9.39 or less |
| 3 | 11.9 | |||||||||||
| 4 | 12.8 | |||||||||||
| 12 | 2 | 65/0.26 | 2.43 | Lead-free PVC |
4.15 | 0.12 single braid |
Lead-free oil resistant PVC |
12.5 | 600 | 105 | 50 or more |
5.92 or less |
| 3 | 13.1 | |||||||||||
| 4 | 14.3 | |||||||||||
| 10 | 2 | 66/0.32 | 3.02 | Lead-free PVC |
4.80 | 0.12 single braid |
Lead-free oil resistant PVC |
13.9 | 600 | 105 | 50 or more |
3.85 or less |
| 3 | 14.7 | |||||||||||
| 4 | 16.0 | |||||||||||
