FA cable for moving parts
UL STYLE 20276Multi core cables
UL style 20276: Multi core cables
Application
Cable for electronic device wiring
Features
- UL approved cable
- UL VW-1 flame retardant
- Uses oil-resistant vinyl material

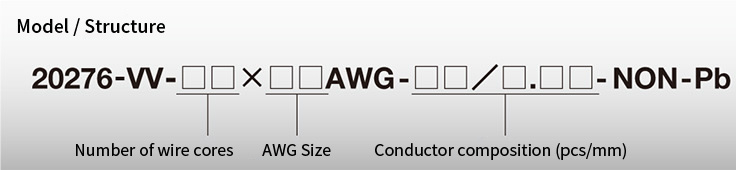

Specification example
Size(AWG) | Number of cores | Tinned annealed copper wire conductor | Insulator | Sheath | Characteristic | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Composition(pcs/mm) | Outer diameter(mm) | Material | Outer diameter(mm) | Material | Outer diameter(mm) | Rated voltage(V) | Rated temperature(℃) | Insulation resistance15.6℃ (MΩ・ km) |
Conductor resistance20℃ (Ω/km) |
||
24 | 2 | 50/0.08 | 0.66 | Lead-free PVC |
1.06 | Lead-free oil resistant PVC |
4.1 | 30 | 80 | 10 or more |
85.1 or less |
3 | 4.2 | ||||||||||
4 | 4.5 | ||||||||||
5 | 4.8 | ||||||||||
6 | 5.1 | ||||||||||
8 | 6.0 | ||||||||||
10 | 6.7 | ||||||||||
12 | |||||||||||
16 | 7.3 | ||||||||||
20 | 8.0 | ||||||||||
30 | 9.7 | ||||||||||
40 | 11.5 | ||||||||||
22 | 2 | 78/0.08 | 0.82 | Lead-free PVC |
1.22 | Lead-free oil resistant PVC |
4.4 | 30 | 80 | 10 or more |
55.5 or less |
3 | 4.6 | ||||||||||
4 | 4.9 | ||||||||||
5 | 5.5 | ||||||||||
6 | 5.9 | ||||||||||
8 | 6.6 | ||||||||||
10 | 7.4 | ||||||||||
12 | 7.3 | ||||||||||
16 | 8.2 | ||||||||||
20 | 9.0 | ||||||||||
30 | 11.0 | ||||||||||
40 | 13.0 | ||||||||||
20 | 2 | 117/0.08 | 1.00 | Lead-free PVC |
1.46 | Lead-free oil resistant PVC |
4.9 | 30 | 80 | 5 or more |
36.7 or less |
3 | 5.1 | ||||||||||
4 | 5.7 | ||||||||||
5 | 6.1 | ||||||||||
6 | 6.9 | ||||||||||
8 | 7.7 | ||||||||||
10 | 8.5 | ||||||||||
12 | |||||||||||
16 | 9.3 | ||||||||||
20 | 10.4 | ||||||||||
24 | 11.3 | ||||||||||
30 | 12.7 | ||||||||||
40 | 15.1 |
