FA cable for moving parts
UL STYLE 20276Multi pair cables with braided shield
UL style 20276: Multi pair cables with braided shield
Application
Shielded cable for electronic device wiring
Features
- UL approved robot cable
- UL VW-1 flame retardant
- Uses oil-resistant vinyl material

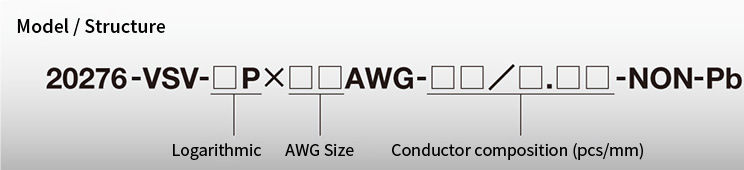

Specification example
| Size(AWG) | logarithm | Tinned annealed copper wire conductor | Insulator | Tinned annealed copper wire(mm) |
Sheath | Characteristic | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Composition(pcs/mm) | Outer diameter(mm) | Material | Outer diameter(mm) | Material | Outer diameter(mm) | Rated voltage(V) | Rated temperature(℃) | Insulation resistance15.6℃ (MΩ・ km) |
Conductor resistance20℃ (Ω/km) |
|||
| 26 | 1P | 30/0.08 | 0.51 | Lead-free PVC |
0.90 | 0.08 single braid |
Lead-free oil resistant PVC |
4.2 | 30 | 80 | 10 or more |
143 or less |
| 2P | 5.6 | |||||||||||
| 3P | 6.3 | |||||||||||
| 4P | 6.6 | |||||||||||
| 5P | 7.1 | |||||||||||
| 6P | 7.6 | |||||||||||
| 7P | 8.2 | |||||||||||
| 8P | 0.10 single braid |
8.8 | ||||||||||
| 10P | 9.5 | |||||||||||
| 12P | 9.9 | |||||||||||
| 15P | 10.9 | |||||||||||
| 20P | 12.1 | |||||||||||
| 25P | 13.4 | |||||||||||
| 24 | 1P | 50/0.08 | 0.66 | Lead-free PVC |
1.06 | 0.08 single braid |
Lead-free oil resistant PVC |
4.7 | 30 | 80 | 10 or more |
85.1 or less |
| 2P | 6.4 | |||||||||||
| 3P | 7.1 | |||||||||||
| 4P | 7.6 | |||||||||||
| 5P | 8.3 | |||||||||||
| 6P | 9.0 | |||||||||||
| 7P | 9.5 | |||||||||||
| 8P | 0.10 single braid |
10.5 | ||||||||||
| 10P | 11.0 | |||||||||||
| 12P | 12.0 | |||||||||||
| 15P | 13.0 | |||||||||||
| 20P | 14.5 | |||||||||||
| 25P | 16.0 | |||||||||||
| 22 | 1P | 78/0.08 | 0.82 | Lead-free PVC |
1.22 | 0.08 single braid |
Lead-free oil resistant PVC |
4.7 | 30 | 80 | 10 or more |
55.5 or less |
| 2P | 6.9 | |||||||||||
| 3P | 7.5 | |||||||||||
| 4P | 8.1 | |||||||||||
| 5P | 0.10 single braid |
9.0 | ||||||||||
| 6P | 9.7 | |||||||||||
| 7P | 0.12 single braid |
10.6 | ||||||||||
| 8P | 11.3 | |||||||||||
| 10P | 0.14 single braid |
12.3 | ||||||||||
| 12P | 13.0 | |||||||||||
| 15P | 14.4 | |||||||||||
| 20P | 15.8 | |||||||||||
| 25P | 0.16 single braid |
17.6 | ||||||||||
| 20 | 1P | 117/0.08 | 1.00 | Lead-free PVC |
1.46 | 0.08 single braid |
Lead-free oil resistant PVC |
5.3 | 30 | 80 | 10 or more |
36.7 or less |
| 2P | 7.8 | |||||||||||
| 3P | 8.5 | |||||||||||
| 4P | 9.3 | |||||||||||
| 5P | 0.10 single braid |
10.2 | ||||||||||
| 6P | 11.1 | |||||||||||
| 8P | 0.12 single braid |
12.9 | ||||||||||
| 10P | 0.14 single braid |
14.4 | ||||||||||
| 15P | 0.16 single braid |
16.5 | ||||||||||
| 20P | 18.5 | |||||||||||
| 25P | 0.18 single braid |
20.5 | ||||||||||
