FA cable for moving parts
UL STYLE 2517Multi core cables
UL style 2517: Multi core cables
Application
Cable for electronic device wiring
Features
- UL approved robot cable
- UL VW-1 flame retardant
- Uses oil-resistant vinyl material

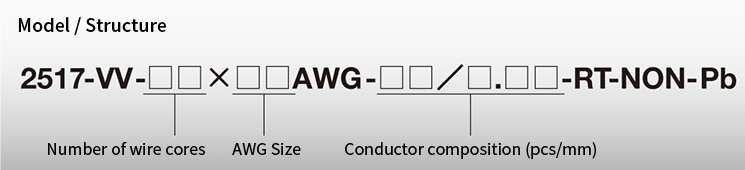

Specification example
| Size(AWG) | Number of cores | Tinned annealed copper wire conductor | Insulator | Sheath | Characteristic | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Composition(pcs/mm) | Outer diameter(mm) | Material | Outer diameter(mm) | Material | Outer diameter(mm) | Rated voltage(V) | Rated temperature(℃) | Insulation resistance15.6℃ (MΩ・ km) |
Conductor resistance20℃ (Ω/km) |
||
| 22 | 2 | 78/0.08 | 0.82 | Lead-free PVC |
1.72 | Lead-free oil resistant PVC |
5.3 | 300 | 105 | 10 or more |
55.5 or less |
| 3 | 5.6 | ||||||||||
| 4 | 6.1 | ||||||||||
| 6 | 6.2 | ||||||||||
| 8 | 8.2 | ||||||||||
| 10 | 9.3 | ||||||||||
| 12 | 9.1 | ||||||||||
| 16 | 10.2 | ||||||||||
| 20 | 11.2 | ||||||||||
| 30 | 13.3 | ||||||||||
| 20 | 2 | 117/0.08 | 1.00 | Lead-free PVC |
1.90 | Lead-free oil resistant PVC |
5.7 | 300 | 105 | 10 or more |
36.7 or less |
| 3 | 6.0 | ||||||||||
| 4 | 6.5 | ||||||||||
| 6 | 7.7 | ||||||||||
| 8 | 8.9 | ||||||||||
| 10 | 10.0 | ||||||||||
| 12 | 9.9 | ||||||||||
| 16 | 11.0 | ||||||||||
| 20 | 12.2 | ||||||||||
| 30 | 14.7 | ||||||||||
| 18 | 2 | 183/0.08 | 1.25 | Lead-free PVC |
2.15 | Lead-free oil resistant PVC |
6.2 | 300 | 105 | 10 or more |
23.5 or less |
| 3 | 6.5 | ||||||||||
| 4 | 7.1 | ||||||||||
| 6 | 8.5 | ||||||||||
| 8 | 9.8 | ||||||||||
| 10 | 11.2 | ||||||||||
| 12 | 11.0 | ||||||||||
| 16 | 12.4 | ||||||||||
| 20 | 13.7 | ||||||||||
| 30 | 16.5 | ||||||||||
