FA cable for moving parts
UL STYLE 2517Multi core cables with braided shield
UL style 2517: Multi core cables with braided shield
Application
Shielded cable for electronic device wiring
Features
- UL approved robot cable
- UL VW-1 flame retardant
- Uses oil-resistant vinyl material

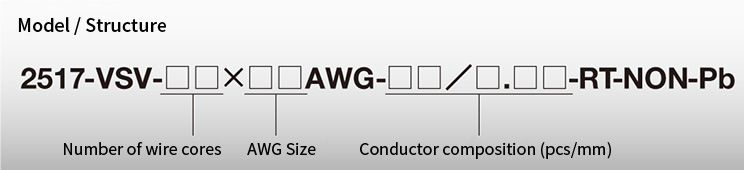

Specification example
| Size(AWG) | Number of cores | Tinned annealed copper wire conductor | Insulator | Tinned annealed copper wire(mm) |
Sheath | Characteristic | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Composition(pcs/mm) | Outer diameter(mm) | Material | Outer diameter(mm) | Material | Outer diameter(mm) | Rated voltage(V) | Rated temperature(℃) | Insulation resistance15.6℃ (MΩ・ km) |
Conductor resistance20℃ (Ω/km) |
|||
| 22 | 2 | 78/0.08 | 0.82 | Lead-free PVC |
1.72 | 0.12 single braid |
Lead-free oil resistant PVC |
5.9 | 300 | 105 | 10 or more |
55.5 or less |
| 3 | 6.2 | |||||||||||
| 4 | 6.7 | |||||||||||
| 6 | 6.8 | |||||||||||
| 8 | 8.8 | |||||||||||
| 10 | 9.9 | |||||||||||
| 12 | 9.7 | |||||||||||
| 16 | 10.8 | |||||||||||
| 20 | 11.8 | |||||||||||
| 30 | 13.9 | |||||||||||
| 20 | 2 | 117/0.08 | 1.00 | Lead-free PVC |
1.90 | 0.12 single braid |
Lead-free oil resistant PVC |
6.3 | 300 | 105 | 10 or more |
36.7 or less |
| 3 | 6.6 | |||||||||||
| 4 | 7.1 | |||||||||||
| 6 | 8.3 | |||||||||||
| 8 | 9.5 | |||||||||||
| 10 | 10.6 | |||||||||||
| 12 | 10.5 | |||||||||||
| 16 | 11.6 | |||||||||||
| 20 | 13.0 | |||||||||||
| 30 | 15.3 | |||||||||||
| 18 | 2 | 183/0.08 | 1.25 | Lead-free PVC |
2.15 | 0.12 single braid |
Lead-free oil resistant PVC |
6.8 | 300 | 105 | 10 or more |
23.5 or less |
| 3 | 7.1 | |||||||||||
| 4 | 7.7 | |||||||||||
| 6 | 9.1 | |||||||||||
| 8 | 10.4 | |||||||||||
| 10 | 11.8 | |||||||||||
| 12 | 11.6 | |||||||||||
| 16 | 13.0 | |||||||||||
| 20 | 14.3 | |||||||||||
| 30 | 17.0 | |||||||||||
